Product Specifications
Prod Model: |
LAT9401E |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tyre Specifications: |
1100r20-18/12r22.5-18 |
Landing Leg: |
28ton |
No. Of The Axles: |
3 |
Axle-Load: |
23900 Kg |
Port: |
Qingdao/Tianjin |
Type: |
Axle |
Towing Pin Material: |
Carbon Steel |
Impeller Type: |
Closed Type |
Hook Type: |
Double |
Universal Joint Type: |
Rigid Universal Joint |
Brake Pad Material: |
Semimetal |
Towing Pin Type: |
Mushroom Type |
Differential Gear Type: |
Gear Type |
Independent Suspension Type: |
Cross Arm Type |
Certification: |
BV Wmi |
Towing Pin Diameter: |
50mm 90mm |
Axle Number: |
3 |
Tire Number: |
12 |
Product Description

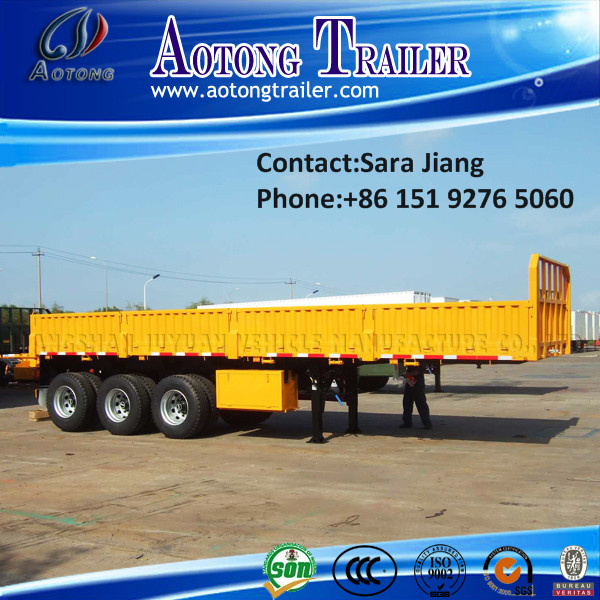

35-50tons Tri-Axle Heavy Duty Cargo Semi Truck Trailer/Utility Trailer With Side Wall (Flatbed Optional)
Our advantages:
1. Model: LAT9401E
2. More than 12 years professional manufacturer experience
3. CCC ISO9001 agreement
4. Be designed according to your requirements
5. Small order can be accepted
6. Mean beam12 month quality guarantee term, easily damaged parts warranty lifetime.
7. We accept 100% inspection, welcome to our factory at any time
8. Professional configuration and installation instructions provided.
Discription:
The platform is step-wise, and the section of the two longitudinal beams appears a " I" shape makes the chassis a very strong unit with a high stiffness and intensity. The step-wise design ensures the stableness of the transportation.The max height of the rear guard from ground is 550mm, and the cross section is 140mmX55mm.
The flatbed semi truck trailer is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, heavy duty and bulk cargo, power plant equipment or machine, and all sorts of steel products.
Photos
Company Information:
Qingdao Juyuan International Trading Co., Ltd. is an industry & trade company, with a factory, Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd.
Having been in the field of trailer manufacture since 2001, we are one of the companies which first gained Compulsory Product Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, and ISO9001 certificate.
With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia.
Now we provide more than 60 types of trailers. Our production can be done according to your requirements.
Pls contact the supplier for details, good quotation and further product information will be provided as required.
Product Specifications |
Model number | LAT9401E |
Rated Load | 45000 kg |
Tare Weight | 7850 kg |
Wheel Base | 6810+1310+1310(mm) |
TyreSpecifications | 1100R20-12/12R22.5-12 |
No. Of the Tyres | 12 |
Axle Brand | FUWA (BPW optional) |
No. Of the Axles | 3 |
Axle-load | 23900 kg |
King Pin | 50#/90# |
Landing Leg | 28ton |
Pieces of leaf-spring | 10 (8) |
Suspension | Independent stamping steel rigid suspension ( air suspension) |
Departure Angle | 12.6 |
Front/Rear Overhang | 2450 mm |
Outside Dimensions (LxWxH) | 13000X2500X2680 (mm) |
Interior Dimensions (LxWxH) | 12800X2340X600, 500 (mm) |
Material of the Main Beam | Q345B manganese plates, automatic submerged arc welded |
Brake System | Dual line braking system/ABS |
Brake Air Chamber | Six double chamber |
Electrical | 24V 7 ways(7 wire harness) |
Usage | Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. |
Other Descriptions | The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes. The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flange plates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding. Frame using peen-forming processing. |
Characteristics | The platform is step-wise, and the section of the two longitudinal beams appears a " I" shape makes the chassis a very strong unit with a high stiffness and intensity. The step-wise design ensures the stableness of the transportation. |
Other Specifications | The max height of the rear guard from ground is 550mm, and the cross section is 180mmX60mm. |
Qingdao Juyuan International Trading Co., Ltd. is an industry & trade company, with a factory, Liangshan Juyuan Special Vehicle Manufacturing Co., Ltd.
Covering a total area of 220, 000 square meters, our factory is located in Liangshan, China, with 460 workers (16 people with senior title and 118 highly-trained workers). Having been in the field of trailer manufacture since 2001, we are one of the companies which first gained Compulsory Product Certificate (CCC Certificate) from the Ministry of Technology and Information of P. R. C, and ISO9001 certificate.
With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are enjoying high popularity in America, the Middle East, Africa, and Russia. Now we provide more than 60 types of trailers. Our production can be done according to your requirements.
As an OEM in the line of tires, our PCR, UHP, TBR, LTR, and OTR tires have been sold in many markets, such as Europe, America, the Middle East, Africa and so on.
With principle of "high quality-4S", business between us will achieve win-win situation. Please do not hesitate and feel free to contact us.
