Product Specifications
| Prod Model: |
DMW-22A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
1.68kw |
| Air Capacity: |
112L/Min |
| Max Pressure: |
8bar |
| Adjusted Pressure: |
0~6bar |
| Air Tank: |
80L |
Product Description

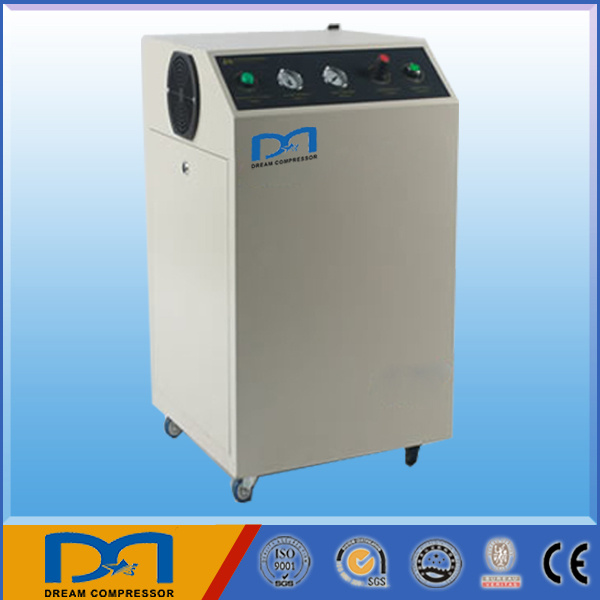

0~8bar electric mini portable oil free dental Air compressor
1.Newly oil free/oilless lubrication design,make sure higher purity compression air.
2.Compact design,the appearance of fashion generous, reduce the precious space.
3.Advanced and high efficiency controller,make sure machine running smoothly and user's safety.Overload protection,the motor can cut off automatically if the machine has the something abnormally.
4.Energy saving motor design,convenient to the user's normal using.
Technical data for mini portable oil free piston airbrush Air compressor
| Model | Power (Kw) | Voltage (V/Hz) | Air delivery capacity (L/min) |
Pressure
(Mpa) |
Adjusted Pressure (Mpa) | Air Tank (L) | Noise (db) |
Weight
(Kg) |
Dimension (mm) |
| DMW-60 | 0.55 | 220/50 | 40 | 0.8 | 0-0.6 | 6 | 60 | 15 | 400x340x500 |
| DMW-100 | 0.55 | 220/50 | 40 | 0.8 | 0-0.6 | 25 | 58 | 21 | 400x400x540 |
| DMW-150 | 0.84 | 220/50 | 56 | 0.8 | 0-0.6 | 40 | 62 | 29 | 400x400x700 |
| DMW-200 | 1.24 | 220/50 | 103 | 0.8 | 0-0.6 | 50 | 65 | 40 | 400*400*860 |
| DMW-300 | 1.68 | 220/50 | 112 | 0.8 | 0-0.6 | 80 | 66 | 65 | 750x430x730 |
| DMW-400 | 2.48 | 220/50 | 206 | 0.8 | 0-0.6 | 80 | 68 | 80 | 750x460x810 |
| DMW-600 | 3.72 | 220/50 | 309 | 0.8 | 0-0.6 | 100 | 72 | 106 | 1040x470x820 |
