Product Specifications
| Prod Model: |
TB-Q326 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Tb-Q326 |
| Productivity: |
0.6-1.2 T/H |
| Feeding Volume: |
200kgs |
| The Largest Single Weight: |
10kgs |
| Plate Diameter: |
650mm |
| Effective Volume: |
0.25m3 |
| Shoting Volume: |
100kg/Min |
| Total Ventilation: |
2200m3/H |
| Power Supply: |
380v, 50Hz |
| Total Power: |
12.6kw |
Product Description

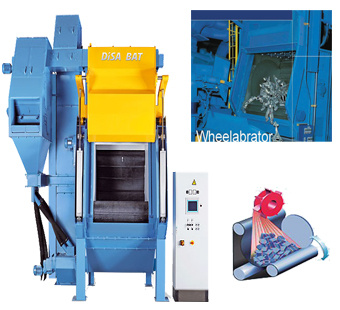

Shot-blasting Machine
Apron type shot blast machine suitable for cleaning or reinforcing various medium and large batch forged piece, casting and sheet metal parts but also more suitable forgings surface after rust removal and increasing adhesive force of spraying.
Model: TB-Q326
Productivity(T/h): 0.6-1.2
Feeding Volume(KG): 200
The largest single weight(KG): 10
Plate Diameter(MM): 600
Effective Volume(M3): 0.25
Shoting Volume(KG/MN): 100
Total Power(KW): 12.6
|
Model |
TB-Q324 |
TB-Q326 |
TB-Q3210 |
|
Productivity(T/h) |
0.2-0.67 |
0.6-1.2 |
3.0-5.0 |
|
Feeding Volume(kg) |
100 |
200 |
800 |
|
The largest single weight(kg) |
6 |
10 |
150 |
|
Plate Diameter(mm) |
400 |
600 |
1000 |
|
Effective Volume(m3) |
0.15 |
0.25 |
0.4 |
|
Shoting Volume (kg/min) |
80 |
100 |
250 |
|
Total Power(KW) |
5.84 |
12.6 |
32.6 |
