Product Specifications
| Prod Model: |
MC-ENT-3202-DM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mainframe: |
Marble Board |
| Sprayer: |
Copper |
| Suction Device: |
Copper |
| Waste Bottle: |
2500cc |
| Projection Lamp & Balance Arm: |
(Illuminate≥1*104 Lux |
| Tray: |
Stainless Steel |
| CCD Camera: |
540TV/Line |
| Liquid Medicine Bottle: |
Glasses |
| X-ray Viewer: |
X Ray Screen |
| Work Humidity: |
Less Than 8o% |
| Certification: |
ISO13485 |
| Type: |
Microscope |
| Kind: |
Microscope |
Product Description

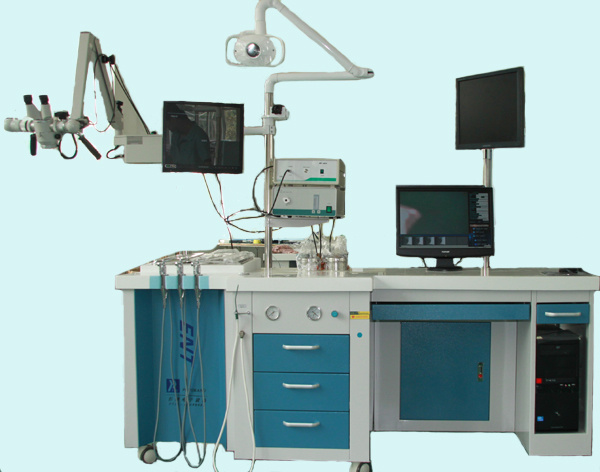

ENT unit with Imaging System & Microscope
Model: MC-ENT-3202-DM (Completed Set)
Normal running conditions:
1. Temperature of Environment: 10ºC~45ºC
2. Relative Humidity≤80%
3. High Atmospheric Pressure: 86~106 kPa
4. Power: 230±10VAC, 50-60Hz, 1000VA
Technical Parameter:
1) Spray rod, positive pressure of blow device:
0.1Mpa-0.15Mpa; (Adjusting)
2) Negative pressure of suction lube:
≥0.07Mpa; (Adjusting)
3) Suction vacuum pump: 370W;
000CC main suction apparatus 1pc
4) Compressor pump: 80W 1 pc
5) Power: 230±10VAC, 50-60Hz, 1000VA
6) Preheated anti-fog apparatus: 300W
Configuration:
| No | Name | Quantity | Remark |
| 1 | Mainframe | 1pc | Marble board |
| 2 | Sprayer | Curved 1pc
Straight 2pcs | Copper |
| 3 | Suction device | 1pc | Copper |
| 4 | Waste bottle | 1pc | 2500cc |
| 5 | Projection lamp & balance arm | 1pc≥50W | (illuminate≥1*104 LUX |
| 6 | tray | 2pcs | Stainless steel |
| 7 | Cotton jar | 4pcs | Stainless steel |
| 8 | Anti fog heater | 1set |
|
| 9 | Liquid medicine bottle | 6pcs | Glasses |
| 10 | Endoscope | 2pcs | Sinoscope & Laryngoscope |
| 11 | CCD camera | 1 set | 540TV/line |
| 12 | Cold light source | 1 set | Xenon light 250W |
| 13 | Computer | 1 set | With English software, |
| 14 | Foot captor | 1 pc | For PC |
| 15 | LCD Display | 2 sets | 19'' LCD |
| 16 | Medical Monitor | 1 set | LCD 17' Samsung |
| 17 | Color printer | 1set | HP |
| 18 | X-ray viewer | 1set | X ray screen |
| 19 | Microscope | 1 set | Microscope |
| 20 | Patient Chair | 1 set | Patient Chair |
CCD Camera
TECHENICAL PARAMETERS for CCD Camera:
| Item | CCD camera PK-100 |
| Camera | 1/3''D |
| Pelx H×V | NTSC: 768H×494V 410,000 |
| PAL: 752H×582V 440,000 |
| Horizontal definition | 580TV lines |
| Electronic Shutter | NTSC: 1/60~1/100,000 sec |
| PAL: 1/50~1/100,000 sec |
| Minimum illumination | 0.5 LUX |
| Synchronization manner | Inner-synchronization |
| Signal-to-Noise | More than 48dB |
| Plus control | Automatic |
| Video output | 1.0Vp-p, 75Ωcomplex signal |
| Adapter(Either) | OES or rigid |
| Connection Cable | 2.5m normal. And special length needs order. |
| Power | AC220+10% |
| Power Consumption Standard | DC12V (±10%), Max. 160mA |
| Dimension(width" height" depth) | 304mm×95mm×310mm |
| Operating temperature | 14 F ~ 122 F (-10 C ~ +50 C) |
| Storage temperature | -4 F ~ 140 F (-20 C ~ +60 C) |
| Work humidity | Less than 8o% |
| White Balance | manual |
XENON Cold Light Source 250W (Fiber optic cable 2m)
1. Muti-specifications light.
2. Adjust brighting
3. Stable light output
4. long bulb life.
5. 2000mm fibre cable
TECHENICAL PARAMETERS for XENON Cold Light Source:
1. Voltage of power supply: 220V 50Hz (Fuse: 5A)
2. Input power: 470VA
3. J. equipment type: 1 BF
4. Power of xenon lamp: 250 W
5. Effective luminance of xenon lamp: ≥5800,000LX
6. Xenon lamp color temperature: 5600K
7. Noise: <55dB
8. Chassis temperature:<55ºC
9. Under normal operating temperature of the continuous
Endoscope
Sinuscope, Otoscope, Laryngoscope.
