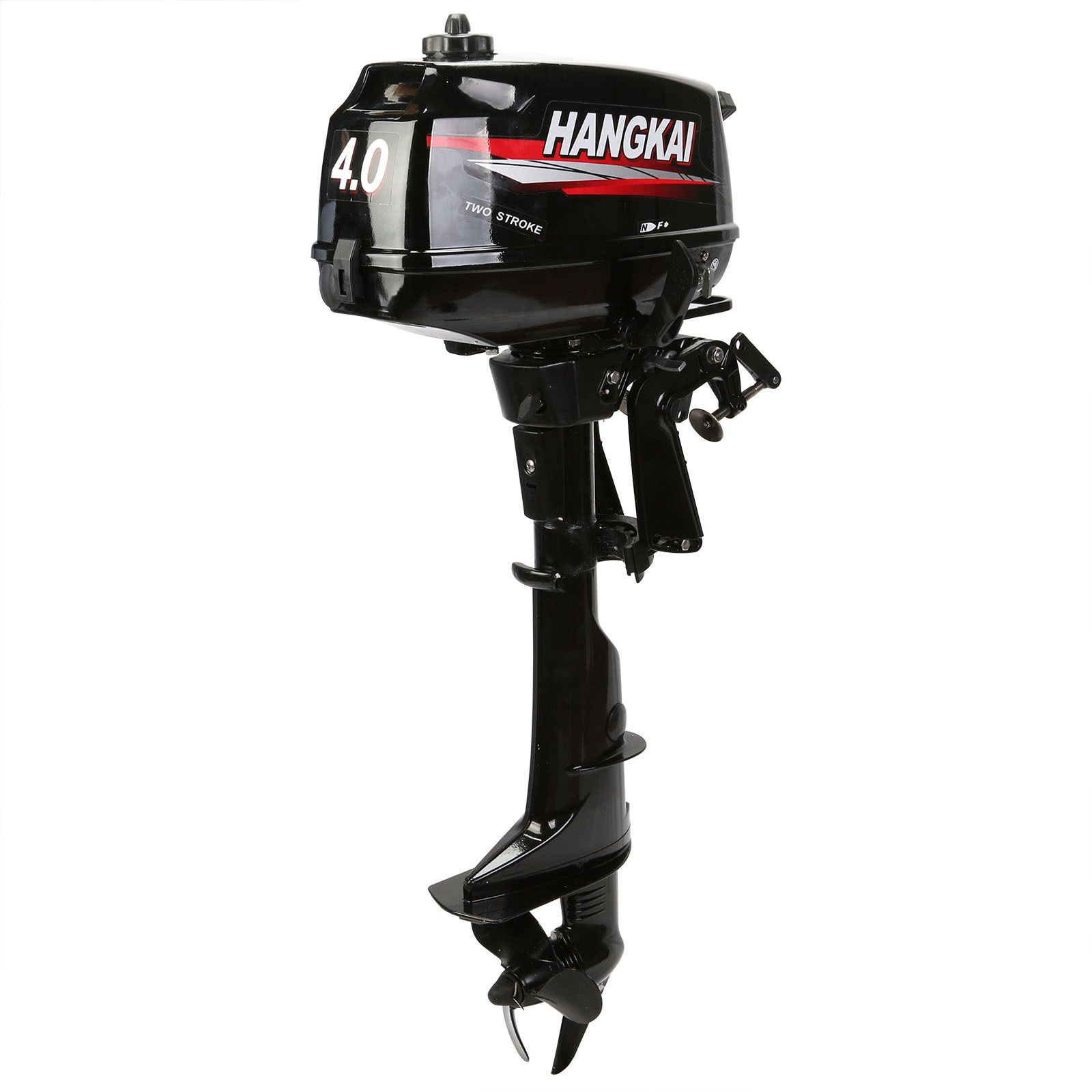

Hangkai 4.0HP 2 Stroke Outboard Motor Boat Engine for Inflatable Boat

Name: Hangkai 4.0HP 2 Stroke Outboard Motor Boat Engine for Inflatable Boat
Brand: china-manufacturer-directory.com
SKU: 773384225
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	US $ 1-300/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	M4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Trype:	Outboard
Usage:	Boat
Certification:	CE, ISO9001
Engine Capacity:	1-2L
Transom Height:	440mm
Fuel:	Gasoline Engine

Product Description

HANGKAI 4.0HP 2 stroke Outboard Motor Boat Engine for Inflatable Boat

This 4.0hp HANGKAI Outboard Motor 2 stroke short shaft outboard is perfect for a dinghy, tender, canoe or sailboat. Economical, compact and portable, providing you the most power in a small parcel. The lightweight HANGKAI 4.0hp outboard has a great horsepower to weight ratio and other features.

Features:

With superior engine water cooling system to improve engine performance.
Heavy duty aluminum cast starter for increased durability and reliability.
Easy maneuverability and safety.
Easy starting and improved performance.
Can provid you the most power in a small parcel.
Convenient 1.5L integral fuel tank
Steering friction adjustment and tiller attrition knob adjustment
Lift/Tilt feature for shallow water operation and convenience
Heavy duty lightweight aluminum cast propeller is standard equipment
Through the prop exhaust outlet for decreased noise and pollutants
Start-In-Gear protection/clutch feature prohibits prop rotation while idling
Superior outboard anti corrosion system and anodes for increased durability
Perfect for inflatables,fishing boats, sailboats and small yachts

Specifiation:

Model: HANGKAI M4

1)Max. Output: 2.9kw /4.0HP

2)Full throttle operating range (rpm): 4200-5300

3)Stroke: 2

4)Cylinder:1

5)Displacement (ml): 74.6CC

6)Bore×Stroke (mm): 47×43

7)Dimensions (L×W× H) mm: 450×300×960

8)Transom height:44cm

9)Starting system: Manual

10)Control system: manual tilt

11)Gear shift position: F-N

12)Gear ratio:2.08(27:13)

13)Propeller options: 7.8"x8"

14) Recommended Fuel: # 93 Lead-free gasoline

15)Recommended Gear Oil: Professional Gear Oil

16)Lubrication System: Mixed fuel & oil (30/50:1)

MODELS

M3.5

M3.6

M9.8

M9.9

M15(S)

M15(L)

Max.Output kw(hp)

1.5(2)

2.5(3.5)

2.6(3.6)

2.9(4)

3.7(5)

4.4(6)

7.2(9.8)

7.3(9.9)

11.0(15)

Overall L×W×H(mm)

365×220×920

450×300×960

490×320×1060

793x320x996

873×332×1040

873x332x1040

873×332×1167

Transom Plate Height (mm)

420

440

448

440

567

Full throttle operating range (r/min)

4000-5000

4000-5500

4200-5300

4200-5200

4500-5500

Engine stroke

Cylinder

Displacement
(cc)

74.6

102

169

246

Bore×Stroke (mm)

40×33

44×33

47×43

55×43

50x43

56×50

56x50

56×50

N.W./G.W.(kgs)

9.56/12.18

9.64/12.06

13.46/17.58

20.74/25.9

26/33

36.6/47.5

38.6/49.5

Packing size (cm)

95.5*42*31

95*42*28

102*47*40

112*62*38.5

108x67x40

119*71*38.5

133*71*38.5

Gear Ratio

2.08(27:13)

Gear Positions

Clutch Control

F-N

F-N-R

Trim and tilt system

Manual Tilt

Ignition System

CDI

Cooling System

Water-cooling

Starting System

Manual start

Control System

Tiller control

Mixing ratio

Fuel: Oil = 50:1

Standard fuel tank capacity

Within 1.3L

Within 1.5L

Within 1.4L

Within 2.5L

24L

Optional fuel tank capacity

12L

Recommended Propeller range

3-7 1/4"×5"

3-7 1/4"×6"

3-7.8"×8"

3-8.9"x8.5"

3-9 1/4"×8"

Recommended fuel

#93 Lead-free gasoline

Recommeded Gear oil

Hypoid gear oil SAE #90

- Superior engine water cooling system forimproved engine performance

- Heavy duty aluminum cast starter for increased durability and reliability

-Twist grip throttle control for easy maneuverability and safety

- Standard CDI ignition system for easy starting andimproved performance

- Special engine design for increased power, performance and durability

-Economical, compact and portable, providing you the most power in a small parcel.

-Superior outboard anti corrosion system and anodes for increased durability

- Start-In-Gear protection/clutch feature prohibits prop rotation while idling

-Durable cast aluminum construction for superior corrosion protection

- Through the prop exhaust outlet for decreased noise and pollutants

- Heavy duty lightweight aluminum cast propeller is standard equipment

- Lift/Tilt feature for shallow water operation and convenience

- Steering friction adjustment and tiller attrition knob adjustment

-perfect for inflatables, fishing boats, sailboats andsmall yachts.

-Convenient 1.5L integral fuel tank

We are the First Outboard Motor Manufacturer in China. We professionally produce gasoline outboard motors, electric trolling motors and inflatable boats. Our company has been established since 2003, all products are really popular in different market, since it has perfect design, good quality, reasonable prices and professional after-service. We wish to cooperate with you to get success in near future.

We can provide different gasoline outboard engine horsepower 2HP/3.5HP/3.6HP/4.0HP/5.0HP/6.0HP/9.9HP/15HP/30HP/40HP 2-stroke and 4-stroke, And different thrust electric trolling motors from 32lbs to 86lbs.

We also manufacture inflatable boats, rib boats, fishing boats, Sup board, Kayak so on. We always use high quality PVC fabric to produce inflatable boats and each boat passed strict examination.

Now our products are selling well to Europe, Russia, America, Australia, Korea, Asia etc more than 30 countries. You'll feel " value for money" about all our products. Welcome to visit us~!
