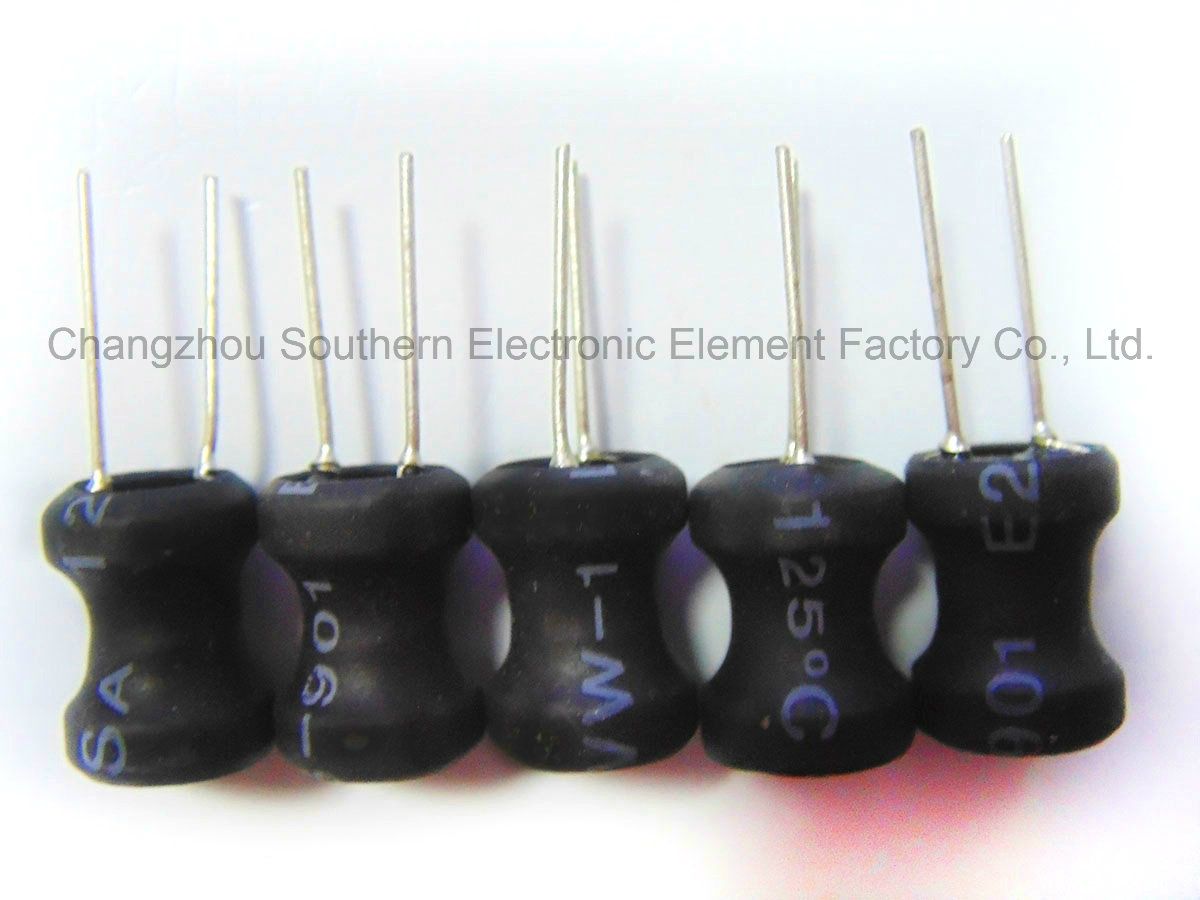

Lgb Type Radial Wirewound Inductor for LED with RoHS
Price: |
US $ 0.01-4/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1000/Piece |
Pay Type: |
L/C,T/T,Western Union |
Product Specifications
Prod Model: |
LGB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Environmental Certification: |
ISO14001 |
Quality Certification: |
ISO9001 |
Certification: |
RoHS |
Type: |
Fixed Inductor |
Structure: |
Mutual Inductor |
Brand: |
Liwang |
Product Description
Product description of the Lgb Type Radial Wirewound Inductor for LED with RoHSSpecifications
1, Axial leaded power inductor
2, Radial leaded power inductor
3, Leaded inductor with ferrite core
Power InductorsComponent | Materials |
1.Core | Ferrite core |
2.Wire | Poiyurethane enameled copper wires |
3.Lead wire | Tinned copper wires |
4.Tube | Heat shrinkable tube,PVC or UL |
5.Glue | Epoxy resin |
Storage conditions:Do not expose to direct sunlight
Features:
High withstanding voltagge and insulation resistance;
Available in Shielded and Unshielded types;
Magnetic shielding, used in high-density mounting configurations;
Excellent Q-frequency characteristics;
High -reliability leaded inductor and high efficiency leaded inductor;
Winding covered with shrinkable tube.
Ferrite bead inductor:
1. Contain high-frequency ferrite
2. Comparaticely large rated current
3. RoHS
Dimensions:
Type | D±1 | Bmax | F±0.5 | d±0.1 | H |
LGB-X/S0406 | 4.5 | 8 | 2.5 | 0.5 | 10min |
LGB-X/S0507 | 5.5 | 9 | 2.5 | 0.6 |
LGB-X/S0608 | 6.5 | 10 | 3.0 |
LGB-X/S0810 | 8.5 | 12 | 5.0 |
LGB-X/S0912 | 9.5 | 14 | 5.0 | 0.8 |
LGB-X/S1012 | 10.5 | 15 | 5.0 |
LGB-X/S1415 | 14.5 | 17 | 7.5 |
Advantage of our company:
1.Fastest lead time
2.Low cost and high reliability
3.Low minimum order
4.Standard Boxes,Special carton was required!
Ferrite bead inductor
Applications:
(1) Video cameras.
(2) Portable VCRs.
(3) Audio equipments.
(4) TV tunners.
(5) Switching power supplies.
(6) Other circuits of consideration aganist radiation.
Selling point:
1)prompt delivery
2)variety of packing:bulk and carton
3)stable performance,extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand
AII products of the size,electronical performance can be designed. If you have any questions or requirements, please contact us freely in any time.
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment".
