Product Specifications
Prod Model: |
UDBC600-6 UDBC800-8 UDBC800-12 UDBC800-15 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Small Model Feed Port: |
600*300mm |
Model Udbc600-6 Hammer PCS: |
56 PCS |
Udbc600-6 Capacity: |
1500-3000kg/H |
Type: |
Hammer Crusher |
Object: |
Wood |
Drive: |
Electric |
Crushing Degree: |
Fine Grinding Machine |
Crushing Style: |
Grinding and Impact |
Principle: |
Fixed Culling |
Cutter Material: |
Hard Alloy |
Finished Surface: |
Outer Surface Process |
Compressive Strength (',For Crushing): |
<100MPA |
Tongs' Features: |
Adjustable Tongs |
Product Description

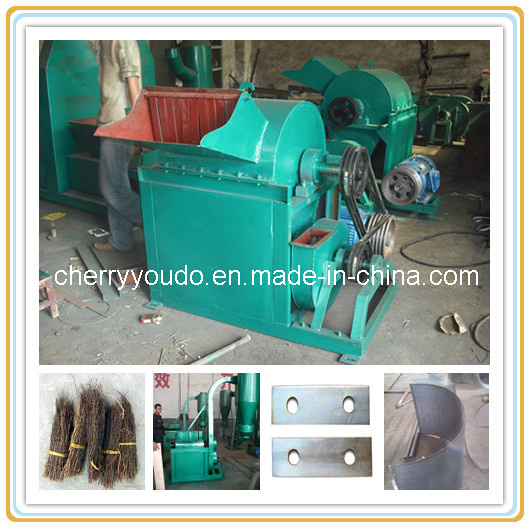

Big feed port & big capacity widely used branch crusher
(also can crush plywood/straw/wood board)
Features:
Widely used in paper making, edible fungus, mechanism charcoal, shaving board, sawdust board, high density board, MDF and other industrial production in the preparation section, and a single wood powder (sawdust) production base, cutting raw materials mainly logs, branches.
In stock
Parameters:
Model | Hammer(PCS) | Feed port(mm) | Capacity(kg/h) | Power(KW) | Speed(r/min) | Weight(kg) |
UDBC600-6 | 56 | 600*300 | 1500-3500 | 18.5 | 3400 | 850 |
UDBC800-8 | 80 | 800*400 | 3500-5000 | 30 | 3400 | 1500 |
UDBC800-12 | 180 | 1200*400 | 4000-6000 | 45 | 3400 | 2500 |
UDBC800-15 | 240 | 1500*450 | 6000-8000 | 75 | 3400 | 3500 |
YOUDO MACHINERY Co., Limited is professional doing machine export. Such as wood machine,
Farm machine, charcoal machine, chalk machine, food machine, recycling machine and so on.
We promised we can do the most favourable price, and best service!
Food Machinery: Vegetable&fruit machine, meat machine, slaughter machine, nuts machine, snack machine;
Coal and charcoal Machinery: Briquette machine, extruder, grinder, mixer, dryer;
Wood Machinery: Wood beads machine, wood toothpick machine, wood crusher;
Animal feed Machinery: Pellet maker, straw crusher, fish feeder;
Farm Machinery: Planter, harvester, thresher, sheller, peeler;
Recycling machinery: Metal crusher, straw maker...
