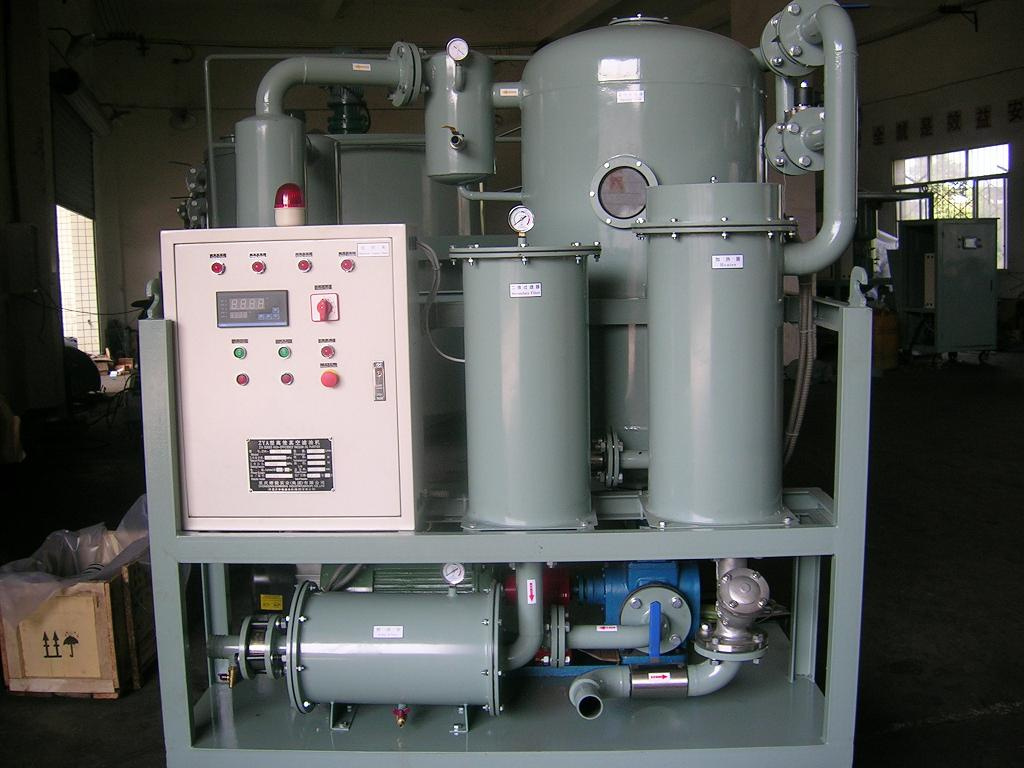

The turbine oil purifier has following echnical features:
1. The TYseries integrate the gravity method, evaporation method, coacervation, vacuum separation and mechanical purification, utilizing coacervation, molecular absorption, vacuum drying and automatica demulsifying technologies which are capable of separating large and minimal amount of water from oil. Its high water removal and demulsifying efficient makes oil to be clear and limpid.
2. The precision multi-stage filter element can remove effectively various impurities, as it is a stage-to-stage densified filter element which could accommondate large amount of impurities and has a longer lifetime.
3. The advanced infrared level automatic control system, voice&light automatic alarm system and the pressure protection device ensure a safe and reliable operation.
4. Turbine oil and low viscosity lubricant oil can treated online.
Use:
Widely applied to turbine, gas turbine and hydraulic turbine online oil treatment in the power, chemical. Papermaking and metallurgic industries, ensuring adjustment to unit and smooth operation of lubricating system, it can alsobe used for treating low viscosity lubricant oil and cooling oil.
|
Items |
Unit |
TY-10 |
TY -20 |
TY -30 |
TY -50 |
TY -100 |
TY -150 |
TY -200 |
TY -300 |
|
Flow rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
Vacuum Range |
Mpa |
-0.06~-0.095 |
|
Working Pressure |
Mpa |
≤0.4 |
|
Temperature Range |
ºC |
20 ~80 |
|
Power Supply |
|
380V 50HZ ( or at user's option ) |
|
Noise |
dB(A) |
≤65~80 |
|
Fault-Free Working Hours |
h |
≥4000 |
|
Continuous Running Hours |
h |
≥150 |
|
Heating Power |
Kw |
12 |
15 |
18 |
24 |
45 |
60 |
72 |
84 |
|
Total Power |
Kw |
14 |
17 |
20 |
27 |
48 |
66 |
81 |
97 |
|
Inlet(Outlet) Diameter |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
|
Total weight of equipment |
kg |
400 |
450 |
500 |
600 |
800 |
1000 |
1100 |
1550 |
|
Dimension |
L |
mm |
1280 |
1350 |
1350 |
1350 |
1500 |
1500 |
1600 |
1650 |
|
W |
mm |
750 |
900 |
950 |
1000 |
1000 |
1200 |
1350 |
1350 |
|
H |
mm |
1450 |
1450 |
1500 |
1800 |
1800 |
1800 |
1800 |
1850 |
|
Indexes After filtration |
Demulsifyingvalue |
min |
≤15/min(GB/F7035) |
|
Water content |
ppm |
≤80 |
|
Gas content |
% |
≤0.1 |
|
cleanliness |
|
≤NAS 6 |
