Product Specifications
Prod Model: |
LXD-15E-20E |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Nylon Plastic |
Diameter: |
15-20mm |
Type: |
Volumetric Kent Types Water Meter |
Certificates: |
ISO4064/ISO9001:2008 |
Maximum Reading: |
9999 |
Minimum Reading: |
0.0001 |
Level Measurement: |
C |
Counter Instructions: |
Digital |
Application: |
Civil |
Principle: |
Volumetric Meter |
Work Environment: |
Dry Water Meter |
Install: |
Horizontal or Vertical |
Medium Temperature: |
0-50 Centigrade |
Nominal Diameter: |
15-20mm |
Medium Pressure: |
Pn16 |
Stucture: |
Volumetric |
Product Description
Specifications

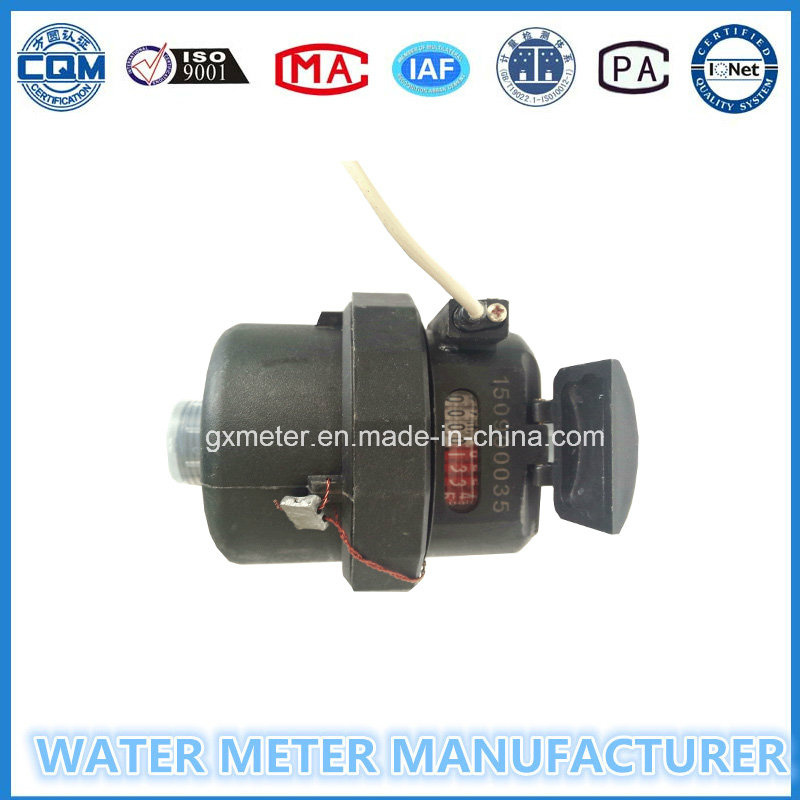

"1/2"-"3/4" volumetric type impulse transfer water meter
We (Gaoxiang Water Metert )are professional water meter manufacture for 10 years and we can supply high quality DN20 PISTON WATER METER Volumetric Rotary Piston Type Water Meter with reasonable price ,any comments or needed ,pls feel free to comtact me:
SPECIFICATION
Volumetric rotary piston water meter:
Complies with and certificated according to the National Regulations
High measurement accuracy;
Compact size ;
Heating/Cooling combined, measuring heating and refrigeration;
Additional integrated and external modules for remote reading (MBUS, Wireless MBUS and pulse output);
Historical data of the previous 18 months;
High precision platinum made measuring sensors;
No mechanical abrasion, not affected by bad water quality, low maintenance cost;
Automatism of error diagnostics insures safe operation;
Battery life is more than 6 years.
Features;
1.the material is Environment Friendly
2..warranty: 2 years
3.Supply ability:100000 pcs per month
4.Free sample one piece is avaible ( but you need pay to us the sample fee and freight charge first to show the sincerity to coopertae with each other and we will return back the sample fee to you when we order to us
Application
Measuring the volume of cold potable
water passing through the pipeline
Work conditions
Water temperature : ≤ 40°C
Water pressure : ≤1.6 Mpa, ≤1.0 Mpa
Features
1. Ensures high sensitivity and accurate registration throughout a wide flow range.
2. Low starting flow rate and excellent metrological performance.
3. Magnetic drive , lower transimission resistance.
4. Sealed dry dial register ensures clear reading.
5. Internal strainer, inlet strainer for selecting.
Compliance with standard
1 Technical data conforms to ISO 4064 Class C
Standard for horizontal installation
Options
1. Several lengths ,different materials of shell and connections available on request.
2. Can be equipped with reed switch option.
Installation requirements
1. The meter can be installed in any position.
2. Pipeline must be flushed before installation
3. The meter shoule be constantly full of water during operation.
Exploded view
Type | Size (mm) | Class | qs Max.Flow | qp Nominal Flow | qt Transitional Flow | qmin Min. Flow | Min.Reading | Max.Reading |
m3/h | L/h | m3 |
LXH-15A | 15/18 | C | 3 | 1.5 | 22.5 | 15.0 | 0.0001 | 9999 |
D | 17.25 | 11.25 |
LXH-20A | 20 | C | 5 | 2.5 | 37.5 | 25 | 0.0001 | 9999 |
D | 28.75 | 18.75 |
LXH-25A | 25 | C | 7 | 3.5 | 52.5 | 35 | 0.0001 | 9999 |
D | 40.25 | 26.25 |
LXH-40A | 40 | C | 20 | 10 | 150 | 100 | 0.0001 | 99999 |
D | 115 | 75 |
Type | Length | Width | Connection Thread | Weight (kg) |
LXH-15A | 115/165/170 | 86/88 | G3/4B | 0.85/1.1/1.2 |
LXH-20A | 134/165/190 | 90 | G1B | 1.3/1.6/1.8 |
LXH-25A | 200 | 106 | G1 1/2B | 2.5 |
LXH-40A | 227 | 152 | G2B | 4.0 |
MOQ:
We will accept your trial order or sample order.
Logo:
Customers could customize their logo or lable on the water meter.
Sample Policy:
We will send samples to you( by TNT or DHL or EMS) for your confirmation within 2-7 days after we come to an agreement.
Delivery time:
Start shipping within 20-45 days after signing the contract.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
List Of Competitive Advantage:
We are factory, can provide you high quality, best price
Professional employee and effective management
Professional trading service
Prompt delivery
Good service & reputation
Large production line
After Service:
We will make compensate for you if the accident made by us.
Founded in 2005, LINYI GAOXIANG WATER METER Co., Ltd. Over many years, we have developed into one of the smart meter, energy meter professional manufacturer, incorporate case casting, CNC maching, water meter calibration and assembling a table. The company has always been pioneering and innovative, proactive. Started in 2006, LINYI GAOXIANG WATER METER Co., Ltd. Decided to the smart meter research and production. Now the company cover of square meter.
The current production exceeds 1.5 million pieces of meters per year placing GX WATER METERS in a leading position both at national market and technology level. GX WATER METERS operates both nationally and internationally in the fields of the water companies, residential companies, the industry and the private market.
The product range includes rotary wing type single and multi-jet water meters with mechanical or magnetic transmission, Smart water meters, Ultrasonic meters, IC prepaid meters, Thermal energy meters and Heat meters with direct reading or complete with integrated modules for the remote transmission of the consumption data. In addition to a high quality level of models and accessories produced by the company of our own, the water meters are characterized by plenty of innovative designs and quickly capture the market in very competitive prices.
The Company is able to meet you customers' requirements starting from the design phase until the complete realization of the meter. LINYI GAOXIANG WATER METER Co., Ltd. Who takes the quality of products as the life of the enterprise, consistently focuses on brand building and product quality. All water meters possess approval certificates in the ISO 4064 regulations. The company is certified with the ISO 9001: 2008 and operates in compliance with the National Regulations for the activities of testing and metrology calibration.
The company located in the "hometown of water meter", Baishabu of Linyi City in East China, as the forming of comprehensive system of research, design, production and testing, we supply both all types of water meter and other spare parts and OEM customized service. You are warmly welcome to visit for cooperation.
