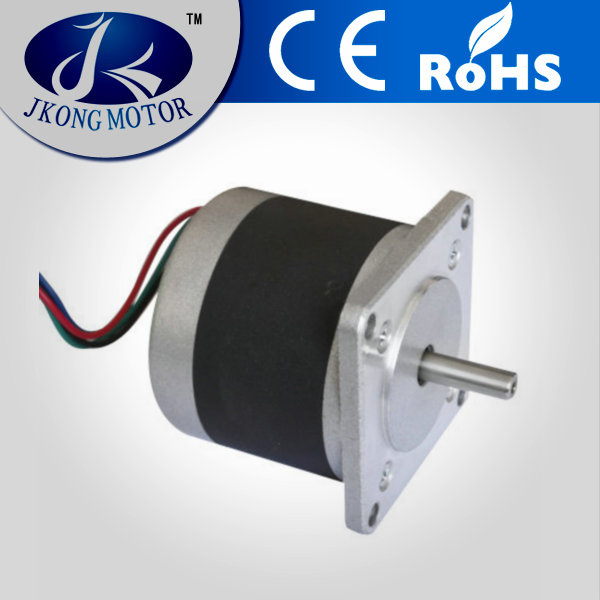

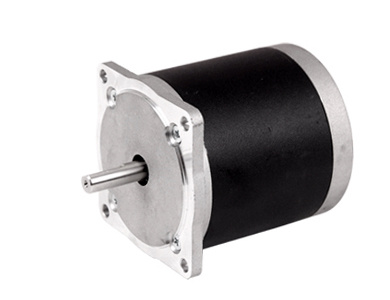

1.8degree NEMA 34 Round Stepping Motor for CNC Machine
| Price: |
US $ 5-9/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
86HY62, 86HY94, 86HY134 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angel: |
1.8degree |
| Shape: |
Round |
| Colour: |
Black |
| Phase: |
2 Pahse |
| Type: |
Electromechanical |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Brand: |
Jk |
| Operate Mode: |
Driver |
| Certification: |
CE |
Product Description
1.8°86mm 2phase Round hybrid stepper motor NEMA34 / 86mm 8 leading step motor/ unipolar 6wires stepper motor/waterproof NEMA34 stepper motorDescrition:NEMA34 stepping motor , 86mm 3 Phase square stepper motor .
45kg.cm Stepper motor , high torque stepper motor with 86mm size .
60kg.cm stepping motor.Applications: Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,
advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.

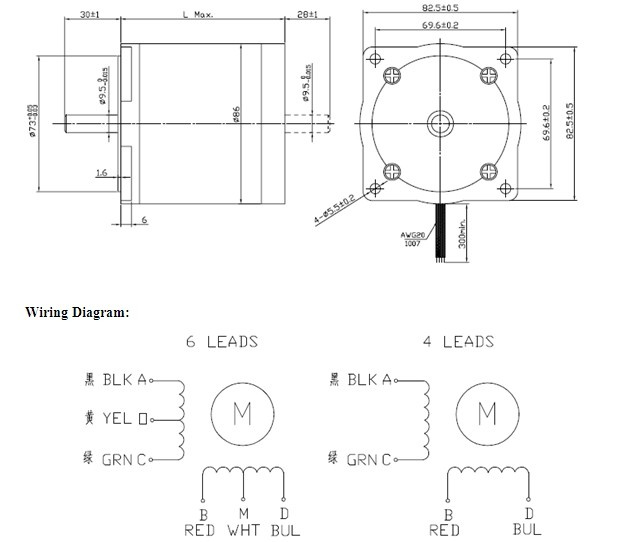

Dimensions:
(Unit=mm)
Matching Stepper motor Driver: JK0220 , JK0230 About Our Factory and other Products:
WHY YOU CHOOSE US: We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service. Our products all with CE and ROHS. Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price. High quality .
Competitive price ,
Good Packing ,
Fast Delivery .
Knight service
Advanced technology Believe that we will do our best!| Model No. | Step Angle | Motor Lenght | Current
/Phase | Phase /Resistance | Phase /Inductance | Holding Torque | Lead Wire | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg |
| JK86HY62-4506 | 1.8 | 62 | 4.5 | 0.4 | 1.4 | 1.3 | 6 | 0.8 | 560 | 1.5 |
| JK86HY62-1256 | 1.8 | 62 | 1.25 | 4.4 | 14 | 1.3 | 6 | 0.8 | 560 | 1.5 |
| JK86HY62-5904 | 1.8 | 62 | 5.9 | 0.23 | 1.5 | 1.8 | 4 | 0.8 | 560 | 1.5 |
| JK86HY94-4006 | 1.8 | 94 | 4.0 | 0.75 | 4.5 | 2.6 | 6 | 2.4 | 1100 | 2.6 |
| JK86HY94-2006 | 1.8 | 94 | 2.0 | 3.0 | 13 | 2.6 | 6 | 2.4 | 1100 | 2.6 |
| JK86HY94-1006 | 1.8 | 94 | 1.0 | 12 | 72 | 2.6 | 6 | 2.4 | 1100 | 2.6 |
| JK86HY94-5604 | 1.8 | 94 | 5.6 | 0.38 | 3.9 | 3.5 | 4 | 2.4 | 1100 | 2.6 |
| JK86HY134-6706 | 1.8 | 134 | 6.7 | 0.45 | 2 | 3.6 | 6 | 3.6 | 1800 | 3.6 |
| JK86HY134-4006 | 1.8 | 134 | 4.0 | 1.25 | 6.6 | 3.6 | 6 | 3.6 | 1800 | 3.6 |
| JK86HY134-1806 | 1.8 | 134 | 1.8 | 6.5 | 41 | 3.6 | 6 | 3.6 | 1800 | 3.6 |
| JK86HY134-5604 | 1.8 | 134 | 5.6 | 0.63 | 6.6 | 5.0 | 4 | 3.6 | 1800 | 3.6 |
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 1, 500 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor.
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
