Product Specifications
| Prod Model: |
SinoColor SJ-740 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| System Supported: |
Windows 7 |
Product Description

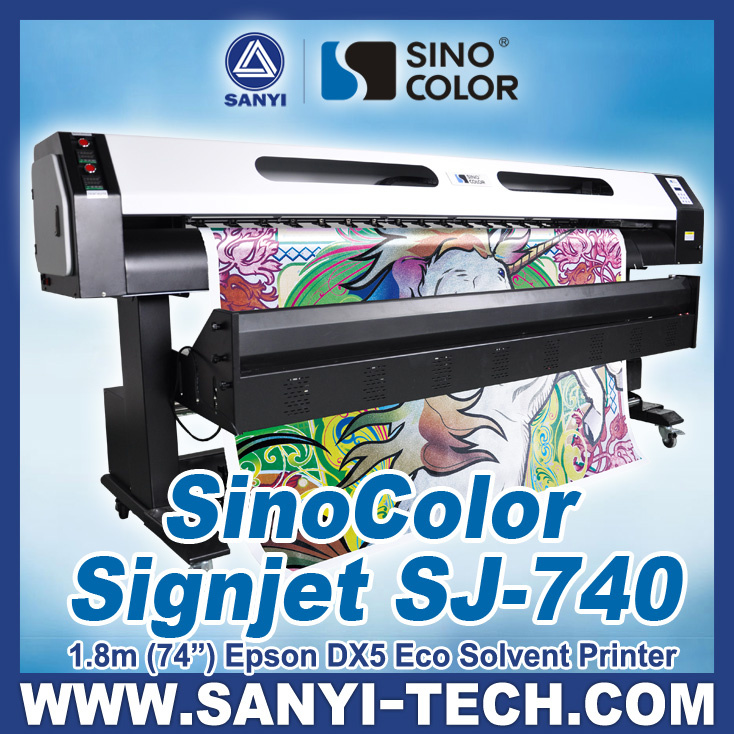

1.8m Large Format Printer --- SinoColor SJ-740
The Seventh Generation (DX7) Micro Piezo Printing Technology
As the advanced version of the DX-5 head, DX-7 head stands for the better reliability and stability. Besides better ink droplets and consistency, the working life of the print head has improved dramatically. The DX7 is much more durable than DX5 for the eco-solvent ink printing. 1.8m large format printer SinoColor SJ-740 is equipped with two high efficient DX-7 print heads, and it is proved to have 15% print speed increasing.
Expertise on High Precision Large Format Printer Manufacturing
We put high precision 3.2m super-wide photo printer in mass-production for years, and this series of printers is very mature and stable products of Terminator. Thus, our company becomes one of the rare factory can manufacture 3.2m super-wide photo printer in the world. It is totally under-estimate, if you think you only can use SinoColor SJ-1260 to print two rolls of 1.5m width media at same time. This beast can meet the demands of many special markets and far beyond your imagination, its uniqueness is the guarantee of your profit and fortune.
Best Printer Ever Made to Possess
1.8m large format printer SinoColor SJ-740 printer has the best combination, super-wide and high precision. It does not only meet the demands of regular advertising printing, but also can accept special orders of super-wide size to get better profit. 1.8m large format printer SinoColor SJ-740 is also suitable for the mature company to increase productivity and bring up new business opportunities.
DX-7 Micro Piezo Print Technology
DX-7 print head with micro piezo print technology can show not only the excellent printing quality, but also the durability to the Eco-solvent inks. DX-7 print head has a longer and more durable working life. The improvement of printing precision makes the ink droplets smaller, and the stability is better than that of DX-5 print head.
3.2m Super-Wide Printer Width
Not only can meet the demands of regular printing, but also accepts the special order of super-wide size and expand the business range. Super-wide inkjet printer can use in the textile and other special fields, and the precision is much better than that of the common solvent printers.
Dual Print Head Design
The technology of two print heads is the mature technology that we bring out to the market in the early stage for years. Now the product with two DX-7 print heads will definitely replace the previous version of printers with DX-5 print heads.
Comprehensive Media Handling
The standard media handling includes the automatic feeding & take-up system that can load up as heavy as 200kgs. The heating system and hot air drying system which can now easily print on flex banner and diversify medias.
1.8m Printer Also Available
For the best product coverage, the 1.8m printers with one DX-7 print head (large format printer SinoColor SJ-740i) model, and two DX-7 heads (large format printer SinoColor SJ-740) model are also available for your easy choice and best buy.
|
Model No. |
SinoColor SJ-740 |
|
Printhead |
Type |
With Epson DX7 Micro-Piezo Head (2 PCS) |
|
Nozzles |
1440 nozzles per head |
|
Max Printing Width |
74 inch (1.8m) |
|
Resolution (dpi) |
1440dpi |
|
Color |
4 color / 8 color |
|
Ink Type |
Eco Solvent Ink |
|
Ink Droplet |
1.5 – 21pl variable |
|
Ink Cartridge |
8 x 350ml Continuous Ink Supply |
|
Speed |
Draft |
36 sqm/h |
|
Standard |
28 sqm/h |
|
Quality |
21 sqm/h |
|
Photo |
15 sqm/h |
|
Media |
Types |
Frontlit, Backlit, Vinyl, One Way Vision, Banner Cloth, Window Film, Mesh... |
|
Feeding and Take-up |
Automatic Media Feeding (Standard) & Take-up System (Optional) |
|
Cleaning System |
Automatically Cleaning, Anti-Clogging Flash Function & Capping System |
|
Heating System |
Pre/Post Heater Equipped |
|
Cooling System |
Cooling Fan Equipped |
|
Environment |
Temperature:20C-28C Humidity:40%-60% |
|
Rip Software |
Photoprint |
|
Control Software |
SinoColor Print Console |
|
Printhead Height |
2-8mm above media adjustable |
|
Interface |
USB2.0 |
|
Operation System |
Windows 7 / XP |
|
Power |
AC 110 / 220V, 50 / 60HZ, 2000W |
Size
Weight |
Machine |
L2960mm x W800mm x H1270mm / 220kg |
|
Packing |
L3060mm x W900mm x H700mm / 300kg |
Sinocolor Print Industry Co., Ltd. is a leading supplier in China, specializing in developing, manufacturing and marketing for large format advertising equipment. We have been in this industry for more than 10 years. Our sales and service networks have covered all over the world. Sanyi Technology has obtained high compliment and popularity in the market.
Quality is always considered as the foundation for our standard and growth. We proudly provide stable and excellent products for our domestic and international customers.
Our sales and technical staff are highly trained, experienced and professional. We can offer our clients comprehensive and logical value and solutions to fit for different demands. The best prices are assured along with lifetime product support. Our valuable customers can be assured for your valued purchase. Our culture is to try our best to assist our customers. Our goal is to meet every need of our customers.
Our products cover Solvent Printers, Flatbed Printers, UV Printers, Textile Printers, Eco Solvent Printers, and Inkjet Printers, as well as Printing Consumable Products, including Ink, and Outdoor and Indoor Materials. We also provide related equipment for the convenience of our customers.
Due to our plentiful manufacture and export experience, competitive price, high quality, on-time delivery and perfect after sales service are thus guaranteed. We look forward to being of service to you. Join us for your advertising business. Let's design the future together!
