Product Specifications
Prod Model: |
CL-OLSB-01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
200PCS/Carton: |
G.W: 12kgs |
Type: |
Without Switch |
Grounding: |
Standard Grounding |
IP Rating: |
IP20 |
Application: |
Residential/General-Purpose |
Brand: |
Copperled |
Product Description
CL-OLSB-01

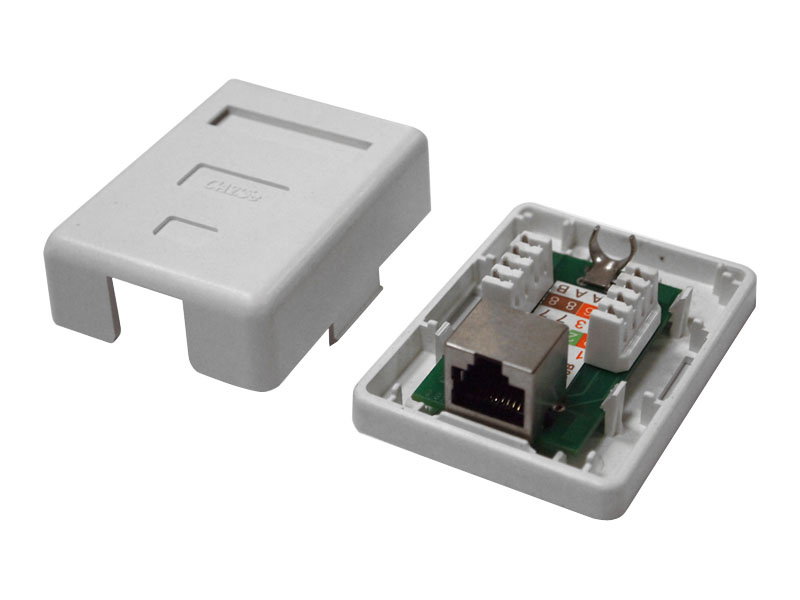

1Port Wall socket with STP Cat. 5e PCB Module
Specification:
Surface Mount Box 1 Port with FTP RJ45 Port
IDC Material: PC UL94V-O
110 IDC
Termination: Phosphor Bronze, Tin Plated
8PINS: Gold Plating
RJ45 Contacts: 750 Times MIN
IDN life: 250 Times MIN
Compliant with EIA/TIA specifications
Dual color-coded label for both T568A/T568B wiring schemes
