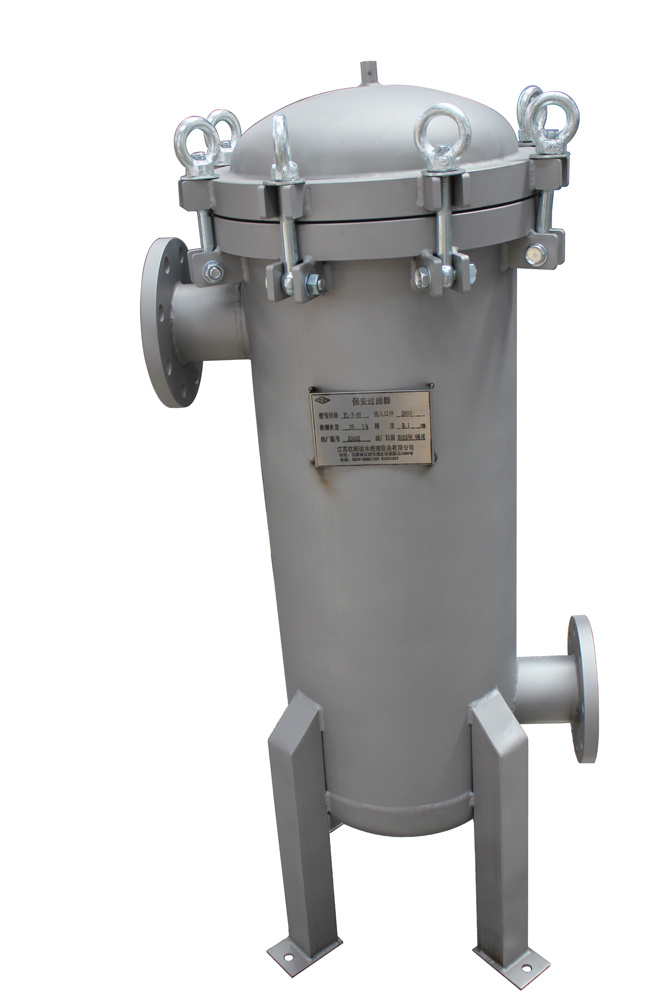

1.0 Um Melt Blown Security Filter Compressed Water Filteration

Product Specifications

Prod Model:	YL-5-40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Melt Blown Security Filter
Flow Rate:	7 M3/H
Inlet And Outlet:	Dn40mm
Specification:	5 Cartridges, 40 Inch
Diameter:	200mm
Thickness Of Wall:	1.5mm-4mm
Filtration Degree:	0.5-1000um
Working Pressure:	1.0/1.6MPa
Usage:	Liquid Filtration
Motive Force:	Pressure
Certification:	CE
Type:	Precision Filter

Product Description

1.0 um Melt Blown Security Filter Compressed Water Filteration


Cartridge filter, also known as security filters, generally set before the pressure vessel to remove the tiny particles whose turbidity above 1 degree, to meet the requirements of  the follow-up process of water; sometimes, it is also set at the end of the entire water system to prevent small particles (such as broken resin) into the finished water.

Working Principle
     Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria.

     Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter.

     Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.

Commonly used wound filter and meltblown filter

     Wound filter (also known as honeycomb filter), there are two types: one is polyp
ropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 ºC; the other is cotton fiber - stainless steel frame filter, the maximum temperature 120 ºC.
    Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 ºC.
    Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.

Specifications:

model	diameter	Nos. and length of  pp filter cartridge	wall thickness	capacity	water inlet-outlet
			mm	m³/hour	mm
YL3-10	Φ167	3 cartridges 10 inch	1.5	1	DN25
YL3-20	Φ167	3 cartridges 20inch	1.5	1.5	DN25
YL5-10	Φ219	5 cartridges 10inch	1.5	1.5	DN25
YL5-20	Φ219	5 cartridges 20inch	1.5	3	DN25
YL5-30	Φ219	5 cartridges 30inch	1.5	5	DN32
YL5-40	Φ219	5 cartridges 40inch	1.5	7	DN40
YL7-20	Φ219	7 cartridges 20inch	1.5	5	DN32-40
YL7-30	Φ219	7 cartridges 30inch	1.5	7	DN32-40
YL7-40	Φ219	7 cartridges 40inch	1.5	10	DN40-50
YL10-40	Φ300	10 cartridges 40inch	2	15	DN50-65
YL15-40	Φ350	15 cartridges 40inch	2	25	DN65
YL20-40	Φ400	20 cartridges 40inch	2	35	DN80
YL25-40	Φ450	25 cartridges 40inch	2.5	45	DN100
YL30-40	Φ500	30 cartridges 40inch	3	55	DN100
YL35-40	Φ550	35 cartridges 40inch	3	65	DN125
YL45-40	Φ600	45 cartridges 40inch	3	75	DN125
YL50-40	Φ650	50 cartridges 40inch	3	80	DN125-150
YL60-40	Φ700	60 cartridges 40inch	3	100	DN150
YL65-40	Φ750	65 cartridges 40inch	3	120	DN150
YL70-40	Φ800	70 cartridges 40inch	3	120	DN150
YL80-40	Φ900	80 cartridges 40inch	4	140-160	DN150
YL100-40	Φ1000	100 cartridges 40inch	4	180-200	DN150

Applications:

01.Filtration treatment in pharmaceutical industry: liquor, serum, traditional Chinese medicine, acupuncture, serum, biological products, large infusion and various gases.
02.Food-stuff industry: compressed air and gas filtration on brewing, mineral water, purified water, beer, grape wine, edible oil, yellow rice wine, rice wine, liquor, wine, sugar, slurry liquid.
03.Water treatment: It can be used for ultra filtration, security filtering for reverse osmosis.

04.Fine chemical industry: decolorization, decarburization and precision filtration for seasoning liquid, front part can also be made into wire mesh cartridge filter with stainless steel (equivalent to the bag filter),then it could filtered by polymer microporous filter element(the filtration rating could be 0.2mm).
05.Environmental protection industry: large scale water treatment(filtration for wastewater which contains fluoride, sulfur, phosphorus, acid ,dye, latex paint and suspended solid ),and precise filtration for water injection into oil wells, filtration for washing wastewater.

 FAQ:

01. What is the capacity (m3/hour) you required for this equipment?
02. What is the working pressure?
03. What is the filtration degree?
   1 micron or other?
