10.4" All-in-One PC Computer for Industrial Control Application
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
PC-1042T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Mode: |
4:3 |
| Resolution: |
800 X 600 |
| Brightness: |
250CD/M2 |
| Contrast Ratio: |
500:1 |
| Type: |
IPC |
| Screen Size: |
6-10'' |
| Touch Screen: |
Touch Screen |
| Installation: |
Wall-Mounted |
| Application: |
Industrial |
| CPU Type: |
Core Duo |
| Accessories: |
Industrial Power Supply |
Product Description
Product Description

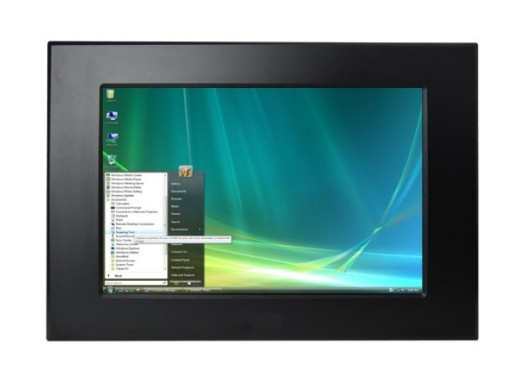

10.4" Fanless Panel PC
1. Intel N2600+NM10
2.16GB high speed solid state disk (optional)
3. Fanless with less noise
4. Sumsang panel, High configuration, vibration proof
5. Wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8. CE, RoHS, FCC, CCC certificates.
9. For medical panel PC, marine panel PC, for information display, embedded in industrial automatic device
Item | Project | parameter |
| LCD Display | Display Type/Size | Color TFT LCD/10.4 ″ |
| Active Display Area (mm) | 211.2mm(W)×158.4mm(H) |
| Display Mode | 4:3 |
| Max Resolution | 800×600 |
| Support Color | 16.7M |
| Luminance(cd/m2) | 250cd/ m2 |
| Backlight | LED backlight |
| Contrast Ratio | 500:1 |
| Response Time | 5ms |
| Pixel Pitch | 0.264(H)×0.264(V) |
| Viewing Angle | 140/110(H/V) |
| Processor System | Chip set | Intel N2600+NM10 |
| CPU | N2600 |
| Video | Intel GMA3650 , 640MHz |
| Internal memory | DDR3 ( 800/1066/1333MHz ) Typ. 2G (Max 4G)(optional) |
| Hard disk | 16GB high speed solid state disk (optional) |
| HDMI ports | 1xHDMI Ports |
| COM ports | Defaultx2 COM(optional) |
| Ethernet ports | 2xRJ45 Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) |
| Audio | Realtek HD ALC269Q
Line-In/Line-Out/Speaker out with 1W AMP Circuit |
| USB ports | Defaultx4 USB(Max x6) |
| Touch Type | TouchScreen Type | Resistive(4-wire/5-wire) |
| Optional Touch Type | SAW, IR, Capacitive |
| TouchScreen interface | Serial (RS232) or USB |
| Power supply | Input Voltage | DC12V 4A |
| Output Rating | <= 18W |
| Temperature Range | Operating Temperature | -20 ~ 60ºC |
| Relative Humidity | 20(%RH) ~ 90(%RH) |
