Product Specifications
| Prod Model: |
HH-1004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length×width×height(Mm): |
4280×2085×2925 |
| Number Of Cylinder: |
4 |
| Cooling System Type: |
Water Cooled |
| Rated Power(Kw): |
73.5kw |
| Max. Torsion(N.M): |
395 |
| Front Wheel(Mm): |
1610_1820(4WD);1520_1820(2WD) |
| Rear Wheel(Mm): |
1620_2020 |
| Engine Model: |
Directly Injection |
| Gear Box: |
F16+R8/F16+R8(Creeper Gear) |
| Clutch: |
Single,Dry,Dual Stage Type |
| Drive Wheel: |
4WD |
| Type: |
Wheel Tractor |
| Certification: |
ISO/TS16949 |
| Condition: |
New |
| Fuel: |
Gas / Diesel |
| Emission Standard: |
Euro III |
| Usage: |
Farm Tractor |
Product Description

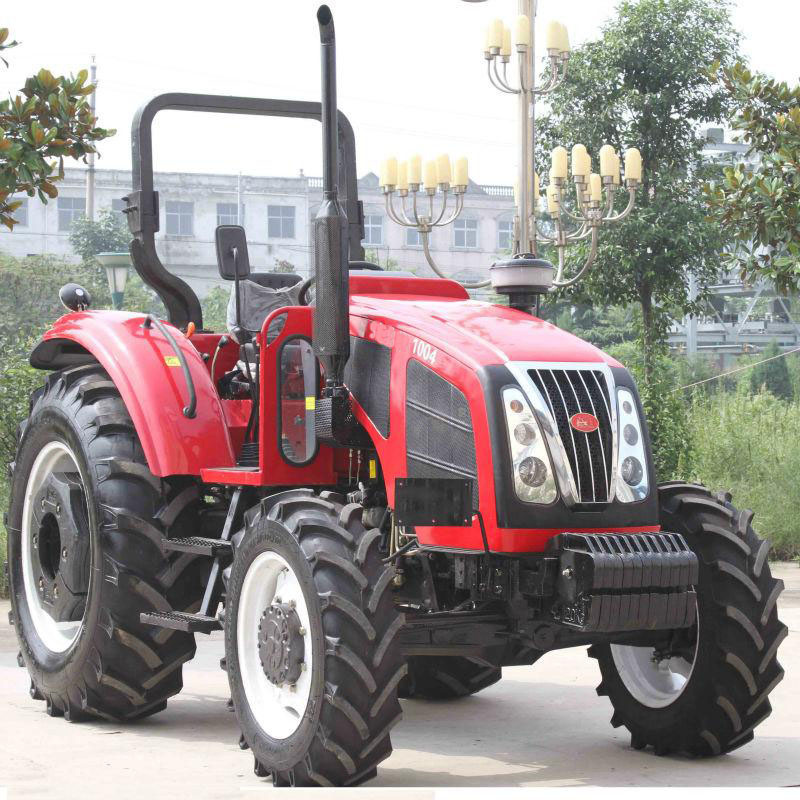

100hp large power agricultural tractor equiped with turbo YTO engine
100hp 4wd agricultural tractor
1. Low fuel consumption
2. Famous engine, large power and torque
3. Best quality and service
The Standard configuration of 100hp farm tractor:
100HP 4Wheel Drive
4 cylinder diesel engine
Rated power: 73.6 kw
Transmission box: F16+R8
Hydraulic power steering
Double speed PTO 760/1000rpm
Dual clutch, independent operation
Partial separated hydraulic hitch
Draft positional adjustable control
Category 2 rear-mounted three-point linkage
With Roll Over Protection Structure System
Optional device for the 100hp farming tractor:
Enclosed fan cabin
Luxury Cabin
Heater or AC
Front and Rear Ballast
Paddy tyre
Air brake
One or two group output valve
Swing drawbar
High pressure hydraulic hitch
Professional tractor manufacturer! !
We can offer a full line of farm equipments, such as farm tractor, garden tractor or lawn tractor, tractor implements, etc. We offer low price products with highest performance cost ratio.
Many models of our tractor can be with EEC/CE/ISO for abroad markets.
We have full range of tractor implements for your choice such as front end loader, backhoe, snow blower, wood chipper, rotary tiller, plow, harrow, trailer, baler, etc
If you are interested in our tractors, please tell us horse power and quantity. We will recommend the most suitable models.
The technical parameters of CHHGC-1004 compact tractor
|
Model |
1004 |
|
Drive type |
4*4 |
|
Engine |
|
Engine model |
LR4M3Z-23 |
|
Capacity of fuel tank(L) |
150 |
|
Rated speed (r/min) |
2300 |
|
Engine power (kw) |
73.5 |
|
Rated fuel consumption (g/kw@h) |
≤242 |
|
Transmission |
|
Clutch |
Single,dry,plate spring pressed,independent,dual stage |
|
PTO Speed(rpm) |
760/1000 |
|
Gearshift |
F16+R8 |
|
Hydraulic system |
|
Hydraulic output valve |
Two group |
|
Three point linkage |
|
Category of 3-point link |
Category II |
|
Lifting capacity(at point of 610mm)KN |
≥17.6 |
|
Technical parameter |
|
Dimension (L*W*H) mm |
4280*2085*2925 |
|
Wheel base(mm) |
2195 |
|
Track base(mm) front wheel |
1610 |
|
Track base(mm) rear wheel |
1620~2020 |
|
The smallest clearance(mm) |
370 |
|
Front tyre |
11.2-24 |
|
Rear tyre |
16.9-34 |
