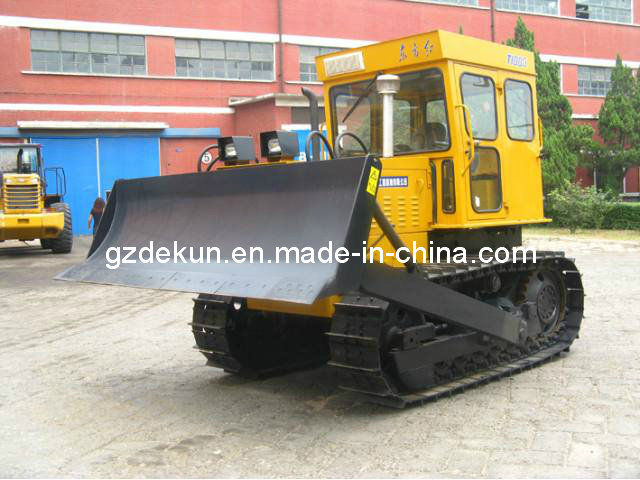

T100G CARWLER BULLDOZER
MAIN FEATURES
Engine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption, stronger torsion.
Master clutch: Choose dry, double piece and constant combining clutch, stronger torsion, simple and reliable.
Gearbox: Choose 4F+2R mechanical gearbox, simply operating, conveniently maintaining, reliably using.
Turning clutch: Choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintaining, lightly and conveniently operating.
Transmission: Choose two classes, straight teeth, big modulus gear transmission, stronger carrying capacity, and higher reliability.
Work device: Many kinds of work device are chosen for users according to requirements.
Operating environment: Choose fully completed close, low noise cab, 100G- II effectively reducing ear noise.
Electric system is characterized by electronic monitor, making real-time monitor for complete machine to assure normal operation.
Reliably using, conveniently maintaining, spare parts are easily purchased.
|
Model |
|
T100G |
|
Total weight |
kg |
10650 |
|
Max towing force |
kN |
81 |
|
Engine model |
|
LR6105T13A |
|
Engine rated power |
kw |
73.5 |
|
Engine rated speed |
r/min |
2300 |
|
Fuel Consumption of the engine |
g/kw.h |
≤238 |
|
Engine max torque |
N.m |
400 |
|
Traveling speed |
km/h |
|
|
Forward I-IV gears |
km/h |
2.6~10.4 |
|
Reverse I-II gears |
km/h |
3.7~6.7 |
|
Max slope angle |
o |
≥30 |
|
Caterpillar track board width |
mm |
450 |
|
Land pressure |
Kpa |
54.4 |
|
Overall length |
mm |
4990 |
|
Overall width |
mm |
2935 |
|
Overall height |
mm |
2982 |
|
Blade width |
mm |
2935 |
|
Blade height |
mm |
960 |
|
Blade max lifting height |
mm |
830 |
|
Blade max digging depth |
mm |
350 |
|
Cutting angle(adjustable) |
o |
55 |
