Product Specifications
| Prod Model: |
ISOEM U(A)-P-O-SD Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
0-75mv/0-2.5V/0-5V/0-10V/0-20mA/4-20mA,etc |
| Output: |
0-75mv/0-2.5V/0-5V/0-10V/0-20mA/4-20mA,etc |
| Isolation Method: |
Magneto-Electric |
| Isolation Voltage: |
3000kvdc |
| Auxiliary Power Supply: |
5VDC, 12VDC, 15VDC, 24VDC, etc |
| Package: |
DIP 24pin |
| Industrial Temperature Range: |
-20 ~ +70 Centigrade |
Product Description

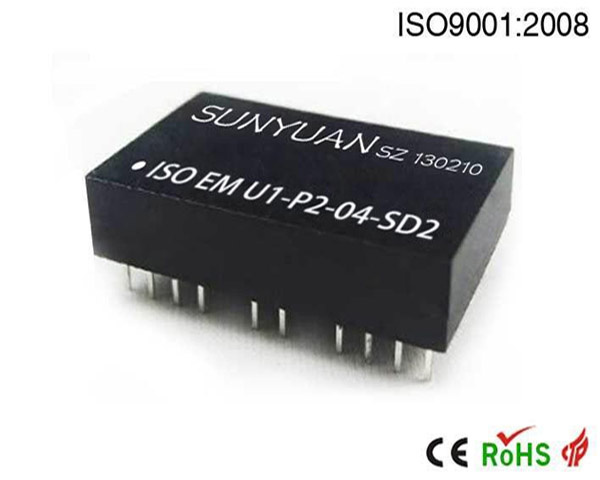

0-+/-100mv to 0-10V Converter r with Distribution Power in Input
Features:
Zero, Gain, Full scale calibration are available through external multi-turn potentiometer.
Power distribution in input end for function expansion: 5V, 12V, 15VDC
Isolated amplification and conversion on analog signals: 0-75mV/0-10V/0-1mA/4-20mA
Precision grade: 0.1, 0.2; Nonlinearity grade (in full measuring range) <0.2%.
Isolation power among auxiliary power, analog input, output: 3KVDC
Auxiliary power: 5V, 12V, 15V, 24VDC, etc single power.
Electro-magnetic anti-interference circuits /shielding measures are required in the field with special EMC.
Low cost, compact DIP 24Pin, UL94V-0 standard flame retardant package.
Industrial Temperature range: -20º C ~ +70 º C
Applications:
Isolated power distribution for passive sensors and signals acquisition and transmission.
Distribute power for pre-amplification, electric bridge and other circuits to collect signals.
Isolated data acquisition of analog signals from PLC, DCS.
Analog signal GND wire anti-interference and data isolated acquisition.
DC current/voltage signal isolation, conversion and amplification.
Long distance isolated transmission of industrial site signals.
Meters, instruments and sensors signal acquisition and transmission.
Power monitoring control, medical equipments isolated safety bar.
Model Selection:
ISO EM U(A)_- P_- O_-SD
Input Voltage /Current
U1: 0-5V A1: 0— 1mA
U2: 0-10V A2: 0— 10mA
U3: 0-75mV A3: 0— 20mA
U4: 0-2.5V A4: 4— 20mA
U8: Customized A8: Customized
Auxiliary Power
P1: DC24V P2: DC12V
P3: DC5V P4: DC15V
P8: Customized
Output
O1: 4-20mA O2: 0-20mA
O4: 0-5V O5: 0-10V
O6: 1-5V O8: Customized
S — Distribution Power Volt. Value
D: DIP24 Package, Zero & Full Scale adjustable
SD1: 9V SD2: 15V
SD3: 24V SD4: 5V
SD8: Customized
Model Sellection Example:
E. G.: 1: Input signal: 0-5V, Output Signal: 0-5V, Auxiliary Power: 24VDC, Power Distribution: 15V / DIP24Package Zero and Full Scale adjustable.
Product Model NO: ISO EM-U1-P1-O1-SD4
E. G.: 2: Input signal: 4-20 mA, Output Signal: 4-20mA, Auxiliary Power: 24V; Power Distribution: 12V / DIP24Package Zero and Full Scale adjustable.
Product Model NO: ISO EM-A4-P1-O1-SD2
|
Items |
Testing Conditions |
Min. |
Typical Value |
Max. |
Unit |
|
Isolated Voltage |
1min |
|
3000 |
|
VDC |
Gain
|
|
|
1 |
|
V/V |
|
Gain Temp. Drift |
|
|
50 |
|
ppm/ |
|
Non-linearity |
|
|
0.1 |
0.2 |
%FSR |
|
Gain Adj. Potentiometer (Adj.) |
|
|
50K |
|
Ω |
|
Zero Adj. Potentiometer ( ZA ) |
|
|
10K |
|
Ω |
|
Signal Input |
Volt. |
|
0 |
|
15 |
V |
|
Current |
|
0 |
|
30 |
mA |
|
Input Offset Volt. |
|
|
2 |
5 |
mV |
|
Input Impedance |
Volt. |
|
|
1 |
|
MΩ |
|
Current |
|
50 |
250 |
1K |
Ω |
|
Distribution Power Supply Output |
Volt. |
|
5 |
|
15 |
V |
|
Current |
|
|
20 |
|
mA |
|
Ripple Wave |
|
|
100 |
|
mV |
|
Precision |
|
|
2 |
|
% |
|
Signal Output |
Volt. |
|
0 |
|
15 |
V |
|
|
Current |
|
0 |
|
20 |
mA |
|
Load Capacity |
Volt. |
Vout=10V |
|
2 |
|
kΩ |
|
Current |
|
0 |
350 |
750 |
Ω |
|
Frequency Response |
|
|
1 |
20 |
KHz |
|
Signal Output Ripple Wave |
No filtering |
|
10 |
20 |
mVRMS |
|
Signal Volt. Temp. Drift |
|
|
|
1 |
mV/ºC |
|
Auxiliary Power |
Volt. |
Customized |
3.3 |
12 |
24 |
VDC |
|
|
Consumption |
|
|
0.5 |
1 |
W |
|
Operating Temp. |
|
-40 |
|
85 |
ºC |
|
Storage Temp. |
|
-55 |
|
105 |
ºC |
