Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
Single |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Starting Mode: |
Self-excited Switching Power Supply |
| Connection Mode: |
Parallel Switching Power Supply |
| Power Supplying System: |
Terminal Power Distribution Equipment |

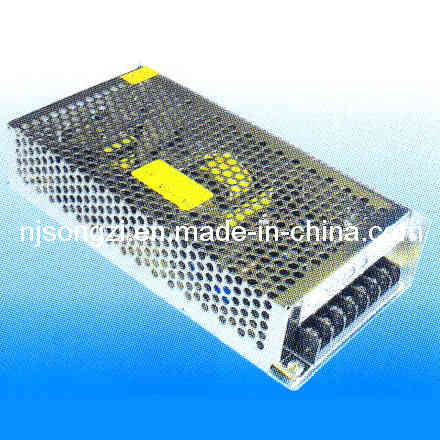

Product Description
Low cost, high reliability
Built-in EMI filter
Low output ripple& noise
Protections: Over load/ Short circuit
Case: 807; Size: 199*98*42
AC input voltage range...176-264VAC
Input frequency...47-63 Hz
AC inrush current...Cold start, 40A/ 230VAC
DC adjustment range...± 10% rated output voltage
Line regulation (full load)...≤ 0.5%
Output over load protection...110%-150% shut off, AC recycle to re-start
Rise, hold up time...50mS, 20mS at full load (typical)
Withstand voltage...I/P-O/P, I/P-F/G: 1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature...0-40º C @100%, -10%@80%, 50º C @60% load
Storage temperature...-20º C ~+85º C, 20%~95%RH (non condensing)
Safety standards...Design refer to GB4943, UL60950-1, EN60950-1
EMC standards...Design refer to GB9254, EN55022 class A
Cooling method...Free air cooling convection
Weight...0.59Kgs/PCS
|
Product model |
DC output |
Load regul. |
R&N |
Efficiency |
|
A-100-3.3 |
3.3V, 20A |
1% |
100mV |
71% |
|
A-100-5 |
5V, 20A |
1% |
100mV |
78% |
|
A-100-7.5 |
7.5V, 13.5A |
1% |
100mV |
80% |
|
A-100-12 |
12V, 8.4A |
0.5% |
100mV |
81% |
|
A-100-13.8 |
13.8V, 7.3A |
0.5% |
100mV |
81% |
|
A-100-15 |
15V, 6.7A |
0.5% |
100mV |
82% |
|
A-100-24 |
24V, 4.5A |
0.5% |
150mV |
84% |
|
A-100-48 |
48V, 2.2A |
0.5% |
150mV |
85% |
