Product Specifications
Prod Model: |
G100-103 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Whiteboard |
Laser Model: |
Green Laser |
Product Description
Parameters

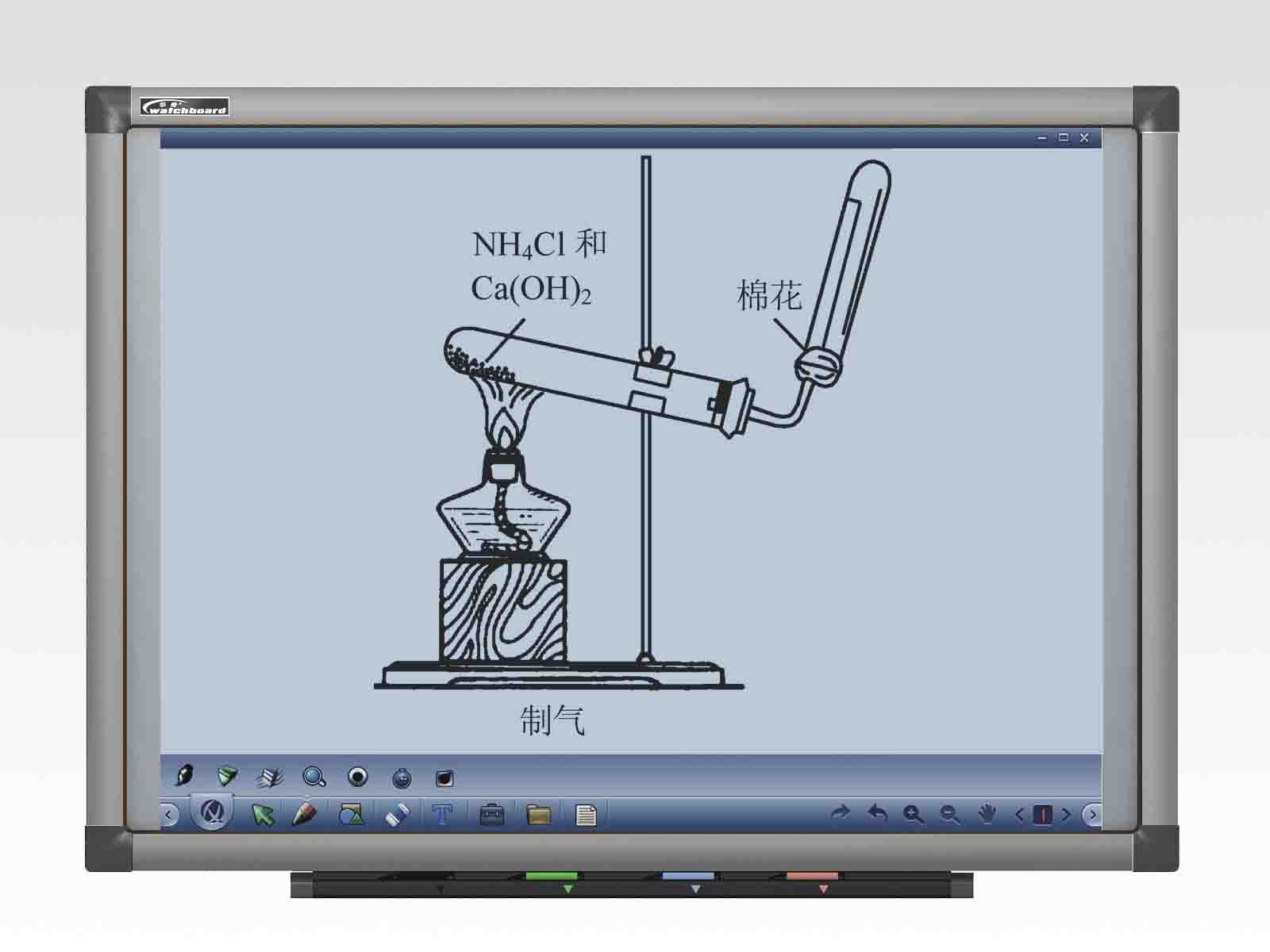

Infrared interactive whiteboard G100-103
Parameters size (mm)2286*1265*40mm(103")
Effective size (mm)2121*1100mm(94")
Projection size
1956*1100mm(88")
Package size 2400*1360*115mm
Net weight30kg
Gross weight37kg
Working temperature-20~50 degrees
Working humidity10~90%
Board materialmetal nano
Frame materialbrushed aluminum (gray)
Electrical performancesensing methodinfrared sensing
Positioning methodfour-point positioning
Sensing objectsfinger, pointer and other opaque
PowerUSB direct power supply
Operating voltageDC4.5V~DC5.5V
Current consumptionless than 1W, working under USB5V, the current is less than 200MA
Signal portUSB2.0
Maxmum USB line be
Connected5M(10M cable should add USB signal amplifier)
Transfer speed12M/S
Light resistancecan be used in the sunlight condition
Scanning speedthe first point is 25M/S, the continued is 8M/S
Cursor speed480 point/s
Resolution9600*9600(subject to the resolution of computer and projector)
Projection display ratio4: 3, 16: 9, 16: 10
Standard accessoriesmounting accessories, whiteboard pen, 5 meters USB cable, software CD
Selectable accessoriesmovable bracket, audio, wireless MIC, smart pen tray
CertificateCE, FCC, ROHS
Features1, infrared sensing for position, good anti-light, high positioning accuracy
2, modular design, easy for configuration, installation, maintenance,
3, the board is made of metal nano, can write directly by water pen,
Good color reproduction.
4, light weight, not easy to change
5. Side speaker smart pen is selectable
