Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 50/Piece |
Pay Type: | L/C,T/T,D/P,Paypal,Western Union |

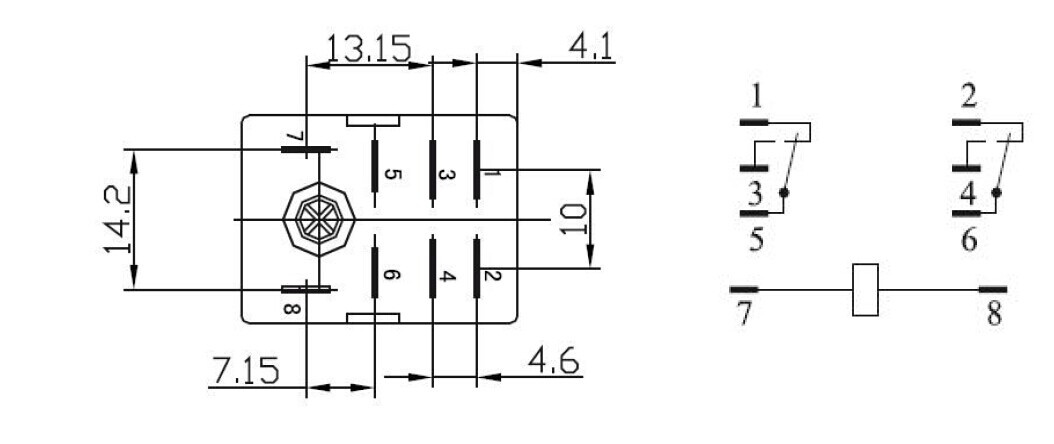

Contact | Form | 2A, 2B, 2C | |
Load (Resistive Leakage) | 10A/240VAC 28VDC | ||
Contact resistance (initial) | ≤ 100mΩ | ||
Material | Silver alloy | ||
Electric life | ≥ 10 5 | ||
Machine life (300 times/min) | ≥ 10 7 | ||
Pick-up voltage (25deg. ) | DC: ≤ 75%× rated voltage AC: ≤ 80%× rated voltage | ||
Release voltage (25deg. ) | DC: ≥ 10%× rated voltage AC: ≥ 30%× rated voltage | ||
Maximum voltage (25deg. ) | 110%× rated voltage | ||
Specifications of coils | DC | 6-220V (Customizable Voltage ) | |
AC | 6-380V (Customizable Voltage ) | ||
Coil power | DC | 0.9 W | |
AC | 1.2 VA | ||
Pick-up time (rated voltage) | ≤ 20ms | ||
Release time (rated voltage) | ≤ 20ms | ||
Initial withstand | Between Same-pole contacts | 1000VAC/1min (leakage current: 1mA) | |
Between Different-pole contacts | 1500VAC/1min (leakage current: 1mA) | ||
Between contact and coil | 1500VAC/1min (leakage current: 1mA) | ||
Insulation resistance | ≥ 100mΩ (500VDC) | ||
Ambient temperature | -55-70deg. | ||
Ambient humidity | 35%-80%RH | ||
Atmospheric pressure | 86-106KPa | ||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||
Vibration resistance | 10-55Hz (double amplitude: 1.0mm) | ||
Installation | PCB; Guide socket; Screw | ||
Packing | Inner box | 20 relays each carton; 50 each bubble box; | |
Outer case | 30 cartons each case; 10 bubble boxes each case; | ||
Dimension of outer case | 330× 310× 345MM 440× 310× 345MM | ||
Weight | Approx. 35g each relay; |

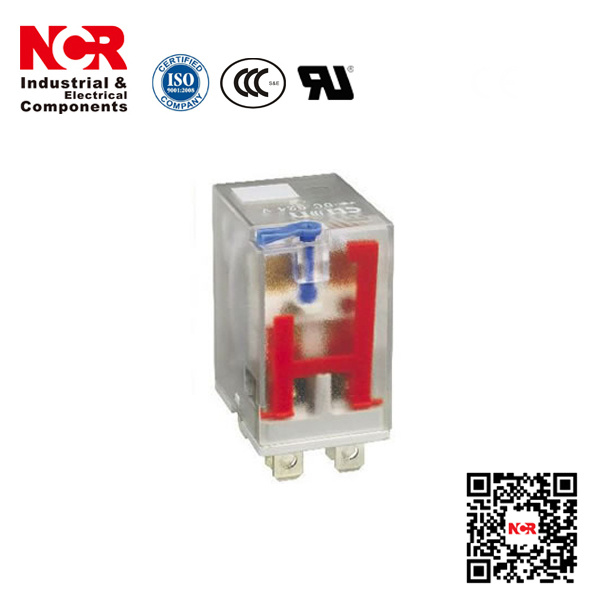

Prod Model: | HHC68AZ |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

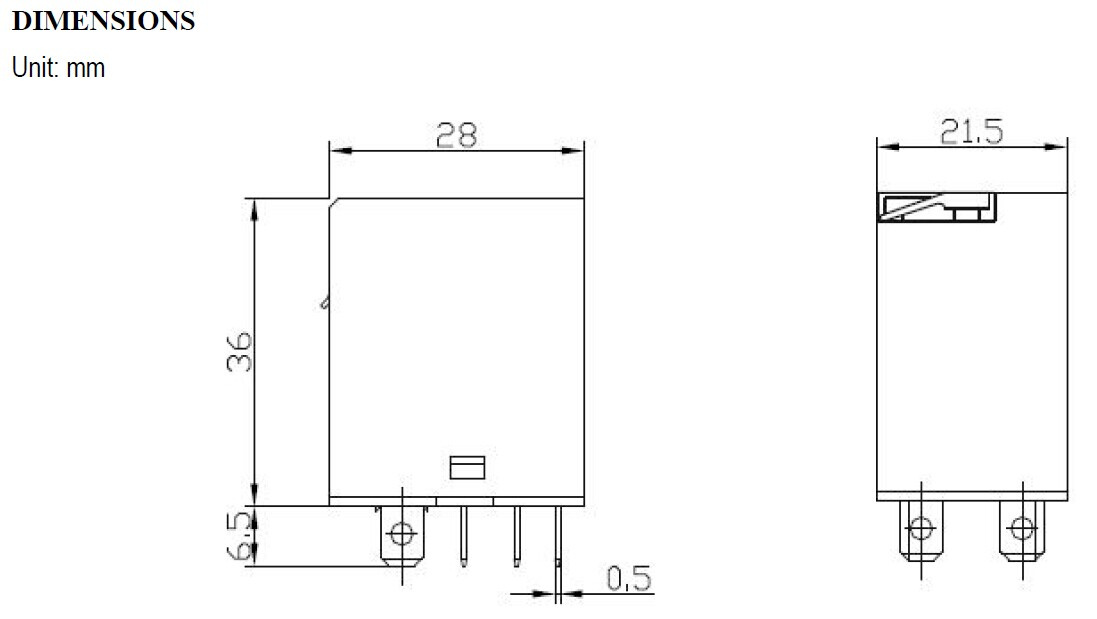

Dimension(Mm): | 28 X 36 X 21.5 |
Contact Material: | Silver Alloy |
Min. Breaking Capacity: | 0.3W |
Arrangement: | 2A, 2b, 2c |
Insulation Resistance: | Min.100m Uohm(500VDC) |
Unit Weight: | 35g |
