Product Specifications
Prod Model: |
SGB10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Red |
Application: |
Power |
Phase: |
Three |
Coil: |
Core-type Transformer |
Cooling Method: |
Dry-type Transformer |
Brand: |
Deyue |
Product Description
Product Description
Transformer Dry type transformer Power transformerPerformance Feature
1. Safe, reliable, no pollution, can operate directly in the load center
2. High mechanical strength, strong ability to withstand short circuit, low partial discharge, good thermal stability, high reliability, long use life;
3. Low no-load loss, high performance, low noise, efficient energy conservation;
4. High thermal performance, high operation capacity, forced air cooling can improve the operation of capacity
5. Good moisture resistant ability, can operate in high humidity and other harsh environments
6. With features of environmental protection, flame retardant, explosion- proof and free of maintenance.Specification:Voltage class: 6 -35KV
Capacity range: 30 - 10000kVA
Voltage adjustment mode: No-load tap changer or on-load tap changer (fitted with vacuum or on-load tap changer )
Tapping range: +/- 2X2.5% +/- 4X2.5% (or others)
Frequency: 50Hz or 60Hz
Phase number: Three phase
Vector group: Yyn0; Dyn11; Yd11 or others
Short-circuit impedance: Standard impedance ( requirement by customer)
Working condition: Relative humidity 100%, ambient temperature no more than 40 degrees centigrade
Max. Temperature rise: 100K
Cooling mode: Natural air cooling (AN) or fan cooling (AF)
Protection grade: IP00; IP20(indoor ); IP23(outdoor)
Insulation grade: F grade
Insulation level:
10KV Power frequency withstanding voltage 35KV, impulse withstanding voltage 75KV;
20KV Power frequency withstanding voltage 50KV, impulse withstanding voltage 125KV;
35KV Power frequency withstanding voltage 70KV, impulse withstanding voltage 170KV;
Ordering Notes:
1. Type
2. Rated capacity
3. Phase number, rated frequency
4. Rated voltage(L. V. &H. V. )
5. Vector group
6. Short-circuit impedance
7. Cooling mode
8. Temperature controlling and indicating device ( with computer interface or not)
9. Protection degrade and enclosure material ( its color)
10. Service condition: Elevation height, environmental temperature, etc
11. Ordering quantity and delivery time
12. Special requirement

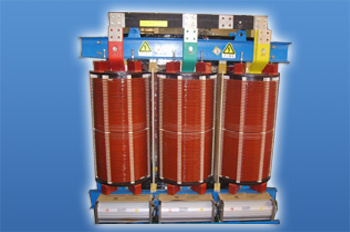

![](/proimages/44f3j00TErtanWysLoj/10kv-sczb-series-oltc-dry-type-power-transformer.jpg)
Technical Parameter for SC (B ) 9 Series |
H -V : 10(10.5,11,6,6.3,6.6)±2X2.5%kV Vector Group: Y,yn0 or D,yn11 |
L -V : 0.4kV Insulating Level: LI75AC35/LI0AC3 |
Model | Po | Pk (120C) | Uk | Io | Sound Level | Dimension(main body) |
W | W | % | % | dB(A) | L X W X H X Track |
SC9-30/10 | 200 | 745 | 4 | 2.2 | 43 | 700X460X750X400 |
SC9-50/10 | 300 | 1050 | 4 | 2.0 | 43 | 945X750X950X550 |
SC9-80/10 | 380 | 1450 | 4 | 1.8 | 43 | 945X750X945X550 |
SC9-100/10 | 430 | 1660 | 4 | 1.8 | 44 | 945X750X965X550 |
SC9-125/10 | 520 | 1950 | 4 | 1.6 | 44 | 1040X860X1045X660 |
SC9-160/10 | 600 | 2250 | 4 | 1.4 | 44 | 1040X860X1085X660 |
SC9-200/10 | 700 | 2670 | 4 | 1.4 | 45 | 1040X860X1115X660 |
SC9-250/10 | 800 | 2800 | 4 | 1.4 | 45 | 1170X860X1120X660 |
SC9-315/10 | 940 | 3660 | 4 | 1.2 | 47 | 1240X760X1305X660 |
SCB9-400/10 | 960 | 4210 | 4 | 1.2 | 48 | 1320X760X1390X660 |
SCB9-500/10 | 1150 | 5150 | 4 | 1.2 | 48 | 1360X760X1455X660 |
SCB9-630/10 | 1320 | 6180 | 4 | 1.0 | 50 | 1460X760X1500X660 |
SCB9-630/10 | 1280 | 6300 | 6 | 1.0 | 50 | 1460X760X1480X660 |
SCB9-800/10 | 1500 | 7330 | 6 | 1.0 | 52 | 1520X920X1590X820 |
SCB9-1000/10 | 1760 | 8590 | 6 | 0.8 | 54 | 1600X920X1720X820 |
SCB9-1250/10 | 2060 | 10190 | 6 | 0.8 | 54 | 1660X920X1895X820 |
SCB9-1600/10 | 2400 | 12370 | 6 | 0.8 | 56 | 1800X920X1985X820 |
SCB9-2000/10 | 3200 | 15230 | 6 | 0.6 | 57 | 1800X920X2135X820 |
SCB9-2500/10 | 3800 | 18090 | 6 | 0.6 | 57 | 2070X1170X2180X1070 |
