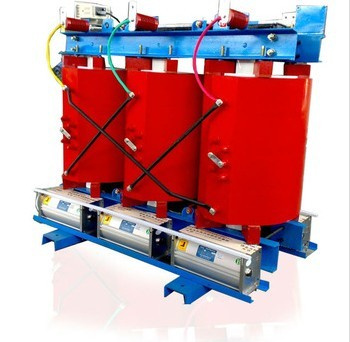

10kv Series Cast Resin Dry-Type Power Transformer (SC(ZB)9/10)

Name: 10kv Series Cast Resin Dry-Type Power Transformer (SC(ZB)9/10)
Brand: china-manufacturer-directory.com
SKU: 709672705
Availability: InStock
Rating: 4.4 (34 reviews)

Price:	US $ 500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SC(ZB)9/10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO9001, ISO14001
Certificate:	Kema Cesi Ctqc
Client:	Kplc, Rea, Pec
Advantage:	Best Price ,Quality and Service in China
Product Feature:	High Quality
Voltage:	10kv
Matarial:	Copper Winding Copper /Aluminum Winding
Package:	According to Client Request
Port:	Any Port in China
Export Markets:	Southeast Asia, Africa, The Middle East, etc
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Application:	Power

Product Description

Specifications

Dry transformer 10kv
1. Low loss
2. Energy saving, free from maintenance
3. Small size, light, and easy for installation

SC(ZB)9/10 10KV Series cast Resin
Dry-Type Power Transformer Price
Made In China

Transformer Specification:
1: Accord to Standards
GB1094.1-1196 GB1094.2-1196 GB1094.3-2003
GB1094.5-2003 GB/T6451-1196 GB/T10237-1988
JB/T10088-2004 GB
2. Dry transformer 10kv
3. SC(ZB)9/10-10kV
4.5 Years Quality assurance period
5. IEC60076&CE

Why choose us?
Yueqing Champn Electric Co., Ltd. Founded in 2002, is a high and new technology enterprise of scientific research, manufacture and marketing.
1. Top 10 in China.
2. ISO9001, ISO14001, OHSAS18001
3. Monthly Production Capacity-3000 sets Oil and Dry transformers
4. Prompt Reply Within 12 Hours
5. Six workshops with more than 200, 000 square meter

Payment terms
1 By T/T 30% in advance+ 70% before delivery
2 Negotiable

Packing
1 Packing Detail: Water-proof packages +Wooden case
2 Delivery Date: 30 days after confirmation of drawing

Port
Any China Port

Rated capacity (KVA)	Voltage Combination			Connection symbol	Loss(W)		No-load current (%)	Short-circuit impedance (%)	Overall weight
Rated capacity (KVA)	High voltage (KV)	High voltage tapping range	Low voltage (KV)	Connection symbol	No-load	Load	No-load current (%)	Short-circuit impedance (%)	Overall weight
30	6 6.3 10 11 22 24 35 38.5	+5% +2 × 2.5%	0.4 3.15 6.3 10 11	Yyno Dyn11	215	740	3.2	4	230
50					325	1060	2.8		300
80					415	1520	2.6		470
100					460	1760	2.4		560
125					530	2000	2.2		650
160					620	2350	2.2		780
200					720	2800	2.0		880
250					860	2980	2.0		1030
315					990	3880	1.8		1250
400					1150	4420	1.8		1400
500					1350	5560	1.8		1600
630					1560	6650	1.6	6	1900
800					1600	7650	1.6		1900
1000					1780	7860	1.6		2580
1250					1990	9000	1.4		2850
1600					2400	11000	1.4		3200
2000					2800	13200	1.4		3800
2500					3740	16500	1.2		4280
3150					4500	19700	1.2		5250
