Product Specifications
| Prod Model: |
LFPF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5inch,10inch,20inch,30inch,40inch |
| Diameter: |
68mm |
| Pore Size: |
0.5/1.0/3.0/5.0/10/20 |
Product Description

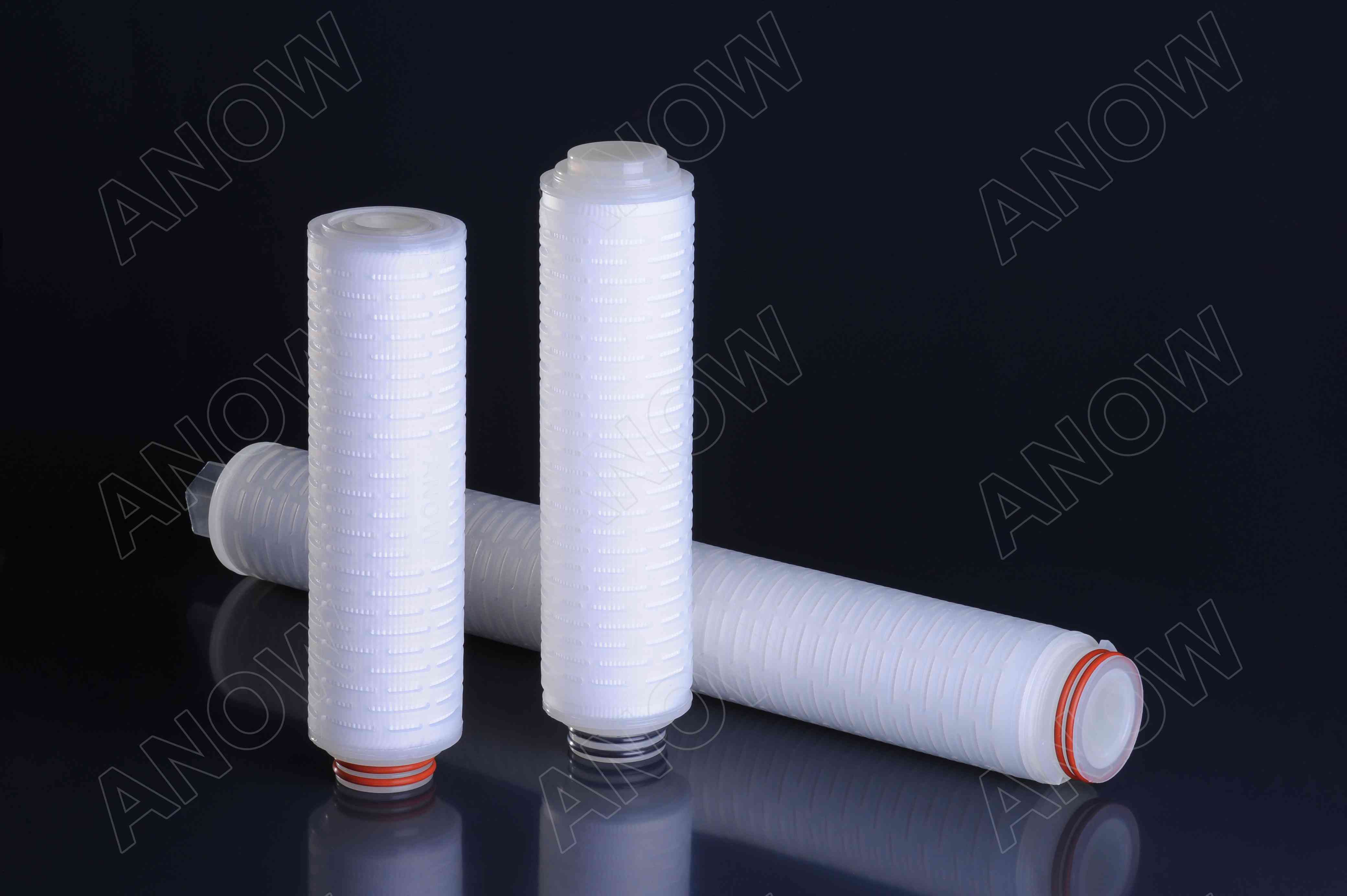

10microns multi-layer PP filter cartridge
Feature &Benefit
1. Superior dirt-holding capacity
2. High flow rates and long service life
3. Reliable retention of particulates
4. Broad chemical compatibility
5. Ideal for viscous and colloidal liquid filtration
Application:
1. Prefiltration for draft beer
2. Clarification for wine, liquor and other alcohol drinks
3. Filtration for mineral water and purified water
4. Security filtration for reverse osmosis
5. Clarification during primary food process
|
Materials of Construction |
|
Filter Media |
Multi-layer PP |
|
Support and Drainage |
PP |
|
Core, Cage |
PP |
|
End Caps |
PP |
|
O-rings/Gasket |
Silicone/EPDM/Viton |
|
Sealing Technology |
Thermal Bonding, No Adhesives |
|
Dimensions |
|
Diameter |
Φ68 |
|
Length |
5 inch, 10 inch, 20 inch, 30 inch, 40 inch |
|
Filtration Area, ft 2 |
|
2.1~3.2 per 10-inch element |
|
Pore Size, μm |
|
0.5, 1.0, 3.0, 5.0, 10, 20 |
|
Maximum Differential Pressure |
|
Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85°C |
|
Flow Rate & Pressure Drop , per 10-inch cartridge |
|
0.5 μm |
≥ 11 L/min at 210 mbar |
|
1.0 μm |
≥ 16 L/min at 210 mbar |
|
3.0 μm |
≥ 20 L/min at 210 mbar |
|
Particle Removal Efficiency (%) |
|
≥ 95 |
|
Sanitization |
|
May be hot water sanitized for 30 cycles using purified water at 85 °C for 30 min |
|
Good Manufacturing Practices |
|
Manufactured in an ANOW facility which adheres to Good Manufacturing Practices. |
