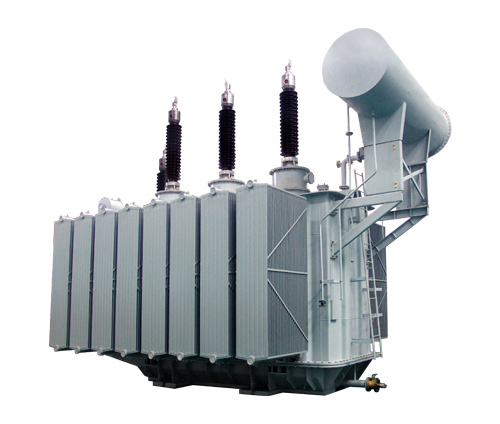

110kv Class Power Transformer

Name: 110kv Class Power Transformer
Brand: china-manufacturer-directory.com
SKU: 749456645
Availability: InStock
Rating: 4.8 (72 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

110KV Power transformers can be constructed as two windings, or three windings,

These oil immersed type transformers are the outdoor use, key equipment from HV distribution line to LV feeders.

Till now we have developed several grades of these transformer to achieve better green requirement of energy saving and environment protection: S9 series, S11 series, S13 series and etc, the main difference is that the cold rolled grain oriented steel sheet can realize smaller no load loss.

Generally the normal working condition required: -25ºC ~ 45ºC, altitude not more than 1000m, if some necessary parts changed, the transformer can run in more ultimate conditions: i.e. -45ºC~50ºC, or 2000m altitude and etc.

Applicable standard: IEC76

Basic Parameters

Number of phases: 3

Rated primary voltage: 110KV, 132KV

Highest voltage: 121KV, 145KV

Rated secondary voltage: 66KV, 35KV

Rated third voltage: 35KV, 11KV (if it has)

No load loss, Load loss: As per user requirement or our design.

Voltage regulation: off load tap changer: + 4x2.5%, or on-load tap changer, + 8x1.25%,

Cooling methods: ONAN, ONAF, OFAF

Normal creepage: > 31mm/KV

Prod Model:	110KV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

HRAN INTERNATIONAL TRADE Co., founded in 2006, with more than 35000M2 manufacturing space, 480 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 10 years experience in producing and developing for electric equipment.

The Group has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units, switches and sockets

Temperature controllers as well as many other electrical accessories such as LED lighting. And tools&hardwares

HRAN Group owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

HRAN obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, HRAN continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
