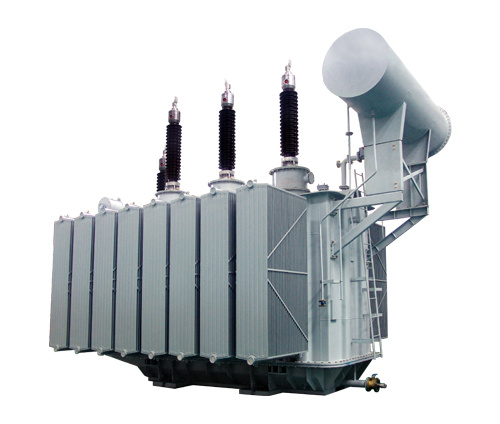

220KV Power transformers can be constructed as two windings, or three windings,
These oil immersed type transformers are the outdoor use, key equipment from HV distribution line to LV feeders.
Till now we have developed several grades of these transformer to achieve better green requirement of energy saving and environment protection: S9 series, S11 series, S13 series and etc, the main difference is that the cold rolled grain oriented steel sheet can realize smaller no load loss.
Generally the normal working condition required: -25ºC ~ 45ºC, altitude not more than 1000m, if some necessary parts changed, the transformer can run in more ultimate conditions: i.e. -45ºC~50ºC, or 2000m altitude and etc.
Applicable standard: IEC76
Basic Parameters
Number of phases: 3
Number of windings: 2 or 3
Voltage ratings:
HV Winding: 220KV
MV winding: 66KV, 110KV, 145KV,
LV winding: 6KV, 10KV, 22KV, 35KV, 66KV as required.
Rated capacity 31.5MVA~240MVA
No load loss, Load loss: As per user requirement or our design.
Voltage regulation: On-load tap changer
Cooling methods: ONAN/ONAF/Other
Vector group: YNd11, YNyn0d11, YNa0d11 and etc.
Normal creepage: > 31mm/KV
Features:
1) Low noise; low loss;
2) Low partial discharge;
3) Strong anti-short-circuit;
4) High impedance.
