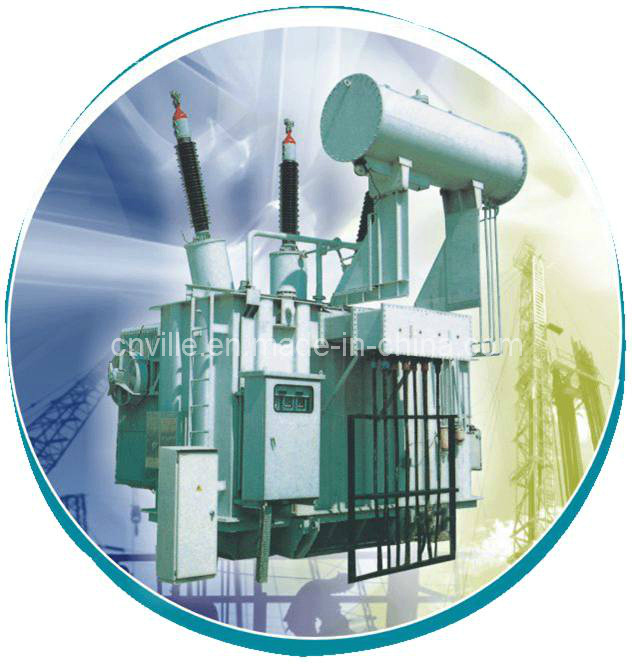

110kV Oil-immersed type power transformer
General :
Adopting advanced and strictly technology, the 110kV's transformer that we develops to produce index all achieves the advanced standard of international by way of constantly exploring and make perfect. The product possesses characteristics such as the low loss, low noise and low power in part and the resisted short circuit ability is strong etc. The product breed is diversified and the model specifications complete.
The transformer product can be installed and use in outdoor or indoor, and it is very ideal equipment in the distribution network in factory, rural area and city.
Features:
4.1 Short-circuit capability
The use of advanced computer program for calculating the transformer short-circuit conditions, analysis of the coil short-circuit conditions in various parts of the force and deformation. Transformer short circuit capacity can be greatly improved.
4.2 low loss
Optimization of electromagnetic calculations, using a variety of ways to effectively control the leakage magnetic shielding to reduce the load loss and to avoid overheating.
High quality cold-rolled silicon steel lattice orientation of high permeability, the use of miter joints STEP step, no holes are not stacked on the yoke process, reduce the load loss, load current, electromagnetic noise.
4.3 high mechanical strength
Six-side positioning of the body using methods to meet the transport direction of the acceleration level is not greater than 0.3G, the vertical direction is not greater than 0.15g.
Technical Data:
| Products Model | Rated Voltage | Symbol | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance Voltage (%) |
| High Voltage (kA) | Tapping Range | Low Voltage | Stepping Up Becomes | Decompression Becomes |
| SFSZ10-6300/110 | 110 115 121 ±8×1.25% | 35 36.6 38.5 ±2×2.5% | 6.3
6.6
10.5
11 | YN,yn0,d11 | 10.5 | 45 | 0.6 | (H)-(M)17.5% (H)-(L)10.5% (M)-(L)6.5% | (H)-(M)10.5% (H)-(L)17.5% (M)-(L)6.5% |
| SFSZ10-8000/110 | 12.5 | 54 | 0.6 |
| SFSZ10-10000/110 | 14.5 | 63 | 0.6 |
| SFSZ10-12500/110 | 16.9 | 70 | 0.6 |
| SFSZ10-16000/110 | 19.4 | 86 | 0.6 |
| SFSZ10-20000/110 | 22.6 | 102 | 0.6 |
| SFSZ10-25000/110 | 26.2 | 142 | 0.5 |
| SFSZ10-31500/110 | 31.7 | 145 | 0.55 |
| SFSZ10-40000/110 | 35 | 172 | 0.5 |
| SFSZ10-50000/110 | 37.04 | 207 | 0.46 |
| SFSZ10-63000/110 | 42.7 | 243 | 0.42 |
![]()
Ningbo Ville Electric Co., Ltd. is a company specialized in research, development and production of transformer and high voltage & low voltage electrical power equipment.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in turnkey project contractor of power substation, power plant project and electric power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products.
Products application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier"
