Product Specifications
Prod Model: |
DM9105H-12/24 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Input: |
110V & 220V AC |
Max Output: |
350W |
Channel: |
1CH |
Single Channel Output: |
<28A(14A) |
Output Mode: |
Constant Voltage |
Control Mode: |
Triac |
Color: |
Black |
G.W: |
2kg |
Size: |
L336.5*W129*H53.5mm |
Name: |
220V Triac LED Dimmer & LED Driver Constant Voltag |
Task: |
Adjust |
Structure: |
Combination |
Signal: |
Continuous |
Mathematical Model: |
Non-Linear |
Product Description

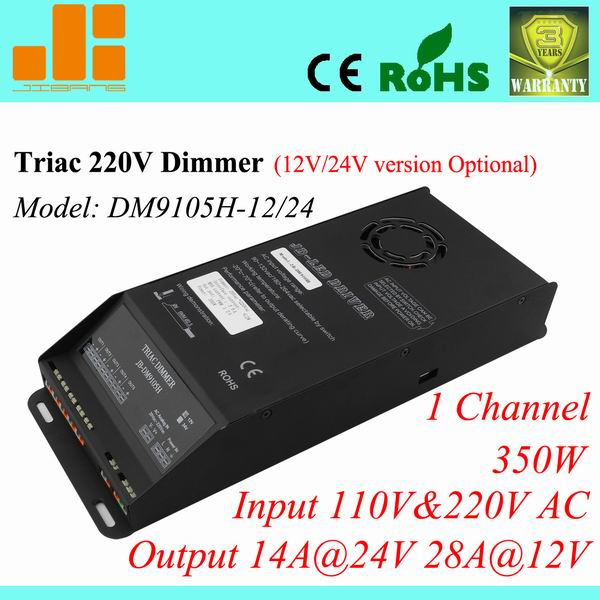

220V TRIAC LED DIMMER & LED DRIVER Constant Voltage 1 Channel Input 110V 220V Single CH < 28A(14A) Max350W Model: DM9105H-12/24
Features:
1. Single channel 350 W constant voltage DC12/24V output dimmer control.
2. No flicker, Triac AC 34 V ~ 220 V dimmer, can with large control system to dimming.
3. From 0 ~ 100% to dimming.
4. Protections: Short circuit / Overload / Over temperature.
5. Support Leading edge(Triac) and Trailing edge(ELV)Dimmer. To change input voltage via phase cut, in order to achieve perfect effect, please select Dimmer properly.
6. Dimming curve difference between products can be adjust, by adjustable resistance.
Tech-parameter:
Input: AC110-220V Output: 12V/24V/PWM Control channels: 1CH Signal Input: Silicon controlled
MAX Power: 350W Frequence: 5000Hz Work Temp.: -20~70 The light gray level: 1024
Protection grade: IP40 Gross product: 1kg Product size: L336.5*W129*H53.5(mm)/Custom-made
Function Instructions:
According to the product connection diagram, the LED load, power by positive and negative to connect to the right port, open the power supply, adjust the Triac voltage regulator, so as to change the output of the controller, until get the satisfactory of LED output brightness.
Remarks:
The dimming light of silicon controlled interface with product supply methods! Please separate supply the power, ensure the smoothness of light!
Shanghai Jibang Electronic Technology Co., Ltd. is a force in LED control system, intelligent control system LED move light research and development of high-tech enterprises. DMX control system application development, realize network synchronization control, touch mode intelligent LED dimmers of master-slave product research, supporting large-scale control system is applied, DALI series products, 0/1-10 V dimmers research and development! Products used in outdoor billboard, building bright project, indoor decorative lighting, etc, all sorts of circumstances widely used.
