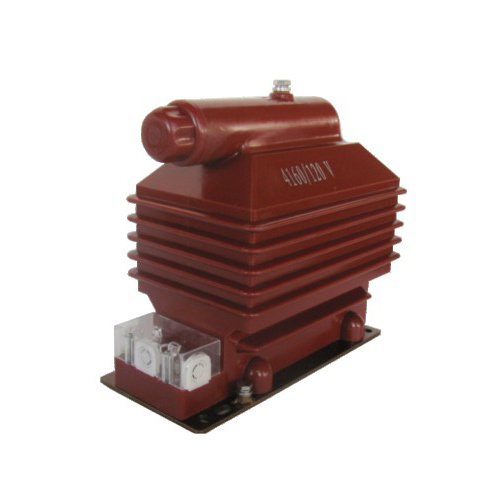

11kv Indoor Single Pole Potential/ Voltage Transformer/PT/Vt with Fuse
| Price: |
US $ 250-260/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
JDZX10-11R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| Voltage Transformer: |
Voltage Transformers |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description
JDZ8-11R voltage transformer, epoxy resin casting and full enclosed construction, is used indoor for measuring current, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2/12kV
The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.
Key Technical Data1. Rated Frequency : 50/60Hz2 Load power factor cosΦ=0.8 (lagging)
3. Technical standard accords with IEC60044-2:2003| Type | Rated primary
Voltage
(kV) | Rated secondary
Voltage
(kV) | Accuracy classes
combination | Rated output (VA) | Thermal limiting
Output
(VA) | Insulation level
(kV) |
| JDZ8-11R |
6.6
11 | 0.1
0.11
0.12 | 0.2 | 25 | 500 | 7.2/20/60
12/28/75 |
| 0.5 | 50 |
| 1 | 100 |
0.1/0.1
0.11/0.11
0.12/0.12 | 0.2/0.2 | 15/15 | 300 |
| 0.2/0.5 | 15/30 |
| 0.5/0.5 | 25/25 |
| 0.1/0.22 | 0.2/6P(3P) | 15/300 | 500 |
| 0.5/6P(3P) | 30/300 |
6.6
| 0.22 | 1.0 | 100 | 500 |
| 6.6/ | 0.11/ | 0.2 | 15 | 300 |
| 0.5 | 30 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
