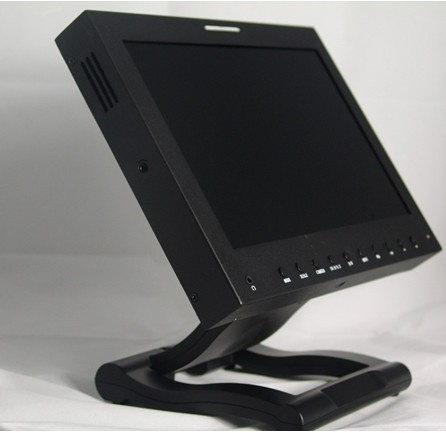

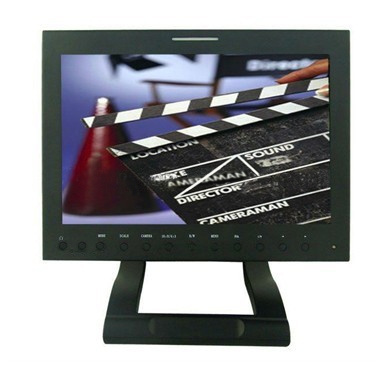

A. 12.1" Director LCD Monitor with YPbPr, 3G HD-SDI, AV Input for Broadcasting & Movie Making
B. Signals: HDMI, YPbPr, AV and 3G/HD/SD sdi
C. Resolution: 1280x800
D. Brightness: 200CD/m2
E. Ratio: 16: 9
Advanced Features
*Peaking Focus Assist(peaking filter)
*Image Multiplication&Freeze&Flip
*Picuture in Picture(PIP)
*H/V Delay
*front earphone jack
*Tally Red/Green Color
*Check Field Mono, Red, Green, Blue, Off
*Aspect Ratio DOT by DOT, Panorama, Zoom1, Zoom2, 4: 3, Full screen
*Scan Mode Standard, Overscan, Underscan
*screen Marker Off, 96%, 93%, 90%, 85%
*Power Ways DC XLR Power adapter
Sony V battery plate
Panasonic Anton battery plate
Power from DV device
Model: P121-9HSD
DOT Resolution: 1280x800 pixels
Brightness: 220 CD/m2
Contrast Ratio: 300: 1
Aspect Ratio: 16: 9
Backlight: LED

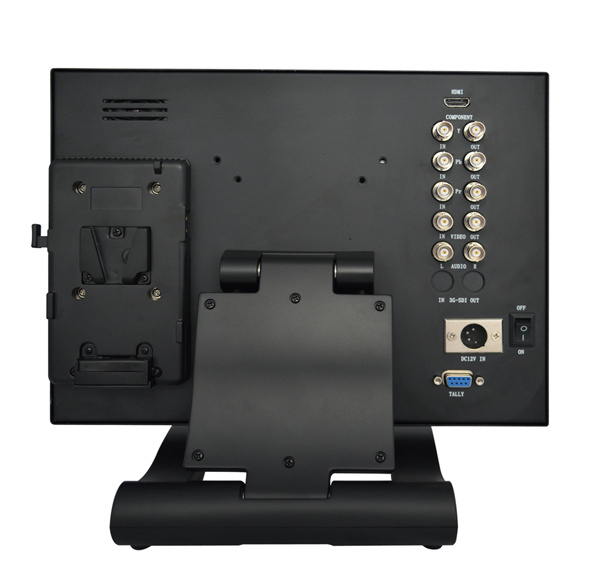

Inputs: SDI, HDMI, Component, Video, Audio
Outputs: SDI, Component, Video, Audio
Viewing Angle: 45° , 45° (R, L), 20° , 40(U, D)
Input Voltage: DC12V± 15%
Power Consumption: ≤ 23W
WorkingTemperature: -20-60
Storage Temperature: -30~70

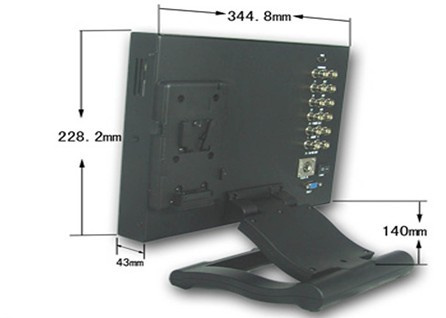

Unit Size: 344.8*228.2*43(mm)
Unit Weight: 2.3KGS
|
SDI Support Mode |
|
NO. |
Resolution |
Catalogue |
|
1 |
1080P@60HZ/59.94HZ |
3G-SDI |
|
2 |
1080P@50HZ |
3G-SDI |
|
3 |
1080I@60HZ/59.94HZ |
HD-SDI |
|
4 |
1080I@50HZ |
HD-SDI |
|
5 |
1080P@30HZ/29.97HZ |
HD-SDI |
|
6 |
1080P@25HZ |
HD-SDI |
|
7 |
1080P@24HZ |
HD-SDI |
|
8 |
720P@60HZ/59.94HZ |
HD-SDI |
|
9 |
720P@50HZ |
HD-SDI |
|
10 |
720P@30HZ/29.97HZ |
HD-SDI |
|
11 |
720P@25HZ |
HD-SDI |
|
12 |
720I@24HZ/23.97HZ |
HD-SDI |
|
13 |
480I@60HZ/59.94HZ |
SD-SDI |
|
14 |
576I@50HZ |
SD-SDI |
|
15 |
PAL |
SD-SDI |
|
16 |
NTSC |
SD-SDI |
