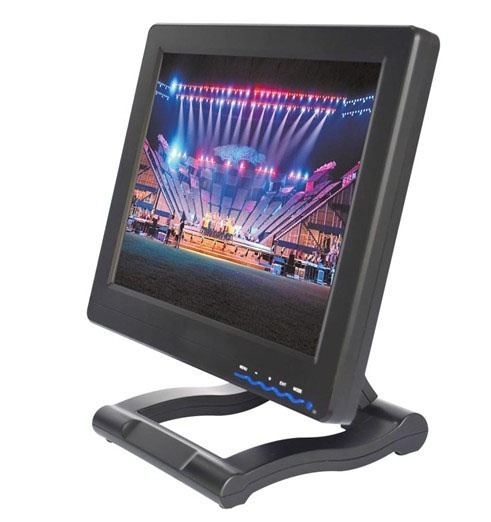

12.1" On-Camera 3G-Sdi LCD Monitor for Photograh and Broadcasting
Advanced Features:
* Peaking Filter (Focus Assist)
* Pixel-to-Pixel Mode
* Image Multiplication, Image Freeze
* Picuture in Picture
* Image Flip
* Under Scan
* H/V Delay
* Screen Markers 80%, 85%, 90%, 93%, 96%
* Tally Red/Green Color
* Check Field(Red\Green\Blue\Black and White or Color)
* 3G/HD/SD-SDI Input, HDMI input, Component input, Composite Input
* 3G/HD/SD-SDI Output, YPbPr output, Video Output,
* 1 Earphone jack in the front panel in addition to a built-in speaker.
Specifications:
Model Number: P121-3HSD
Screen Size: 12.1 inch
Resolution: 800x600
Aspect Ratio: 4: 3
Contrast Ratio: 900: 1
Brightness: 330CD/m2
Backlight: LED
Input Signals: 3G/HD/SD-SDI, HDMI, Component, Composite
Outputs: 3G/HD/SD-SDI, Component, Composite, speaker
Viewing Angle: 40° /40° (L/R), 10° /30° (U/D)
Power Consumption: Less than 23W
Input Voltage: DC6-14V
Working Temperature: -20 º C to 60 º C
Storage Temperature: -30 º C to 70 º C
Unit Size: 344.8(L)x 228.2(W)x43(H)mm
Unit Weight: 2.5KG
SDI Support Mode |
NO. |
Resolution |
Catalogue |
1 |
1080P@60HZ/59.94HZ |
3G-SDI |
2 |
1080P@50HZ |
3G-SDI |
3 |
1080I@60HZ/59.94HZ |
HD-SDI |
4 |
1080I@50HZ |
HD-SDI |
5 |
1080P@30HZ/29.97HZ |
HD-SDI |
6 |
1080P@25HZ |
HD-SDI |
7 |
1080P@24HZ |
HD-SDI |
8 |
720P@60HZ/59.94HZ |
HD-SDI |
9 |
720P@50HZ |
HD-SDI |
10 |
720P@30HZ/29.97HZ |
HD-SDI |
11 |
720P@25HZ |
HD-SDI |
12 |
720I@24HZ/23.97HZ |
HD-SDI |
13 |
480I@60HZ/59.94HZ |
SD-SDI |
14 |
576I@50HZ |
SD-SDI |
15 |
PAL |
SD-SDI |
16 |
NTSC |
SD-SDI |
Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.
Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.
Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.
We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
