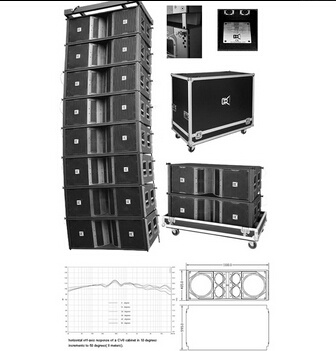

The W-8 is a line array system which is made of two 12" neodymium woofers, four 6.5" midrange speaker units, two 3" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi-speaker combined to produce accurate directivity and maximum dynamic impact. Its midrange speaker units are beset in treble horn board and two waves guide plates are set in between to eliminate its interfere. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-8 is a 3-way, full range system and may be used without subwoofers for many applications. Also it may be complemented by ground stacked subwoofer CVR T-182/CV-218B, which brings superb line array performance to large stadiums, big outdoor concerts, commercial events, etc.
Model
W-8
Type Line array system
Frequency Response
52Hz-20KHz± 3dB
Power handling LF 2× 600W(RMS)2× 1200W(PEAK)
MF 600W(RMS)1200W(PEAK)
HF 200W(RMS)400W(PEAK)
Sensitivity LF 104dB(1W@1M)
MF 107dB(1W@1M)
HF 111dB(1W@1M)
Max@S. P. L LF 135dB(PEAK/1M)
MF 135dB(PEAK/1M)
HF 134dB(PEAK/1M)
LF section 2× 12" (310mm)neodymium woofer
75mm(3in) coil
Nominal impedance 8 ohm
MF section 4× 6.5" (170mm)neodymium MF
50mm(2in)coil
Nominal impedance 8 ohm
HF section 2× 3"neodymium compression driver
With 75mm titanium diaphragm
Nominal impedance 16 ohm
Output section 3-channel
Dispersion pattern 110° H× 7.5° V
Finish Water-proof, wear-resistant textured black paint
Array design Arrays of less than 3× W-8 will
Provide poor dispersion control and
Are neither recommended nor supported
Speaker cables LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Rigging system Please refer to the W-8 user
Manual before any operation
Input connectors 2× Neutrik NL8
Recommend crossover LF 60Hz-600Hz
MF 600Hz-1.8kHz
HF 1.8kHz-20KHz
Dimensions 1100× 405× 595mm(W× H× D)
Package dimensions 1170× 475× 665mm/0.37cbm
Enclosure Birch Plywood
Net weight 60kg
Gross weight 64kg
