Price: | US $ 1-100Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 10Pieces |
Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |

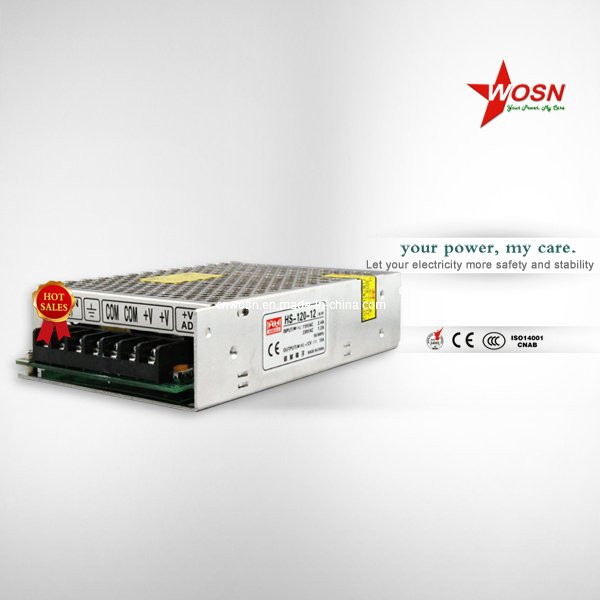

Prod Model: | HS-120-12 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Voltage: | 12V |
Output Frequency: | 47~63Hz |
Output Current: | 0-10A |
Color: | Metal |
Power Supply Type: | Compact Single |
Protection: | Short Circuit/Over Load/Over Voltage |
OEM: | Accept |
Keywords: | Switching Power Supply |
Output Type: | Single |
Output Power: | 101 - 200W |
Voltage Regulating Mode: | Frequency Modulation Type |
Connection Mode: | Series Switching Power Supply |
Starting Mode: | Self-excited Switching Power Supply |
Warranty: | 2 Years |
Power Supplying System: | Terminal Power Distribution Equipment |
Certification: | ISO |
Input Voltage: | 85~132VAC/176-264VAC Selected by Switch 47~63Hz;24 |
Model Specification |
HS-120-5 |
HS-120-12 |
HS-120-24 |
DC output voltage |
5V |
12V |
24V |
Output voltage range(Note:2) |
±1% |
±1% |
±1% |
Rated output current |
20A |
10A |
5A |
Output current range |
0-20A |
0-10A |
0-5A |
Wave and noise(Note:3) |
100mvp-p |
100mvp-p |
100mvp-p |
Inlet stability(Note:4) |
±0.5% |
±0.5% |
±0.5% |
Load stability(Note:5) |
±0.5% |
±0.5% |
±0.5% |
DC output power |
100w |
120w |
120w |
Efficiency |
78% |
81% |
84% |
Adjustable range for DC voltage |
4.5~5.5v |
10.5~13.2v |
21.5~27v |
AC input voltage range |
85~132VAC/176-264VAC selected by switch 47~63Hz;248~370VDC |
||
Input current |
2.4A/115V/ 1.2A/230V |
||
AC Inrush current |
20A/115V 40A /230V |
||
Leakage current |
<3.5mA/240VAC |
||
Overload protection |
105%~150% Type:pulsing hiccup shutdown Reset:auto recovery |
||
Over-voltage protection |
115%~135% Type:pulsing hiccup shutdown Reset:auto recovery |
||
High-temperature protection |
>=80 0 C~85 0 C,Cut off output(5~15V)~(24~48V) |
||
Temperature coefficient |
±0.03%/ 0 C(0~50 0 C) |
||
Setup,rise,hold up time |
200ms,100ms,20ms |
||
Working temperature and humidity |
-10 0 C~+60 0 C(Refer to output derating curve),20%~90%RH |
||
Store temperature and humidity |
-20 0 C~+85 0 C,10%~95%RH |
||
Overall dimension |
159*98*38mm |
||
Weight/packing |
0.45kgs, 30pcs/19KG |
||
Safety standards |
Design refer to UL 1950 |
||
EMC standards |
Desgn refer to FCC Part15J classA |
||
|
