Product Specifications
Prod Model: |
WE67K-125x2500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
CNC Bending Machine: |
CNC Press Brake |
Valve Brand: |
Rexroth |
Nc System: |
Delem Da52 |
Servo Motor: |
Estun |
Compensation System: |
Crown Table |
Application: |
Machinery & Hardware |
Type For Cutting Machine: |
Hydraulic Cutting Machine |
Type For Fold-bending Machine: |
CNC Fold-bend Machine |
Product Description

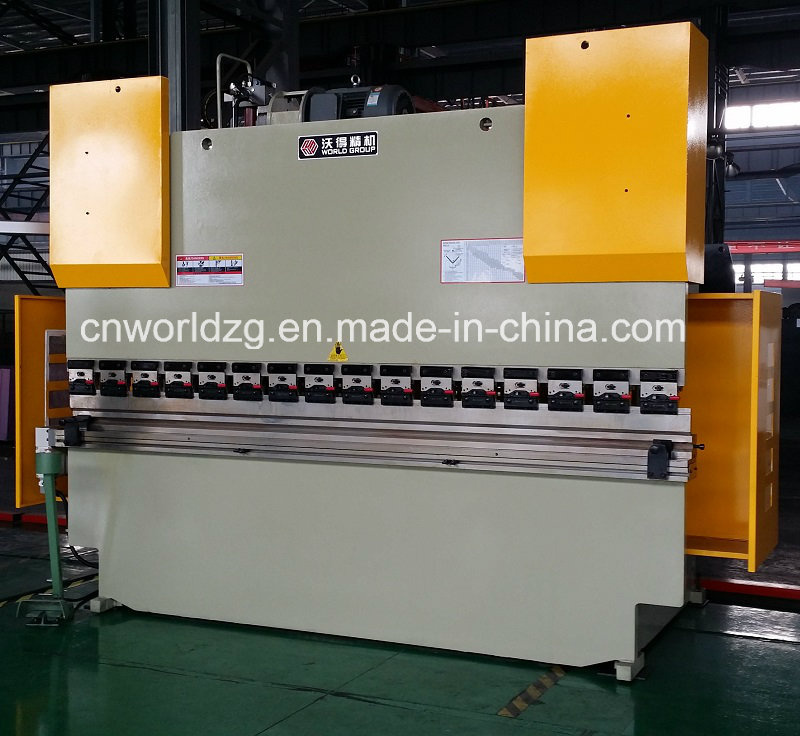

WE67K-125x2500 CNC sheet bending machine
Features:
1)Two hydraulic cylinders with electro hydraulic servo valve.
2)Deflection can be compensated by hydraulic vaulted back-off system.
3)Backgauge mechanism can control several backgauge axes.
4)Frame is welded with steel plate and is treated with annealing.
5)Hydraulic system adopts integrated control system and imported ring seals.
6)CNC system uses Delem DA-52 system.
7)Axis: Y1+Y2+X+(V)
Specifications:
Item | unit | 63/2500 | 63/3200 | 100/2500 | 100/3200 | 100/4000 | 125/2500 | 125/3200 | 125/4000 |
Nominal force | kN | 630 | 630 | 1000 | 1000 | 1000 | 1250 | 1250 | 1250 |
Length of table | mm | 2500 | 3200 | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 |
Distance between uprights | mm | 2050 | 2700 | 2050 | 2700 | 3200 | 2050 | 2700 | 3200 |
Throat depth | mm | 300 | 300 | 350 | 350 | 350 | 350 | 350 | 350 |
Ram stroke | mm | 100 | 100 | 120 | 120 | 120 | 120 | 120 | 120 |
Max. open height between ram and table | mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
Backgauge stroke | mm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
Idle speed | mm/s | 110 | 110 | 130 | 130 | 130 | 130 | 130 | 130 |
Work speed | mm/s | 14 | 14 | 10 | 10 | 10 | 10 | 10 | 10 |
Return speed | mm/s | 120 | 120 | 125 | 125 | 125 | 125 | 125 | 125 |
Main motor | kW | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
Overall dimension ( LxWxH ) | mm | 2750 | 3300 | 2750 | 3700 | 4150 | 2750 | 3300 | 4150 |
1600 | 1600 | 1750 | 1570 | 1750 | 1750 | 1750 | 1750 |
2450 | 2650 | 2700 | 2550 | 2750 | 2650 | 2750 | 2800 |
Weight | kg | 6000 | 6600 | 8300 | 9500 | 11000 | 8800 | 10500 | 12000 |
Item | unit | 160/2500 | 160/3200 | 160/4000 | 200/2500 | 200/3200 | 200/4000 | 250/2500 | 250/3200 |
Nominal force | kN | 1600 | 1600 | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 |
Length of table | mm | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 | 2500 | 3200 |
Distance between uprights | mm | 2050 | 2700 | 3200 | 2050 | 2700 | 3200 | 2050 | 2700 |
Throat depth | mm | 350 | 350 | 400 | 400 | 400 | 400 | 400 | 400 |
Ram stroke | mm | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 |
Max. open height between ram and table | mm | 450 | 450 | 450 | 520 | 520 | 520 | 520 | 520 |
Backgauge stroke | mm | 500 | 500 | 600 | 500 | 500 | 500 | 500 | 500 |
Idle speed | mm/s | 120 | 120 | 120 | 110 | 110 | 110 | 110 | 110 |
Work speed | mm/s | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Return speed | mm/s | 115 | 115 | 115 | 110 | 110 | 110 | 110 | 110 |
Main motor | kW | 11 | 11 | 11 | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 |
Overall dimension ( LxWxH ) | mm | 2750 | 3300 | 4150 | 2750 | 3300 | 4150 | 2750 | 3300 |
1800 | 1800 | 1800 | 2000 | 2000 | 2000 | 2000 | 2000 |
2650 | 2750 | 2800 | 2800 | 2910 | 2950 | 2850 | 2930 |
Weight | kg | 9600 | 11800 | 13200 | 10000 | 14500 | 16000 | 12800 | 15000 |
Item | unit | 250/4000 | 320/3200 | 320/4000 | 400/3200 | 400/4000 | 400/5000 |
|
|
Nominal force | kN | 2500 | 3200 | 3200 | 4000 | 4000 | 4000 |
|
|
Length of table | mm | 4000 | 3200 | 4000 | 3200 | 4000 | 5000 |
|
|
Distance between uprights | mm | 3200 | 2700 | 3200 | 2700 | 3200 | 4000 |
|
|
Throat depth | mm | 400 | 400 | 400 | 400 | 400 | 400 |
|
|
Ram stroke | mm | 250 | 250 | 250 | 300 | 300 | 300 |
|
|
Max. open height between ram and table | mm | 520 | 550 | 550 | 570 | 570 | 570 |
|
|
Backgauge stroke | mm | 500 | 500 | 500 | 500 | 500 | 500 |
|
|
Idle speed | mm/s | 110 | 80 | 80 | 80 | 80 | 80 |
|
|
Work speed | mm/s | 10 | 8 | 8 | 8 | 8 | 8 |
|
|
Return speed | mm/s | 110 | 85 | 85 | 85 | 85 | 85 |
|
|
Main motor | kW | 18.5 | 22 | 22 | 30 | 30 | 30 |
|
|
Overall dimension ( LxWxH ) | mm | 4150 | 3350 | 4150 | 3470 | 4270 | 5270 |
|
|
2000 | 2100 | 2100 | 3200 | 3200 | 3200 |
|
|
2980 | 3150 | 3200 | 4250 | 4370 | 4710 |
|
|
Weight | kg | 17800 | 19600 | 22200 | 24000 | 26000 | 32000 |
|
|
