Product Specifications
| Prod Model: |
NP65-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
350(L)*167(W)*178(H)Mm |
| Type: |
Lead-Acid Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
12V |
| Usage: |
Boat |
Product Description

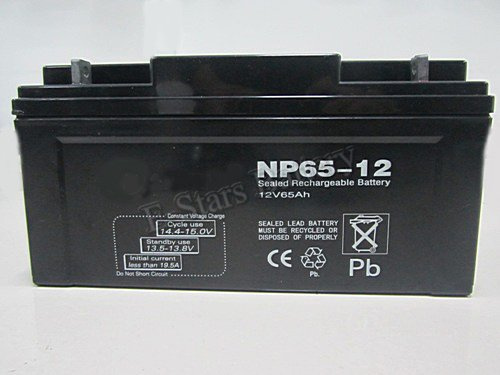

(NP65-12)Sealed Lead Acid Battery /automobile battery/ automotive battery/ car battery/ emergency battery/ cycle battery /energy battery 12V 65ah for Home Solar System from china
Main Features of lead-acid battery 12v 65ah:
* Valve regulated design with close to 100% gas recombination during float charging.
* AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.
* Maintenance-free operation - no addition of water to the electrolyte is required.
* Heavy duty grids resulting in high performance and durability.
* Wide range of operating temperatures with temperature compensated charging.
* Excellent charging efficiency.
* Classified as "non-spillable" and therefore exempt from IATA Dangerous Goods Regulations.
* Excellent cyclability properties (at normal depths of discharge), batteries may meet or exceed 1000
Discharge/charge cycles.
* Extended service life due to low self-discharge levels.
Applications of lead-acid battery 12v 65ah:
1. Telephone switchboards, electric equipments, medical equipments, medical instruments and meters
2. Computers and uninterrupted power source (UPS)
3. Power transmission and transformer station, switch control and accident lighting
4. Fire fighting, safety device and alarm monitoring
5. Aviation, spaceflight and power storage
6. Automatic office system
7. Radio communication system
8. Emergency lighting and car and ship starting system
9. Portable electric appliances and mining system
10. Solar energy systems
Type: Lead-acid battery 12v 65ah:
1. Standard: JIS/DIN Standard solar battery
2. Material: High quality lead-stibonium alloy, PP separator, pure sulphuric acid add special Additive.
3. Super starting power and long life.
4. Warranty: 12 months
5. Applications: Starting battery for solar energy systems
6. Delivery: Within 25 days after receiving deposit.
7. Packing: 1 pcs/cartons, with or without pallet
|
Capacity 25°C |
10 hour rate(6.50A, 10.80V) |
65.00AH |
|
5 hour rate(10.40A, 10.50V) |
52.00AH |
|
1 hour rate(39.00A, 9.60V) |
39.00AH |
|
Internal Resistance |
Full charged Battery at 25 °C (77°F) |
6mΩ |
|
Capacity affected by temperature (20 hour rate) |
40°C(104°F) |
102% |
|
25°C(77°F) |
100% |
|
0°C(32°F) |
85% |
|
-15°C(5°F) |
65% |
|
Self-Discharge at 25°C(77°F) |
Capacity after 3 month storage |
91% |
|
Capacity after 6 month storage |
82% |
|
Capacity after 12 month storage |
64% |
|
Charge (constant voltage) |
Cycle |
Initial Charging Currentless than 19.50A
Voltage14.40-15.00 V
|
|
Float |
Voltage 13.50-13.80V |
