12V1a AC/DC Adapter 12W Switching Power Supply
| Price: |
US $ 2.5-3/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Description
1, technical information:| Plug-In Mains Connector | EU |
| Input Condition | AC100-240V 50/60 Hz |
| Input Rated Voltage | 100Vac-240Vac |
| Input Voltage Range | 90Vac-264Vac |
| Input Rated Frequency | 50/60Hz |
| Input Frequency Range | 47Hz-63Hz |
| Input Current | 0.35A Max |
| Input Inrush Current | 30A Max |
| Rated Output Voltage & Current | 12V & 1.0A |
| Output power | 12W Maximum |
| Output Line Regulation | ± 1% |
| Output Load Regulation | ± 5% |
| Output Over Shoot | 10% Maximum |
| Output Ripple And Noise | 100mVp-p Max |
| Output Rising Time | 20ms Maximum At 115Vac |
| Output Hold up Time | 10ms Minimum At 230Vac |
| No Load Power Consumption | 0.3W Max At 115Vac/230Vac |
| Efficiency | Conform to Level V (CEC/ERP/MEPS) |
| Protection | OCP OVP OTP OLP |
| Dielectric Withstand Voltage | 3KV 5mAnbsp; 60s |
| Leakage Current | 0.25 mA At 230Vac |
| DC Plug Specification | According to the customer' s requirements |
| Operating Temperature Range | 0--40 degrees |
| Storage Temperature Range | -20--60 degrees |
2,application :
1. LED display, led strip, nixie tube, street light, lamp
2. Electrical equipment, Instrumentation
3. Digital and electronic products
4. LCD, LED, CCTV camera
5. Building lighting decoration
6. Communications and security products
3, reliability:
Fault-free time: 50, 000 hours, -25 degree celsius (according to the mil-HD-217 standard)
4,Protection- Short circuit protection
- Over voltage protection
- Over current protection
- Thermal shutdown capability
5, SAFETY APPROVALS:
- UL 60950-1,2nd Edition,2011-12-19
- UL 1310 Sixth Edition, Dated August 26,2011
- CSA C22.2 No. 60950-1-07,2nd Edition,2011-12-19
- CAN/CSA-C22.2 No.223-M91:1991
- EN 60950-1:2006+A11:2009
- EN 60950-1:2006+A11:2009+A1:2010
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011
- CE(Low Voltage Directive)
- IEC 60950-1:2005+A1:2009
- AS/NZS 60950.1:2011 Amendment 1
- PSE IEC60950
- GB4943.1-2011
| Prod Model: |
MKS-1201000EU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Level 2 Power Distribution Equipment |
| Certification: |
CB |
| Brand: |
Merryking |
MERRYKING is a Hi-Tech Enterprise involving designing, production and marketing of various kinds of electronic products such as Power Adapters, Switching Power Supplies, LED Driver, Linear Adapters and Chargers, etc. Also our products are widely applied in Digital products, Medical, Telecom, Home and IT products. MERRYKING is the registered trademark.
Our products have passed most of safety approvals in the world including UL, cUL, PSE, GS, CE, EK, SAA, CCC, C-tick, BS, CB, BSMI, etc. Also our products are widely introduced to domestic market and exported to USA, Canada, Europe, Japan, Australia, Argentina, Korea, Mexico, Singapore, Russia, etc, and established good relationship and long term cooperation with several overseas well-known brands.

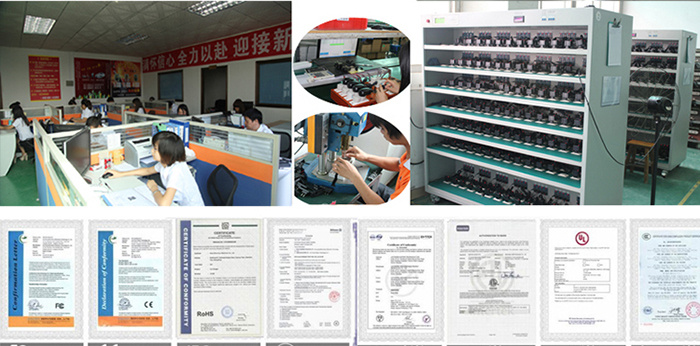

Also we pay much attention to managements, we have obtained certificates issued by CCE Italy of ISO9001: 2008 quality management system and ISO14001: 2004 Environmental management system. Merryking is highly appreciated in the field for its high grade, efficient and unique operation principle.

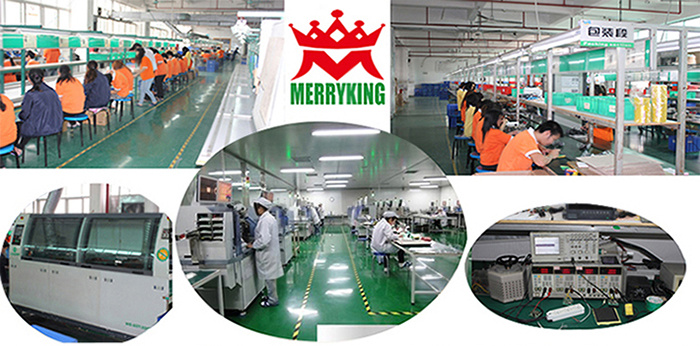

Our factory locates in Shajing, bao'an, Shenzhen, is close to The Shenzhen International Airport with feasible transportation and beautiful environment. It is equipped with advanced Lead-free Dual Wave Soldering Machine, Reflow Soldering Machine, electronic load constant temperature aging room and many kinds of sophisticated testing equipment. With scale production ability, our monthly capacity reaches over half million pieces.
MERRYKING emphasizes its staffing as our most valuable treasure, and owns a high qualified team with rich experience and strong technology. We aim at being the first class professional electronic and electric supporting factory with excellent management and work team. In accordance with our company spirit of "Quality First, Customers Foremost, Keep Improving", we stick to our company aim of "Honesty, pragmatism, innovation, initiative", and provide excellent services to all of our customers.
