MIFARE Classic®1K smart card with 1 Kbytes EEPROM read/write memory and is compatible with existing MIFARE® infrastructures. Operating in accordance with ISO 14443A, MIFARE® 1K functions at a distance of up to 10 cm with true anti-collision properties and without the need for a battery.
Smart card MIFARE Classic®1K is a great solution for access control, identification, Payments,
Transportations, NFC etc.

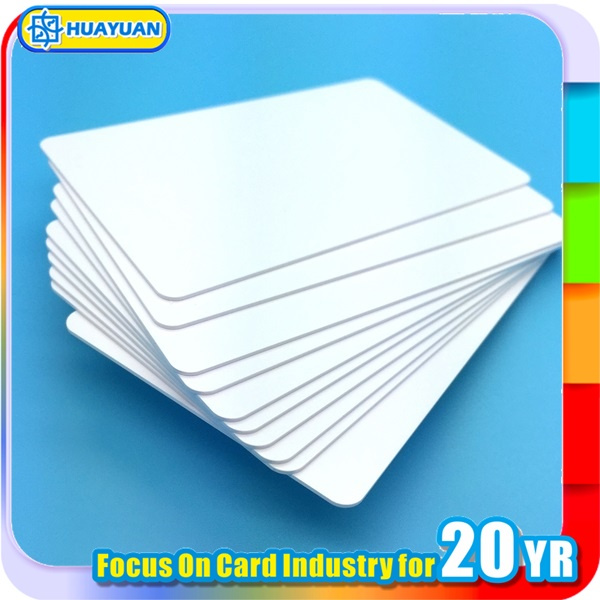

We supply blank MIFARE Classic®1K smart card and pre-printed card.
Description :
- IC manufacturer: NXP founded by Philips
- Wafer die: MF 1 IC S50
- Unique serial number (4 Byte and 7 Byte)
- Function: Read/Write protect by password
- Memory: 1K-Byte EEPROM(16 sectors)
- Frequency: 13.56MHz
- RF protocol: ISO 14443A
MIFARE Classic®1K Card Key Features:
- Card dimensions: 86 x 54mm
- Thickness: 0.84mm
- Material: PVC, PET
- Surface: lamination (gloss/mate)
- Chip: MIFARE Classic® 1K (NXP original)
- Frequency: 13.56MHz
- RF Protocol: ISO 14443A
- Data storage time: minimum 10 years
- Operating temperature: -20 to +60°C
- Stockage temperature: -20 to +65°C
- Package: 200pcs per Inner Box; 5000pcs per Carton, each Carton gross weight is 35kgs
Applications:
- Access control
- Membership Loyalty System
- Time attendance
- Hotel locks
- Payments
- Transportations
- NFC
Optional produce:
Printing:
- Logo/Graphics/Photo
- Serial Number
- DOD Number
- Barcode printing
- Overlay Foil
- Signature Panel
- Name Personalisation
- Photo Personalisation
Magstripe:
- LoCo300
- HiCo2750
- Magstripe Encoding
Various:
- Hologram
- Security Printing
- Chip Encoing
Chip available:
-MIFARE Classic®, MIFARE Utralight®, MIFARE® DESFire® 2K/4K/8K, MIFARE Plus® etc
13.56MHz MIFARE® 1k Printing PVC RFID Card
Material | PVC,PC,ABS,PET |
| Size | Stander size(credit card size):85.5*54mm or customized |
| MOQ | 500 or negotiable |
| Printing | CMYK or panton colour,offset printing/silk printing |
| Surface finishing | Glossy/matte/frosted/transparent |
| Numbering | Embossed/engraved/flat/laser printing/jet dot number |
| Craft | Scratch panel/Signature panl Magnetic strip (hi-co/loco),
encoded as requested
Gold/Silver/Laser stamping hot stamping
Printing serial number, Logo printing invisible UV printing
Barcode and QR codes, variable codes available |
| Production time | 7-8 working days ( It depends on exact quantity. ) |
| Payment terms | Western Union, T/T, paypal |
| Delivery | by express by sea or by air |
| Packing | 200pcs/box, 25boxes/carton |
| Box size: 22.5*9.3*6cm |
| Carton size: 47*23.5*30cm |
| Weight: 5000pcs 35KG |
| Application | Hotel,Bank, School, Goverment, Enterprise, hospital,supermarkets , Cinema,Games,Gift, home appliance, Leisure, Food and Beverage and other places |
|
|
|
Company Profile
When the Smart Card industry kicked off in mainland China 18 years ago, HUAYUAN electronic were at the forefront. In 1995, we began by Producing plastic magnetic cards. We are the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line. Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area.
Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
HAUYUAN had also established good and strategic partnership with many international leaders in Smart Card and RFID industry. Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products
With experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
