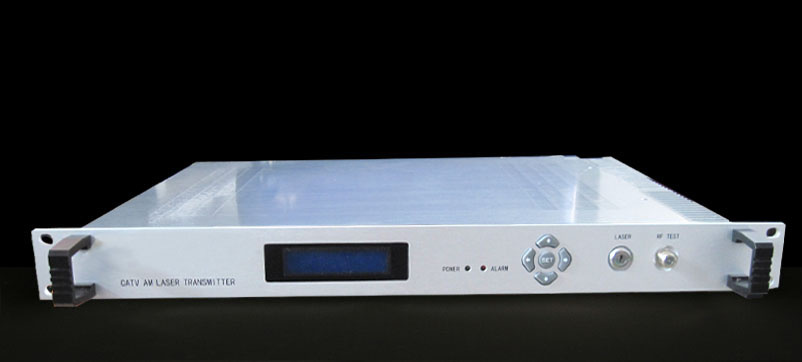

(GW-OT3000) Optical Transmitter
Features
Operating bandwidth: 47_862MHz/ 750MHz, output optical power from 4mW-24mW;
High performance DFB laser diode module with internal isolation;
Advanced pre-distortion correction circuit (PDC);
Microprocessor automatically controls output power (APC), cooling / heating current (ATC), modulation ratio (AMC);
With AGC/MGC switching button in the front panel;
Adjustable attenuator (-20~0dB) in back panel can adjust input level of laser diode;
LCD or VFD in front panel;
MPU provides real-time display of major parameter: Optical output power, operating current, internal temperature, modulation ratio, cooling / heating status;
Support computer management with RS232/RS485 communication interface;
High efficiency and stability switching power supply and optional supply backup system;
1U 19 standard case with a cooling fun and reliable thermal structure design;
Inside aluminum heat-sinking make the back panel more compact.
Specifications
Parameter
Optical parameter
Wave length(nm) 1310+-20 Output Optical Power (mW) 4-24
CNR(dB) ≥ 51 CTB (dBc) ≥ 65
CSO (dBc) ≥ 60
Connector FC/APC or SC/APC
RF parameter
Bandwidth (MHz) 47~750/862 Input Impedance (W) 75
Input Return Loss (dB) ≥ 16 (47-550MHz), ≥ 14 (550-750/862MHz)
Input Level Range 80+-5
In-band Flatness (dB) 0.75
General parameter Input voltage (V) AC 160~265
Operating Temperature -10~+50
Dimensions (mm) 485(L)*350(W)*45(H)
Parameter | Value |
Optical parameter | Wave length (nm) | 1310 ± 20 |
Output Optical Power (mW) | 2 ---24 |
Link Losses (dBm) | 3 ---13.8 |
CNR (dB) | 51 |
CTB (dBc) | 65 |
CSO (dBc) | 60 |
Connector | FC/APC |
RF parameter | Bandwidth (MHz) | 47~750 | 47~860 |
Input Impedance ( W ) | 75 |
AGC Accuracy (dB) | ± 3/ ± 0.3 |
Input Return Loss (dB) | ≥ 16 (47-550MHz), ≥ 14 (550-750/860MHz) |
Input Level Range (dBµV) | 80 ± 5 |
Level adjustable range (dB) | 0~20 |
In-band Flatness (dB) | ± 0.75 |
Level of Test Point (dBµV) | Input Level -5 |
General parameter | Input voltage (V) | AC 160~265 |
Operating Temperature | 0~+50 |
Dimensions (mm) | 432(L)×300(W)×40(H) |
Weight (kgs) | 5 |
