Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Memory: |
2GB DDR3+250g HD |
| Screen: |
14 Wide Screen 1366*768 |
| Chip: |
Atom D2500 Dual Core 1.86g |
| Special Function: |
Super Thin+Bluetooth |
| Model No: |
Bs-Nf-N145 |
| Package: |
Gift Box |
Product Description

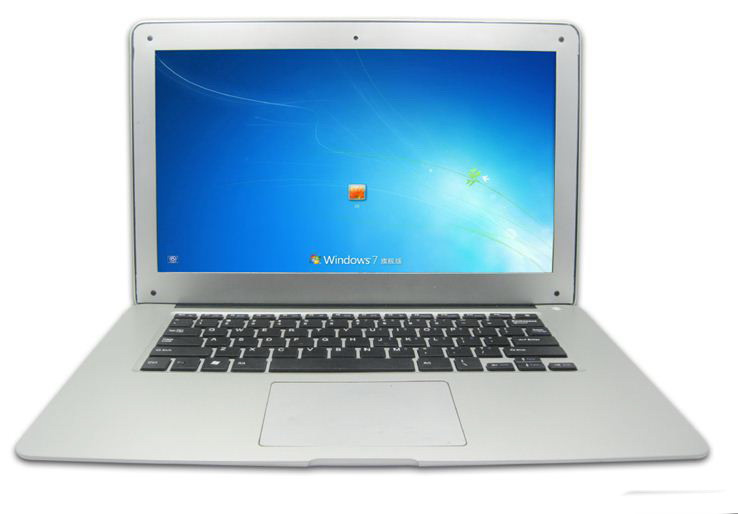

14 inch Super thin desktop portable computer PC, with Bluetooth, Built-in 3G(Option)
CPU: Intel Atom Dual care D2500 1.86G @ FSB667MHz (BGA)
Chipset: Intel NM10
Build-in WiFi: 802.11 B / G / N
RAM: 2GB DDR3 1067MHz (support upto 2GB)
Storage Device: 2.5 "SATA HDD 250G 5400rpm (supports upto 320GB)
LCD: 14.1 "WSVGA wide-screen
Resolution: 1366 * 768pixels
Super thin body design.
VGA: Intel (R) GMA3600 Chipset
Others: Built-in 1.3M pixel camera
Audio: Dual Speaker, built-in Microphone
Seperated input / output audio, which used to earphone output device and microphone input device
Bluetooth: Built-in or extra for option.
Keyboard and the Finger moving device:
83 key with 19mm key pitch and 2.5mm key stroke
Suitable for Ergonomic design which bring two buttons in a touch board
I / O device of the ports and connection:
Built-in DVD ROW desktop
2*SB 2.0 ports
1*HDMI the ports
1*Earphone jack
1*RJ45 network jack
1*DC-In jack
1*Card Reader (support for SD / MS / MMC card)
Weight and Size: About 1.4Kg (contain a battery pack)
360mm (L) x 223mm (W) x 25mm (H)
Operation environment: Temperature:
Work: 5C-35C
The Storage: -20C to 60 C
Humidity: The Work: 0% to 90% of the Storage: 0% ~ 90% of
Power Supply: AC adapter, power 40 watts of, 100-240 volts.
High-capacity lithium-ion battery 4400mAh 10.8V/30W
Operation the System: The Support the Windows 7 windows2000, windows XP, Vista, , Linux,
Specifications listed above are for the reference only.
14.1''win 7 1366*768 Laptop computer PC, Dual Core1.86GHz+2g DDR3+250g HD, Camera, Bluetooth, Super Thin,
|
BS-NF-N145 laptop computer pc Specification |
|
High Copy A p p l e M a c Air II Ultrathin pocket pc |
|
CPU |
Processor packing |
BGA-437 Pin, 22 mm*22 mm |
|
Support Processor |
Intel Atom Dual Core D2500 1.86 GHz, 1MB L2 |
|
Chipset |
Intel NM10 chipset |
|
System Memory |
DDR3: 1333MHz, 1ChannelSo-DIMMs, Max. 2GB |
|
Display |
Panel size |
14.0" TFT LCD panel 1366*768(16: 9) Backlight unit: LED |
|
Graphic |
Graphic Controller |
Integrated 3600 |
|
Graphic Memory |
384 MB Shared system memory |
|
Storage |
HDD |
2.5" , 9.5mm SATAinterface 5400rpm 250GB, Max. 500GB |
|
Audio |
Sound Codec chip |
Realtek HD Audio chip |
|
Communications |
Wireless LAN |
WLAN 802.11b. g. n. |
|
LAN |
10/100Mbps Ethernet |
|
3G Card |
Internal Mini Card Socket (Support USB2.0) and Internal SIM card socket, Internal Antennas ( for HSDPA 3G Card Optional) |
|
Bluetooth |
Built-in(Optional) |
Input Device
Keyboard |
UK/EU/JP Standard Supported |
|
Touch Pad |
Glide, with 2 buttons |
|
I/O Ports |
1x Earphone jack, 1 x RJ-45 |
|
2x USB 2.0 Ports, 1x Internal Microphone, 1x DC-In jack, 1x SIM card slot, 1 x HDMI port |
|
Expansion Slots |
Card Reader |
4 in 1 (SD/XD/MS) |
|
Build-in Web Camera |
1.3 Mega Pixels |
|
Power |
AC Adapter |
Input: 100~ 240V AC, 1.5A, 50/60Hz |
|
2.5/5.5 mm DC 19V_ _2.2A |
|
Battery |
3cell 3500mah |
Physical Characteristics
|
Dimension |
360 x 233 x 25mm (laptop itself) |
|
Weight |
2.5 kg (with all fitttings) |
|
OS |
Windows 7 desktop |
|
Special Features |
Power switch together with keyboard |
