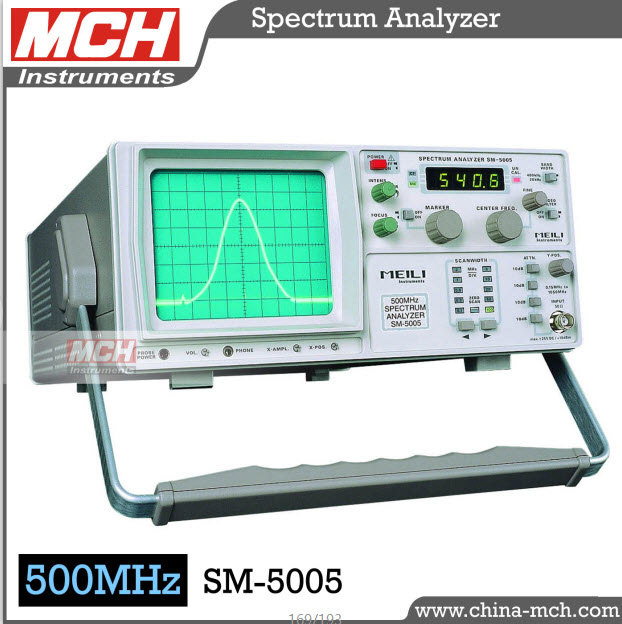

0.15~500MHz Frequency Spectrum Analyzer RF Spectrum Analyzer (SM-5005)
| Price: |
US $ 330-446/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Quick details of the spectrum analyzerPlace of Origin: Guangdong, China (Mainland)
Brand Name: MCH
Model Number: SM-5005Packaging & DeliveryPackaging Details: Standard export cartons, 3 units per carton dimension of inner carton: 500*390*240mm weigth: 8kg
Delivery Detail: In 20days to large order, supply from stocks to small orderSpecifications1. Frequency range: 0.1-500MHz (SM5011: 1050MHz)
2. Output impedance: 50 ohm
3. Output jack: BNC
4. Input capacitance: About 2PF
SM-5005/5006 spectrum analyzer is used for the early test in the development of electrical products, troubleshooting of CAT/MATV system as well as the test and trouble diagnosis of cellular phone/paging systems. Combined with the near field probes of Mz530, it can detect the missing field of radio frequency.
SM-5006 is equipped with tracing signal generator, and in the combined use if spectrum analyzer and tracing signal generator, it can complete the work which cannot be done by other frequency sweep , such as sweep generator, oscilloscope, etc.
| Input frequency response | 0.15~500MHz,3dB |
| Display accuracy of central frequency | ±200KHz(frequency sweep width +200KHz) |
| Accuracy of mark frequency | ±0.1%(frequency sweep width +100KHz) |
| Frequency display resolution | 100KHz(4 1 /2 bit LED display) |
| Frequency sweep width | 0.1MHz/div -100KHz/div with 1,2 and step system and 0Hz/div(0 frequency sweep) accuracy : ±10% |
| Intermediate frequency bandwidth | 20KHz and 400KHz |
| Video filter | (when on)4KHz |
| Amplitude range | -107~+13dB |
| Reference level | -27dB~+13dB(10dB for every step) ±2dB |
| Average noise level | -97dB(20KHz intermediate frequency width) |
| Display range of CRT screen | 80dB(10dB/div) |
| Error of vertical display | ±2dB(2 with attenuator) 250MHz signal |
| Input attenuator | 0~40dB(4×10dB step)error:+/-1dB/10Db |
| Maximum input level | +10dBm,+25V DC(input attenuator set at 0dB)
+20dBm(input attenuator set at 40dB) |
| Frequency stability | Over 150KHz/hour |
| Input socket type | BNC |
| Input impedance | 50Ω |
| Power supply | 220V/110V; ±10%;50Hz/60Hz |
| Others |
| DC output | +6V(for probe) |
| AM demodulation output | Impedance of load≥16Ω |
| Prod Model: |
SM-5005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

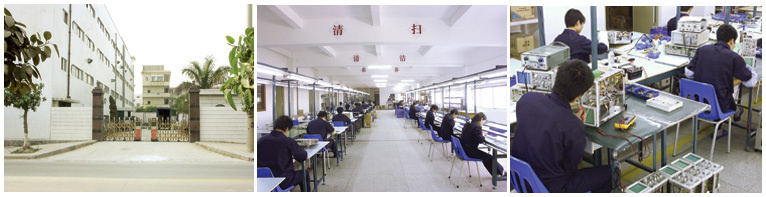

The company was found in 1995. After ten years of development, it has become strong not only in size, but also in production and R&D capability. Quality first, service utmost and economic pricing is our consistent commitment. We look forward to being your long-term partner.
We guarantee products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
1. MCH specializes in manufacturing up to hundred models of measuring instruments whole world since year 1996, such as analogue/digital Oscilloscope, arbitrary Function/Signal Generator, Spectrum Analyzer, Frequency Counter, Millivoltmeter, DC power supply, and etc.
2. All instruments will be attached necessary accessories and one year factory warranty.
3. We can produce large customized order according to customer requirement.
4. Since we are direct producer and seller, you can get fastest customer service.
5. We Promise you a profitable business and timely delivery.
