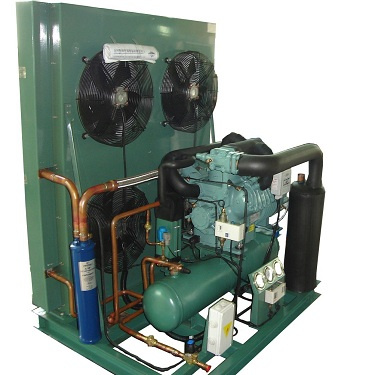

15 HP Outdoor Condensing Unit, Bitzer Air-Cooled Condensing Unit, Bitzer Double Stage
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
LB-C-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Brand Name: |
Bitzer |
| Compressor Horse Power: |
5~ 30HP |
| Voltage: |
380V/3p/50Hz or 220V/1p/50Hz |
| Certification: |
CCC |
| Condensation Forms: |
Water/Air Cooled |
| Refrigerant: |
Freon,R22 (R404A for Selection) |
Product Description
Specifications:
All models Bitzer Condensing Unit :
1. from 5~ 30hp
2. single stage,two stage
3. R22,R407C,R134A,R507a/R404A
4. Made in Germany
Bitzer Condensing Unit
Features:
1. With 100% new Bitzer semi-hermetic, two stage compressor
2. With world famous refrigerant components
3. With mid stage design to greatly improve EER value
4. With lower evaporate temp. Min. evaporate temp. can be -65ºC when system with R404A refrigerant
Key components:
Other components:
Two-stage compressor , heater , eliminator, Oil separator , Condenser, Receiver filter , sight glasses, sub cooler, Gas separator , pressure controller, Oil pressure difference controller.
Technical Datas:
1. Bitzer Two-stage Condensing Unit (Air-cooled)Unit
Model | Compre-
ssor
Model | Unit Power | Refri
Capacity | Piping
Size | Dimensions(mm) | Installation
Size(mm) |
| KW | W | Air | Liquid | L | W | H | a | b |
| S4T5.2 | S4T5.2 | 3.6 | 2820 | ø28 | ø 16 | 1050 | 880 | 580 | 800 | 835 |
| S4N8.2 | S4N8.2 | 5.0 | 3990 | ø 28 | ø 16 | 1050 | 880 | 580 | 800 | 835 |
| S4G12.2 | S4G12.2 | 7.5 | 6090 | ø 35 | ø 22 | 1050 | 880 | 700 | 800 | 835 |
| S6J16.2 | S6J16.2 | 10.5 | 9540 | ø 42 | ø 22 | 1050 | 1000 | 750 | 800 | 955 |
| S6H20.2 | S6H20.2 | 12 | 11060 | ø 42 | ø 22 | 1050 | 1000 | 750 | 800 | 955 |
| S6G25.2 | S6G25.2 | 14.5 | 12700 | ø 42 | ø 22 | 1050 | 1000 | 750 | 800 | 955 |
| S6F30.2 | S6F30.2 | 17 | 15200 | ø 42 | ø 22 | 1050 | 1000 | 750 | 800 | 955 |
PS:1,Refrigerating Capacity and Unit Power test in condition:-40ºC/40ºC(withno intercooler).
2. Bitzer Two-stage Condensing Unit (Water-cooled)Unit
Model | Compre-
ssor
Model | Unit Power | Refri
Capacity | Water flow
capacity | Piping
Size | Dimensions(mm) | Installation
Size(mm) |
| KW | W | M3/h | Air | Liquid | L | W | H | a | b |
| S4T5.2 | 4ST-5.2 | 3.02 | 3120 | 1.4 | ø 28 | ø 22 | 1050 | 920 | 580 | 800 | 875 |
| S4N8.2 | S4N-8.2 | 4.3 | 4490 | 2 | ø 28 | ø 22 | 1050 | 550 | 790 | 710 | 460 |
| S4G12.2 | S4G-12.2 | 6.43 | 6790 | 3 | ø 35 | ø 28 | 1080 | 550 | 790 | 800 | 460 |
| S6J16.2 | S6J-16.2 | 8.86 | 10460 | 4.3 | ø 42 | ø 28 | 1250 | 650 | 860 | 850 | 555 |
| S6H20.2 | S6H-20.2 | 10.3 | 12120 | 5 | ø 42 | ø 28 | 1290 | 650 | 910 | 850 | 555 |
| S6G25.2 | S6G-25.2 | 11.8 | 13920 | 5.7 | ø 42 | ø 28 | 1290 | 650 | 910 | 850 | 555 |
| S6F30.2 | S6F-30.2 | 14.1 | 16650 | 6.8 | ø 42 | ø 28 | 1290 | 650 | 910 | 850 | 555 |
PS:1,Refrigerating Capacity and Unit Power test in condition:-40ºC/40ºC
(with no inter-cooler).
Packaging & Delivery
Packaging Detail: By Sea:Export wooden package,with refrigerant oil By Air :Full-sealed wooden package, without refrigerant oil.
Delivery Detail: 3-5days
