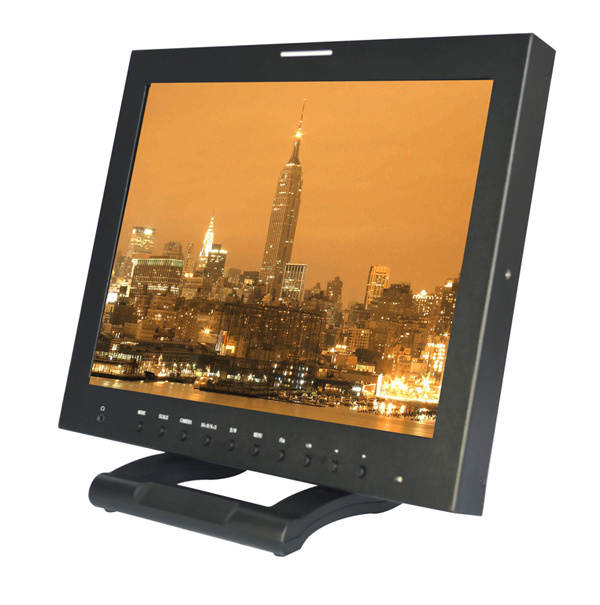

15 Inch Professional HD-SDI Monitor W/Peaking Filter Zoom Tally for Broadcasting Application
Model: P150-3HSD
Resolution 1024x768
Brightness 200CD/m²
Distance: 0.204(H)x0.204(V)mm
Contrast: 500: 1
Response Time: 16ms
Aspect Ratio: 16: 9&4: 3
Backlight: LED
Inputs: 3G/HD/SD-SDI, HDMI, Component, Composite
Outputs: 3G/HD/SD-SDI, Component, Composite, speaker
Viewing Angle: 40° /40° (L/R) 10° /30° (U/D)
Power Consumption: ≤ 8.5W
Input Voltage: DC6V-14V± 15%
Work Temperature: -20-60
Store Temperature: -30-70
Unit Size: 345Lx290Wx65H(Fold)
345Lx175Wx315H(Unfold)
Unit Weight: 3.6kgs
|
Specification |
Advanced Features |
|
Description: |
15" 4:3 Broadcast HD 3G-SDI Monitor |
*Peaking Focus Assist(peaking filter) |
|
Model: |
P150-3HSD |
*Image Multiplication&Freeze&Flip |
|
Resolution |
1024x768 |
*Picuture in Picture(PIP) |
|
Brightness |
200cd/m² |
*H/V Delay |
|
Distance: |
0.204(H)x0.204(V)mm |
*front earphone jack |
|
Contrast: |
500:1 |
*Tally Red/Green Color |
|
Response Time: |
16ms |
|
Aspect Ratio: |
16:9&4:3 |
*Check Field |
Mono,Red,Green,Blue,Off |
|
Backlight: |
LED |
*Aspect Ratio |
Dot by Dot,Panorama,Zoom1,Zoom2,4:3,Full screen |
|
Inputs: |
3G/HD/SD-SDI,HDMI,Component,Composite |
*Scan Mode |
Standard,Overscan,Underscan |
|
Outputs: |
3G/HD/SD-SDI,Component,Composite,speaker |
*screen Marker |
Off,96%,93%,90%,85% |
|
Viewing Angle: |
40°/40°(L/R) 10°/30°(U/D) |
*Power Ways |
DC XLR Power adapter |
|
Power Consumption: |
8.5W |
Sony V battery plate |
|
Input Voltage: |
DC6V-14V±15% |
Panasonic Anton battery plate |
|
Work Temperature: |
-20ºC_60ºC |
Power from DV device |
|
Store Temperature: |
-30ºC_70ºC |
Accessories |
|
Unit Size: |
345Lx290Wx65H(Fold) |
|
345Lx175Wx315H(Unfold) |
XLR Power Adapter X 1 |
|
Unit Weight: |
3.6kgs |
Mini HDMI Cable X 1 |
|
SDI Support mode: |
BNC Connector X 3 |
|
NO. |
Resolution |
Catalogue |
Tally X 1 |
|
1 |
1080P@60HZ/59.94HZ |
3G-SDI |
SDI Cable X 1 |
|
2 |
1080P@50HZ |
3G-SDI |
BNC Cable X 1 |
|
3 |
1080I@60HZ/59.94HZ |
HD-SDI |
Operation Manual X 1 |
|
4 |
1080I@50HZ |
HD-SDI |
SONY V Mount Battery Plate X 1 |
|
5 |
1080P@30HZ/29.97HZ |
HD-SDI |
Panasonic Battery Plate (optional) |
|
6 |
1080P@25HZ |
HD-SDI |
|
|
7 |
1080P@24HZ |
HD-SDI |
Terms |
|
8 |
720P@60HZ/59.94HZ |
HD-SDI |
Price Term |
FOB Xiamen,China |
|
9 |
720P@50HZ |
HD-SDI |
Payment |
T/T,Paypal,Western Union |
|
10 |
720P@30HZ/29.97HZ |
HD-SDI |
Delivery Time |
within 1 week after pay |
|
11 |
720P@25HZ |
HD-SDI |
Warranty |
1 year |
|
12 |
720P@24HZ/23.97HZ |
HD-SDI |
MOQ |
10pcs |
|
13 |
480I@60HZ/59.94HZ |
SD-SDI |
Sample is available |
|
14 |
576I@50HZ |
SD-SDI |
Packing |
|
15 |
PAL |
SD-SDI |
Box size |
|
|
16 |
NTSC |
SD-SDI |
Per box G.W. |
5kgs |
