Product Specifications
| Prod Model: |
EP-9501N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Structure: |
Not Modular |
| Network: |
HSDPA |
| Transfer Rate: |
150Mbps |
| Ports: |
≤4 |
| Firewall: |
Firewall |
| Application: |
SOHO |
| Type: |
Wireless |
Product Description

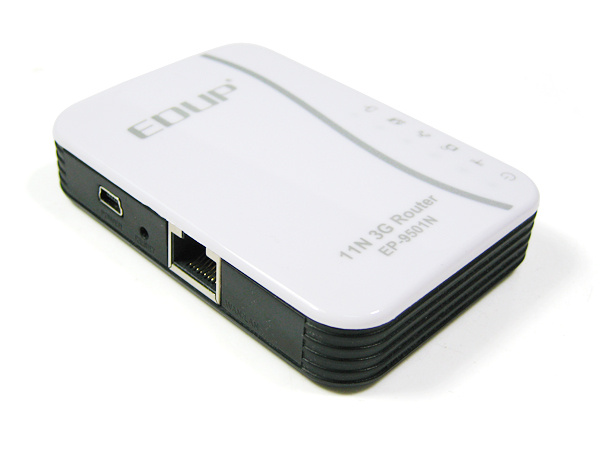

The EP-9501N is a mini size portable 3G/150M wireless router integrated access point, router and firewall, share a HSDPA/EVDO mobile connection. By plug-in a HSPA/EVDO USB modem to the router, a Wi-Fi hotspot is established instantly, allowing users to share an Internet connection somewhere 3G coverage is available.
Because supports ROUTER/AP/CLIENT-3modes selection by the hardware switch and powered by battery, so it is very suitable for travel, moving and outdoor application.
The AUTO-RUN CD can help novice user setup the router step by step to complete the Internet connection, wireless network settings and security configurations.
Features
1. Supports 64/128-bit WEP, complies with 128 bit WPA standard (TKIP/AES)
2. Supports 135/121.5/108/81/54/40.5/27/13.5/65/58.5/52/39/26/ 19.5/13/6.5/54/48/36/24/18/12/9/6/11/5.5/2/1Mbps wireless LAN Data transfer rates
3. Provides Bridge(AP/Client) mode
4. Wireless speed up to 150Mbps when connected to 11n device
5. Wireless security encryption easily at a push of "WPS" button
6. Seamlessly compatible with 802.11b and 802.11g devices
7. Internal Antenna
Specification
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal
Rates With
Automatic Fallback 11n: Up to 150Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Frequency Range 2.4-2.4835GHz
Wireless
Transmit Power 20dBm(EIRP)
Modulation Type DBPSK, DQPSK, CCK, OFDM
Receiver Sensitivity 135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
Wireless Security 64/128 bit WEPWPA/WPA2, WPA-PSK/WPA2-PSK
(TKIP/AES)
Interface 1 10/100M WAN Ports
1 USB2.0 for UMTS/HSPA/EVDO USB Modem
Antenna Type 2dBi Internal Omni-directional Antenna
Power supply Input AC100~240V, output DC/5V/1A
Operating Temperature 0° C~40° C (32° F~104° F)
Storage Temperature -40° C~70° C (-40° F~158° F)
Relative Humidity 10% ~ 90%, non condensation
Storage Humidity 5%~95% non-condensing
Weight 110g
Dimensions 88mm× 62mm× 18mm
