Features:

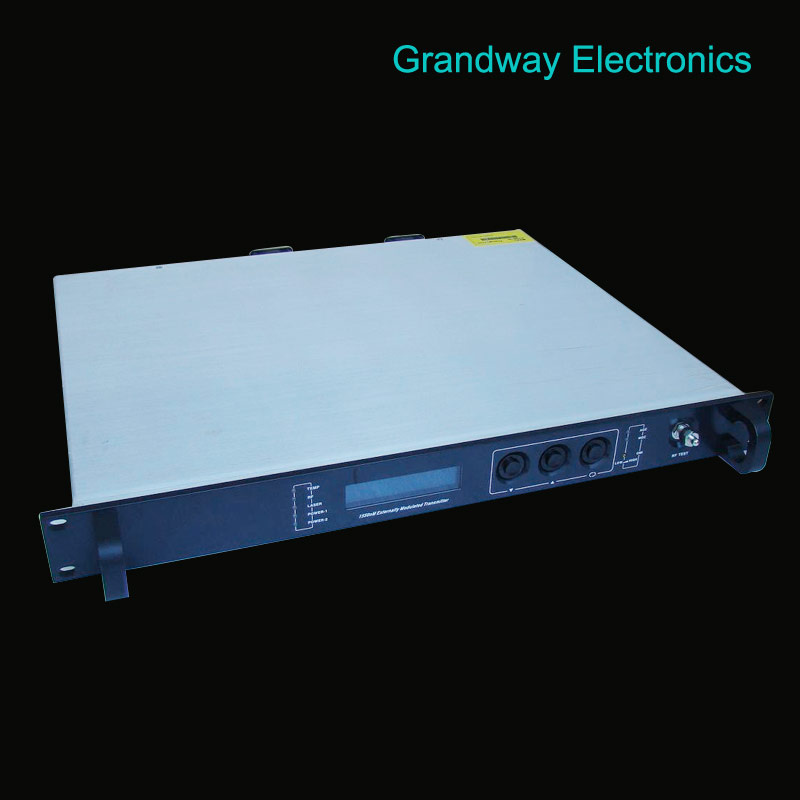

1U 19' standard case with liquid crystal display (LCD/VFD) in front panel;
Frequency bandwidth: 47_750 / 862MHz;
Output power from 4 to10mw;
Advanced pre-distortion correction circuit;
AGC/MGC;
Automatic power control (APC) and Automatic temperature control (ATC) circuit.
Parameter
| Value
|
Wave length (nm)
| 1550 ± 5
|
Output Power (mW)
| 2; 2.5; 3.2; 4; 5; 6.3; 7.9; 10
|
Link Losses (dBm)
| 3,4,5,6,7,8,9,10
|
CNR (dB )
| ≥ 53
|
CTB (dBc)
| ≥ 65
|
CSO (dBc)
| ≥ 60
|
Connector
| SC/APC or FC/APC
|
RF Parameter
Parameter
| Value
|
Bandwidth (MHz)
| 47~750
| 47~862
|
Input Impedance ( W )
| 75
|
Input Return Loss (dB)
| ≥ 14
| ≥ 12
|
Input Level Range (dBµV)
| 80 ± 5
|
Level adjustable range (dB)
| 0~20
|
In-band Flatness (dB)
| ± 0.75
| ± 1
|
Level of Test Point (dBµV)
| Similar to input level (1IC)
Input Level +12 (2ICs)
|
General parameter
Parameter
| Value
|
Input voltage (V)
| AC 80~145/ 150~260
|
Current Consumption (A)
| 0.3
|
Operating Temperature
| 0~+50
|
Dimensions (mm)
| 423(L)×330(W)×45(H)
|
