15W LED Square Panel Light

Name: 15W LED Square Panel Light
Brand: china-manufacturer-directory.com
SKU: 767429045
Availability: InStock
Rating: 4.6 (150 reviews)

Price:	US $ 11.20-11.63/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	SSL-RPL-15W-02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	50Hz-60Hz
Dimension:	190mmx190mm
Net Weight:	0.6kgs
Package:	45.533.528cm (20PCS/Box)
Light Source:	LED
Housing Material:	Acrylic
Emitting Color:	White
Dimmable:	With Dimmable
Appearance:	Square
Base Material:	Metal
Certification:	RoHS
Voltage:	220V
Beam Angle:	120°

Product Description

15 Watt Epistar 2835 SMD LED Square Panel Lighting, Embedded Panel Light Lamp

Square Panel LED light, 15 Watt 50000hours with 3 years warranty, CE RoHs certificated

Description:

Imported LGP , the light guide light rate is 80% above
Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance
The light even effect and no dark area, efficacy > 70 LM/W
Isolation constant current power supply, input voltage: AC85-265V, output voltage: DC30-40V, security better
High efficiency constant current driver can reach more than 90%,PF>0.92
Unique design, Embedded installation without the accessories
Up to 70% energy savings
CE RoHS TUV UL compliant
With 3 Year Warranty

Specifications:

Electrical / Optical Characteristics (Ta=25ºC±3ºC)

Tech Date
Model		SSL-RPL-15W-02
LED Qty		75pcs
LED Type		Epistar 2835 smd LED
LED Power		15W
LED Color		Warm white, Pure white, Cool white
Input Voltage		AC85~265V
Frequency Range		50Hz - 60Hz
Power Factor		>92
Power Efficiency		>85%
Luminous Efficiency		>70LM/W
Dimension		180x180mm
Color Temperature	WW	2700-3500K
	PW	4000-5500K
	CW	6000-7000K
CRI	WW	Ra>73
	PW / CW	Ra>78
Lumens Output	WW	1050lm
	PW	1100lm
	CW	1150lm
Beam Angle		120°
Installation		Embedded
Housing Color		Silver
Working Temperature		-20ºC ~ +40ºC
Storage Temperature		-25ºC ~ +65ºC(25ºCbest)
Life span		35000~50000hrs
Certification		CE, RoHS, FCC
Net Weight		0.6kgs
package		45.533.528cm (20pcs/box)

LED Panel light dimension (mm)

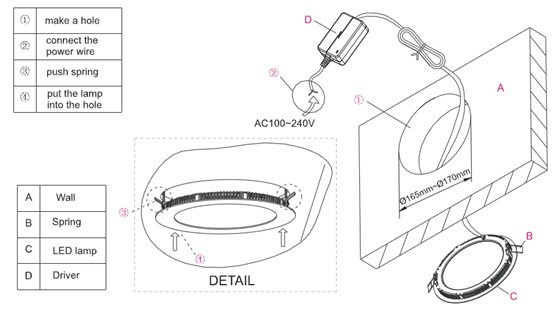

Installation Instruction:

Applications:

Widely used to office, factory, school, supermarket, warehouse, restaurant, meeting room, hotel, showing room, subway station etc.
