Product Specifications
| Prod Model: |
Q2403-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
5.5kg |
| Warranty: |
One Year |
| Module Model: |
Q2303/Q2403/Q2406/Q24plus |
| Frequency: |
850/900/1800/1900MHz |
| Interface Type: |
RS-232 |
Product Description

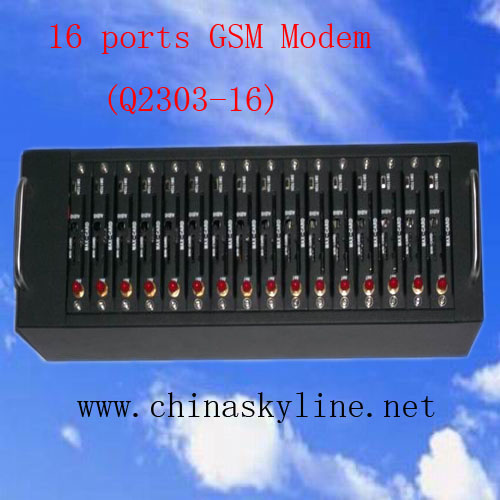

16 ports GSM modem for bulk SMS/MMS, RS232/USB interface GSM modem(Q2403-16)
The device built-in 16 wireless modules be inserted 16 SIM cards use 16 cards to send text messages. Send speed as 16 times as a single channel modem. It uses the development of WAVECOM module, 220V power supply be a long time stability, generous luxury housing. It is working compatible with windows 2008 R2, Windows 7, Vista, XP, 2006/2000, 98SE/CE, LINUX.
Key Feature:
-Just like 16 single-channel equipments work at the same time
-Insert 16 SIM cards(big or small)
-Connection with the computer through a data line be integrated with Serial 16
-Each channel with separate power switch
-Each individual module be demolished
-Industrial chassis, elegant shell
-GSM frequency: 900/1800 MHz
-16 x SIM card(big/small) slots
-Wireless access to internet
-Comply with GSM phase2 standard
-Dual-band/Quad-band(optional)
-RS-232/USB interface(optional)
-16 SIM Card supported (Big/Small)
-Optional data, voice function
-Send and receive English SMS/MMS in bulk
Basic Feature:
-Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s
-Baud Rate: 300-115200 bits / s
-Automatic baud rate: From 2400 to 19200 bits / s
-Fax support three
-Switched voice and fax
-V. 42, V. 42bis
-GPRS compatible
-Wap compatible
-SMA Antenna Interface
-SIM Card Outlet
-Power connector
-RS-232, the Mini-dB-9 connector
-AT command control ( GSM 07.07 and 07.05)
Application:
-Large shopping malls, supermarkets
-Professional market, large wholesalers
-Large hotels, large-scale entertainment
-Large agencies
-Transport, logistics industry
-Large enterprises, and institutions
-Large hospitals, large bookstore
-Newspaper, television and radio stations
-Oil Company ( other chain business model)
-Government agencies or large township
Hardware Feature:
-Support dual-band GSM: 900/ 1800 MHz
-Meet the ETSI GSM 2 + standards
-Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)
-5 -24 VDC power supply (which be directly connected to the nickel- metal
-Hydride or lithium batteries)
-Operating Temperature: -20 ° C - + 55 ° C
-Storage temperature: -25 ° C - + 70 ° C
-Size: Standard 1U chassis
Place of Origin Guangdong, China (Mainland)
Brand Name SKYLINE
Model Number SK8008
Color black
Interface Type USB
Slot 8
Transmission Rate 256Kbps
Frequency 900/1800 MHz
Type GSM/GPRS
Weight 4.5kg
Saving your time--
GSM modem 16 ports will save your time, because it's two times faster than GSM 8ports. When campared MODEL Q2403-16 with Q2303-16 you will find it has the advantage of supporting MMS not only SMS.
