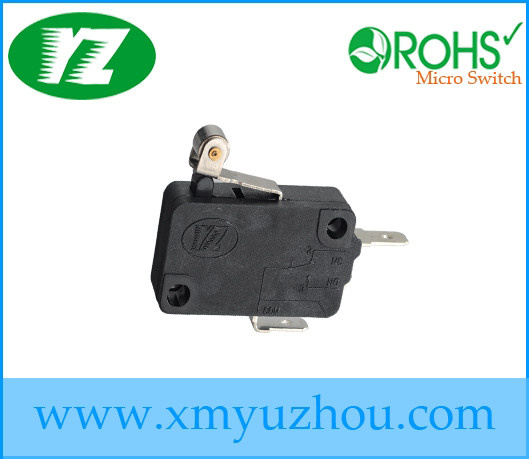

16A Sensitive Micro Switch with Roller Lever

Name: 16A Sensitive Micro Switch with Roller Lever
Brand: china-manufacturer-directory.com
SKU: 725165435
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 0.415/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Breif information of 16A sensitive micro switch
:

Micro Switch controls of "On and Off" action. It is easy to manipulate the applications. We could provide you our high quality Microswitch products. Just take one simple action, you can set up all your electronic equipment. All our micro switches are activated by leaver or button. If you like some special forms, please contact us for further custom switches. We, Xiamen Universal Electronic Co., Ltd make our 16A Micro Switch to fit kinds of your max-needs.

Function and Characteristics of 16A sensitive micro switch:

*Long life, high reliability.
*Safe reliable basic switch.
*Variety of levers and connect terminals.
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Mainly used in microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.

Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian, China
Mobile: 86-15606008788
Tel: 86-592-5782488
Fax: 86-592-5664223

Item		Value
Operating Speed		0.1mm~1m/s(Related with actuator forms)
Operating Frequency		Mechanical 60 cycles/min; Electrical 30 cycles/min
Insulation Resistance		> =100 ohm(500VDC)
Contact resistance		< =30ohm(Initial value)
Test Voltage	Between terminals of the same polarirty	AC1000V, 50/60Hz, 1min
	Between current-carrying metal And ground(case), and between Each terminal and non-carrying metal parts	AC3750V, 50/60Hz, 1min
Vibration resistance		10-55Hz, 1.5mm Double amplitude
Shork Resistance		Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max OF< =0.5N: 500m/s ² (approx. 50G)max Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max OF< =0.5N: 200m/s ² (approx. 20G)max
Life Expectancy		Mechnical> =5000000 cycles Electrical> =50000 cycles
Degree of protection		IEC IP67
Degree of protection against electric shock		Class I
PTI(Tracking Resistance)		175
Ambient air temperature		125degree60%RH below(No ice and dew)
Ambient air humidity		85% Rhbelow(about +5~+35degree)
Weight		Approx. 5.95g(No lever)

Notes: Shows the operating force of no lever

1. Degree of Temperature	No Mark: T125	5. Terminal Types	A: 250 Quick-connect Terminal B: 187 Quick-connect terminal(Thick: 0.8) C: 187 Quick-connect terminal(Thick: 0.5) D: Solder/187 common terminal E: Screw terminal F: Solder terminal G: 250 Quick terminal No. 2 Y: Not standard terminal
2. Ratings	16: 16(4)A250VAC/16A125VAC 1/2HP 125/250VAC 10: 10(3)A250VAC/10A125VAC 6: 6(2)A250VAC/6A125VAC 1: 1(1)A250VAC/1A125VAC
		6. (max) Operating Force	051: 0.5N 025: 0.25N 050: 0.5N 100: 1N 150: 1.5N 200: 2N 300: 3N 400: 4N
3. Connect Forms	1A: SPDT 2A: SPST-NO 3A: SPST-NC
		7 Plunger specs	No mark: Standard Plunger A: Middle Plunger B: Long Plunger C: Abnormality Plunger ( see dirgram ) Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company)
4. Acuator forms	0: No lever A 1/1: Short lever A 2/2: Long lever A 3/3: Middle lever A 4/4: Short Roller A 5/5: Long Roller A 6/6: Arc lever A 0/0: Not standard lever Note: 1) A indicate the lever near to the Plunger, no A indicate the lever far Away from the plunger. 2) If lever is amounted besides, add letter" B" after the lever code. 3) 0 Indicate not standard lever
		8. Additional Specis Numbers Apply to:	1)When used not standard parts such as not standard terminals; 2)When Customer has particular Operating value or other requirement 3) When the case is mot black, for example, grey shows as G. Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant

Prod Model:	V-16-2A4C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Force:	0.5 N-4 N
Rated Current:	16A
Rated Voltage:	125VAC/250VAC
Certificates:	CE, CB, TUV, CQC
Pressing Type:	Lever Roller
Protection:	Dust-Proof
Size:	Small-Sized
Breaking Form:	Single Type
Brand:	Yuzhou
Application:	Home Appliances
