Product Specifications
| Prod Model: |
RV1615S-XD1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
16mm |
| Type: |
Rotary Potentiometer |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Carbon Film Resistor |
| Resistance: |
Variable Resistor |
Product Description

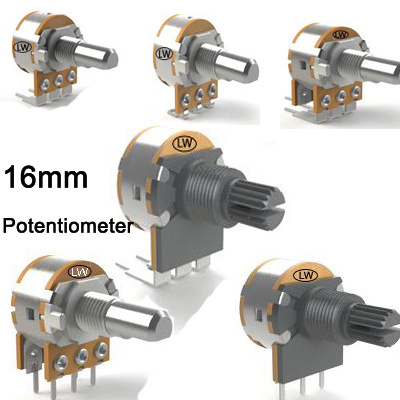

16mm rotary potentiometer with metal shaft and with switch,
Resistance range: 1K-1MΩ
Tolerance of resistance: ± 20%
Resistance taper: A B C
Power rating: 0.2W, other than B: 0.1W
Terminal resistance: 10Ω max.
Rotational noise: ≤ 100mv
Insulated resistance: More than 100M at DC 500V 1 minute
Withstanding Voltage: For 1 minute or more at AC 500V
Total Rotational Angle: 300± 5°
Operating force: 20-200gf. Cm
Pull-Push Strength: 5Kgf. Cm min
Shaft Stopper Strength: 8Kgf min
Switch Rating: 250VAC 10A
Switch Action: 100~450gf. Cm
Switch working Angle: ≤ 50°
Rotational life: 15000 cycles
