Product Specifications
| Prod Model: |
JDZ11-17.5, JDZ11-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| 17.5kv: |
Vt |
| Voltage Transformer: |
Double-Pole PT |
| Phase-Phase: |
Inatrument Transformer |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

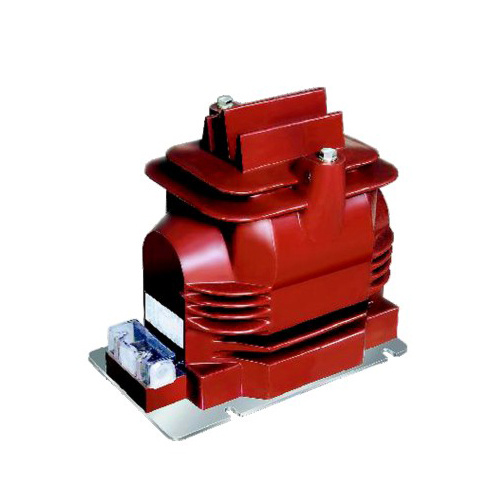

JDZ11-17.5(24) voltage transformer, epoxy resin casting and fully enclosed construction
Is used indoor for measuring current, electric energy and protective relaying the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5kV (up to 24kV)
The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free
IEC61869-1
Commpany Information:
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D,
production and sales of kinds split core current transformers, Rogowski coils,
energy meter components (CT and relay), medium voltage current transformers,
potential transformers, low voltage current transformers and switchgear components.
Work with us, a CT and relay assembly solutions provider that GE and Itron trust
Qualification:CE-,TüV- and RoHS-marked,ISO 9001:2008-certified,KEMA
Specification
| Type | Rated
Primary Voltage
(kV) | Rated
Secondary
Voltage
(kV) | Acuracy
Classes
Combination | Rated
Output(VA)
COS0=0.8 | Thermal
Limiting
Output
(VA) | Rated
Insulation
Level
(kV) |
| JDZ11-17.5 | 13.80
15.00 | 0.11 | 0.2 | 25 | 600 | 17.5/38/95 |
| 0.5 | 30 |
| 1 | 150 |
| 0.11/0.11 | 0.2/0.2 | 15/15 | 300/300 |
| JDZ11-24 | 22 | 0.2/0.5 | 15/30 | 24/50/125 |
| 0.11/0.22 | 0.2/6P(3P) | 15/600 | 600 |
| 0.5/6P(3P) | 25/600 |
Note:Upon request we are glad to offer transformers according to other technical specs.
