Product Specifications
| Prod Model: |
PC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Housing Material: |
Aluminum Alloy |
| Touch Panel: |
Mapletouch Resistive Touch |
| Expand Function: |
Built in WiFi |
| Color: |
Black, White |
| Certification: |
FCC |
| Printer: |
Thermal |
| Touch Screen: |
Touch Screen |
| System: |
Windows |
| Type: |
Hand Held |
| CPU: |
Intel |
Product Description

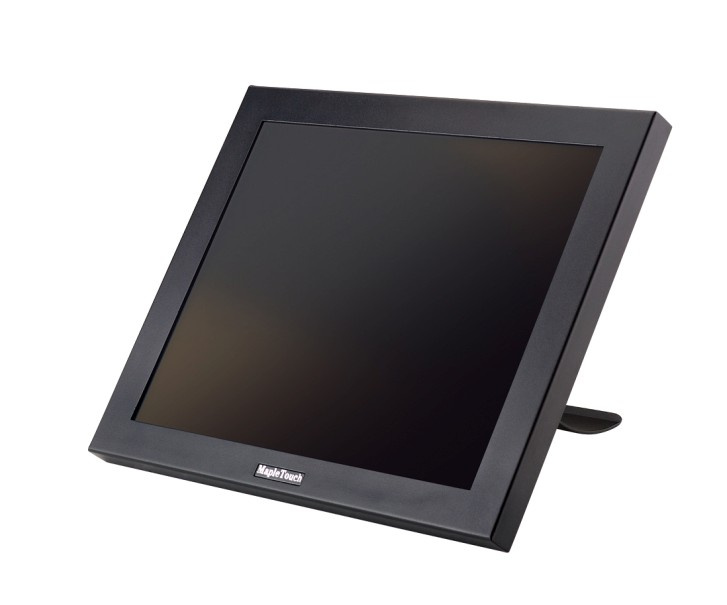

10.4--22inch industial all-in-one touch pc
desktop or wall mounting
single touch and muti-touch
stable motherboard
|
Main Board |
|
|
CPU(GHz) |
Intel Celeron 1037U 1.8Ghz Dual Cores CPU |
|
Chipset |
Intel NM70 Mobile Chipset |
|
Motherboard |
Industrial stable MP-1037U |
|
System Memory (DDRIII) |
2G (can update 4G) |
|
OS Support |
Win XP, Win Vista, Win 7, WEPOS, Linux(test version) |
|
Display |
|
|
TFT LCD |
15" |
|
Brightness |
250 cd/ m2 |
|
Contrast Ratio |
600:1 |
|
Color Resolution |
16.7M |
|
Resolution |
1024x768 |
|
Touch Screen |
mapletouch 5wire resistive (USB/RS232 Optional) |
|
Tiliting Angle(degree) |
15-90 |
|
Storage Device |
|
|
Hard disk(GB) |
2.5" SSD 32G(optional 320G,SSD 16G) |
|
Back Panel I/O Ports |
|
|
|
1*DC12V Power in connector |
|
|
4*USB 2.0 Ports |
|
|
1*HDMI Port |
|
|
1*VGA Port |
|
|
1*RJ45 LAN Port |
|
|
1*MIC-IN, 1*Line-out |
|
Work Environment |
|
|
Operating temperature/humidity |
-10~60 /20-85% |
|
Storage Temperature |
-30~80 |
|
Others |
|
|
Power input/output |
100-240VAC~50-60HZ 1.5A/ 12V 5A MAX (adaptor) |
|
housing material |
Aluminium alloy |
|
Installation mode |
Desktop,wall mounted |
|
Color |
Black (Optional White) |
|
Certifications |
CE, FCC, CCC, RoHS,CB |
|
Weight (Kg)/Dimension |
8kg/368*283*55mm |
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
