Price: | US $ 13.80-14.30/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 10/Piece |
Pay Type: | L/C,T/T,Paypal,Western Union |
Prod Model: | SSL-RPL-18W-01 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency Range: | 50Hz-60Hz |
Dimension: | 145mmx20mm |
Net Weight: | 0.7kgs |
Package: | 47.5*33.5*29cm (20PCS/Box) |
Light Source: | LED |
Housing Material: | Acrylic |
Emitting Color: | White |
Dimmable: | With Dimmable |
Appearance: | Round |
Base Material: | Metal |
Certification: | RoHS |
Voltage: | 220V |
Beam Angle: | 120° |
SMD 2835 LED Panel Light, Diameter 205mm 18W, LED Ceiling Panel Lighting Fixture
Description:
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date |
| |
Model | SSL-RPL-18W-01 | |
LED Qty | 90pcs | |
LED Type | Epistar 2835 smd LED | |
LED Power | 18W | |
LED Color | Warm white, Pure white, Cool white | |
Input Voltage | AC85~265V | |
Frequency Range | 50Hz - 60Hz | |
Power Factor | >92 | |
Power Efficiency | >85% | |
Luminous Efficiency | >70LM/W | |
Dimension | 205mm x H20mm | |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K | |
CW | 6000-7000K | |
CRI | WW | Ra>73 |
PW / CW | Ra>78 | |
Lumens Output | WW | 1250lm |
PW | 1300lm | |
CW | 1350lm | |
Beam Angle | 120° | |
Installation | Embedded | |
Housing Color | Silver | |
Working Temperature | -20ºC ~ +40ºC | |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) | |
Life span | 35000~50000hrs | |
Certification | CE, RoHS, FCC | |
Net Weight | 0.7kgs | |
package | 47.5*33.5*29cm (20pcs/box) |

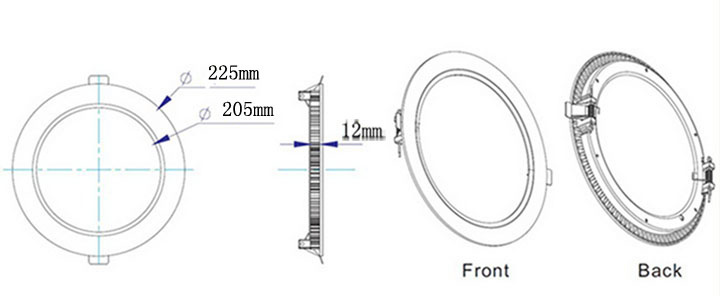

LED Panel light dimension (mm)
Installation Instruction:
Applications:
Widely used to office, factory, school, supermarket, warehouse, restaurant, meeting room, hotel, showing room, subway station etc.
